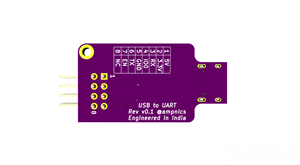

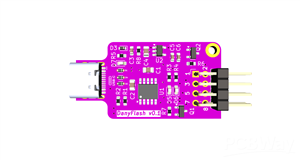

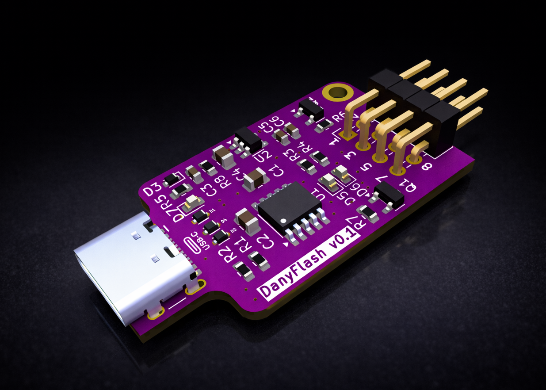

This project introduces a compact and cost-effective USB-to-UART converter built around the CH340K USB-to-Serial IC, designed specifically for programming and debugging popular microcontrollers such as ESP32, STM32, and Arduino boards. With a modern USB-C interface and selectable logic levels, it serves as a reliable everyday tool for embedded development and IoT prototyping.

At its core, the CH340K provides stable and widely supported USB-to-serial communication, making it ideal for flashing firmware, monitoring logs, and debugging UART-based systems. The board supports both 3.3 V and 5 V output levels, selectable via a simple jumper, ensuring compatibility with a wide range of target devices without the need for external level shifters.

The hardware design emphasizes usability and robustness. TX and RX status LEDs give instant visual feedback during data transmission, which is especially helpful when troubleshooting connections. An onboard USB-C connector ensures compatibility with modern laptops and desktops, while filtering capacitors and ESD protection improve reliability during repeated plug-and-unplug cycles. Despite its small size, the module is designed to be breadboard-friendly, making it easy to integrate into quick prototypes or test setups. Clear pin labeling allows straightforward connection of TX, RX, GND, and power lines to the target microcontroller.

From a development standpoint, getting started is simple. After connecting the USB-C cable and selecting the appropriate voltage level, the module can be used immediately with common tools such as the Arduino IDE, PlatformIO, or PuTTY. On some Windows systems, installing the CH340 driver may be required the first time, after which the board functions like any standard serial interface.

This USB-to-UART converter is well suited for microcontroller programming, UART debugging, embedded system testing, and serial communication in IoT projects. Overall, this CH340K-based USB-to-UART module is a small but essential tool, combining simplicity, modern connectivity, and dependable performance for daily embedded development work.

Credit & Acknowledgement

Complete Design & Engineering Credit: Ampnics (This project is shared for educational and community reference purposes)
