# Iambic Controller Custom Hardware

### (Morse Code Keyer Hardware Interface)

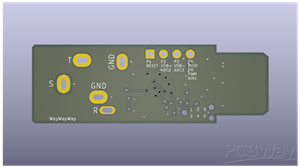

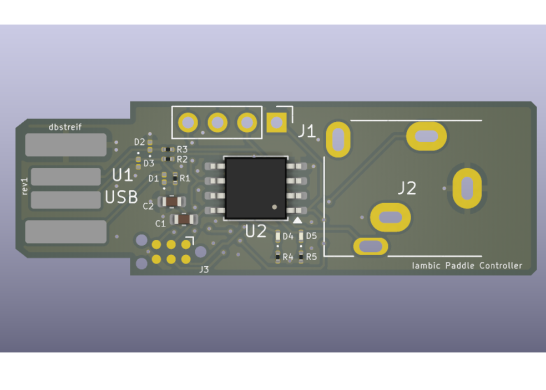

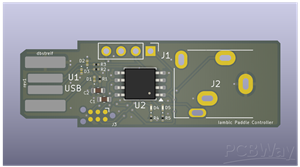

A specifically designed PCB using ATtiny85 microcontroller that interfaces with an iambic CW keyer over TRS to USB.

This project provides hardware for the firmware project found here: [Iambic-Controller](https://github.com/dbstreif/iambic-controller)

To build and install on your microcontroller, please use the Arduino IDE with the Digistump additional boards manager:

[Digistump Additional Boards Manager](https://raw.githubusercontent.com/digistump/arduino-boards-index/master/package_digistump_index.json)

### Compatibility

Plug and play with VBand, MorseIT (IOS/Android), MorseKeyer Software (PC), and many other applications.




Shield: [![CC BY 4.0][cc-by-shield]][cc-by]

This work is licensed under a

[Creative Commons Attribution 4.0 International License][cc-by].
