Description
RIP-Felix PS3 Tantalizer
Replacement for PS3 NEC/TOKINs
This fix is for syscon error 1001 or 1002 only.
For early models such as CECHA-CECHH, you might need up to 4 Tantalizers.
For later models (CECHL onwards to CECH-200x), I usually just need 1.
However, if you want to be safe, you can order 8.
Always check the syscon log before attempting any fix!
- My syscon tutorial: https://youtu.be/bXu-IhiYPHE
- Felix's syscon tutorial: https://youtu.be/DdGPyv0twmM?si=8O2Broy6Qm6JL0ZB
PCB designed by RIP Felix
https://www.youtube.com/@ripfelix3020
Jan 07,2025
8,346 views
RIP-Felix PS3 Tantalizer

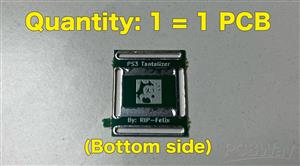

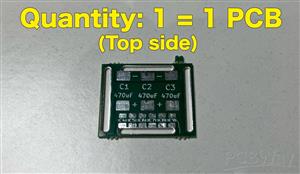

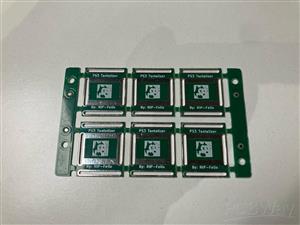

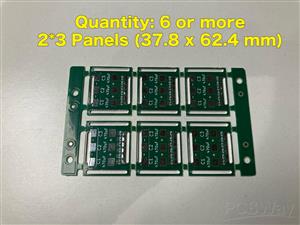

2 Layers PCB 62.4 x 37.8 mm FR-4, 0.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Replacement for PS3 NEC/TOKINs
Original creator: RIP Felix
https://www.youtube.com/@ripfelix3020
8346
37
12
10.00 (1)
Published: Jan 07,2025
Standard PCB
Download Gerber file 354
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
