# Laser Sprint BLE Photogate PCB v1.0

https://www.youtube.com/shorts/xcSnO_F-kL4

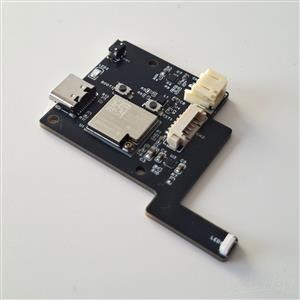

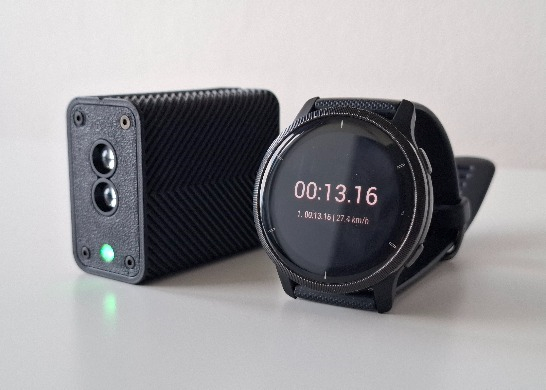

This is the custom PCB for Laser Sprint, an open-source ESP32-C3 wireless photogate timing system designed for high-precision sprint splits and real-time speed monitoring on Garmin smartwatches.

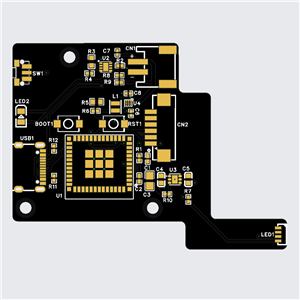

What is included on the PCB:

• ESP32-C3 Main Controller: Integrated RISC-V processor with low-latency Bluetooth Low Energy (BLE 5.0) broadcasting.

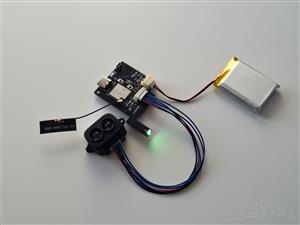

• TF-Luna LiDAR Interface: High-speed UART connector for precise ToF distance tracking.
• Power & Sleep Control: Onboard USB-C LiPo charging, power gating, and 2-second button hold for deep sleep ON/OFF.
• RGB LED Indicator: Visual feedback for USB-C battery charging, power status, and real-time LiDAR trigger detection.

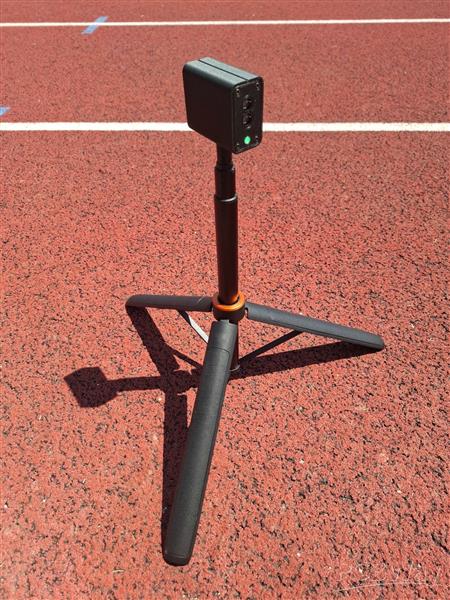

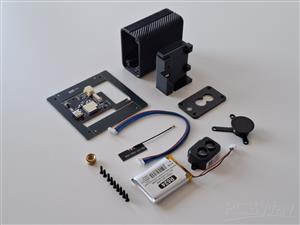

• Compact Form Factor: Custom layout designed to fit 3D-printable enclosures with standard 1/4" tripod mounts.

Current status:

Fully fabricated, assembled, and field-tested in real-world track training with Garmin devices.

Firmware and documentation:

- ESP32-C3 Firmware: https://github.com/kocyns/LaserSprint-ESP32

- Garmin Connect IQ App: https://apps.garmin.com/cs-CZ/apps/ab0dfc72-5814-4e4e-b6ab-1b04906cfc66

- 3D Enclosure STL Files: https://makerworld.com/en/models/3497843-laser-sprint

---

*This PCB design is shared for personal, non-commercial use under the CC BY-NC-SA license. Commercial production, resale, or pre-assembled sales require agreement with the author. The Laser Sprint firmware and Garmin companion app are licensed separately under open-source licenses.*
