SolidworksDassault Systems
|

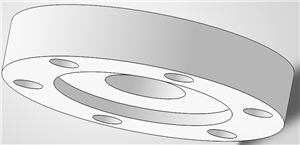

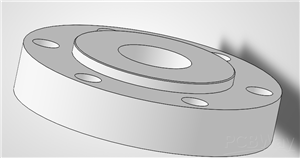

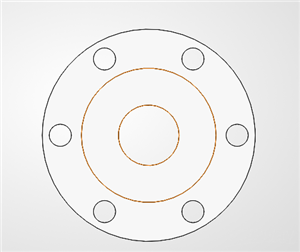

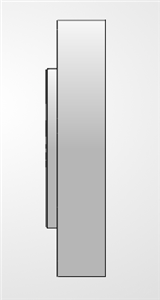

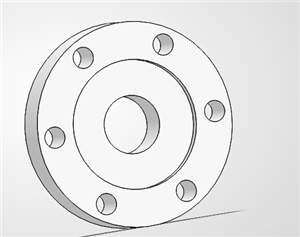

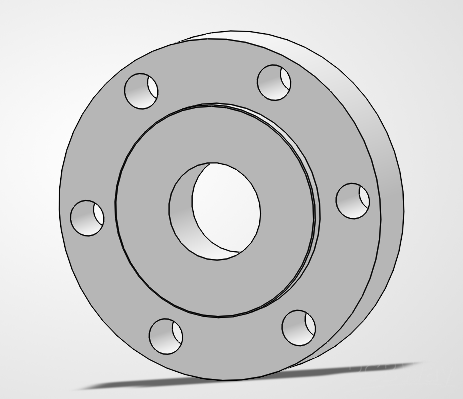

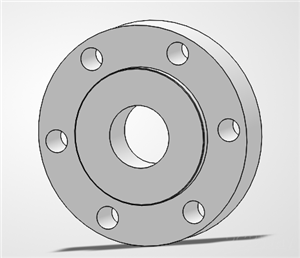

10mm brake disc spacer
Hello everybody, my name is Luciano. I am 21 years old and I designed this 10 millimeter spacer because nobody was selling them or making them. And I needed one for my own fat bike slash e-bike. And because nobody was making them, designing them, or selling them, I decided I'd do it myself. So anybody that needs a 10 millimeter spacer, go right ahead. I designed mine perfectly. I already ordered mine on PCBway out of stainless steel 304. I already got mine. I tested it myself. It has M5 screw holes, six of them, so it can fit easily on a hub motor from an e-bike to a fat bike that needs a 10 millimeter spacer. So I hope everybody can use it if needed. And because I made mine out of stainless steel 304, it can handle emergency braking of 50 kilometers an hour. So if I need to make emergency stop, it can be easily done. I hope everybody can use it if needed and having fun with their bikes or need just a spacer that's 10 millimeters. Go right ahead. I'm happy to help and I hope the community also got helped a lot with this. It was a small project I did like a week over this design. I hope everybody is happy. If not, they can always adjust it themselves. I designed it in SolidWorks, so it's a professional design studio, so I hope everybody can enjoy it as much as I want and others need.
10mm brake disc spacer
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
