Tools, APP Software Used etc.

KiCad 8.0

Description

LogicAnalyzer V6.0

Note from PCBWay: Since many customers request Pico 2 for this project, we will add Pico 2 (PN:SC1631) to the quotation BOM and install it by default. If it is not needed, please inform your sales-rep during the quotation stage.

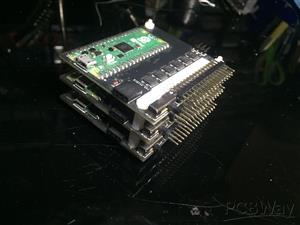

This is an affordable logic analyzer capable of reaching up to 400Mhz of sampling speed. The analyzer uses a Pico/Pico2 as its core. The analyzer offers 24 channels but can be chained up to 5 devices allowing the sampling of up to 120 channels at once.

The analyzer is meant to be used with the softweare available at https://github.com/gusmanb/logicanalyzer

It is compatible with the Sigrok protocol decoders and includes versions for Windows, Linux and MacOS.

If you need an enclosure for it, Yehor Hodovanyuk has created a pretty cool one, you can find it here: https://www.pcbway.com/project/shareproject/Enclosure_for_LogicAnalyzer_V6_0_b82ed490.html

Download Gerbers Download BOM(Bill of materials)

Feb 01,2025

62,016 views

LogicAnalyzer V6.0

Logic analyzer up to 400Mhz, up to 120 channels using chaining.

62016

180

30

10.00 (7)

Published: Feb 01,2025

Standard PCB

Download Gerber file 1589

BOM(Bill of materials)

Centroid file

PCBWay Donate 10% cost To Author

File Last Updated: 2025/02/02 (GMT+8)

File update record

2025-02-0201:29:36

Gerber file is updated.

Only PCB

PCB+Assembly

Project images are for reference only. Actual production is based on the manufacturing files on the project page. Please review the designer's notes (e.g., PCB thickness) and select the appropriate options. PCBWay is not responsible for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to Read More

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the CERN-OHL-P-2.0 License.
