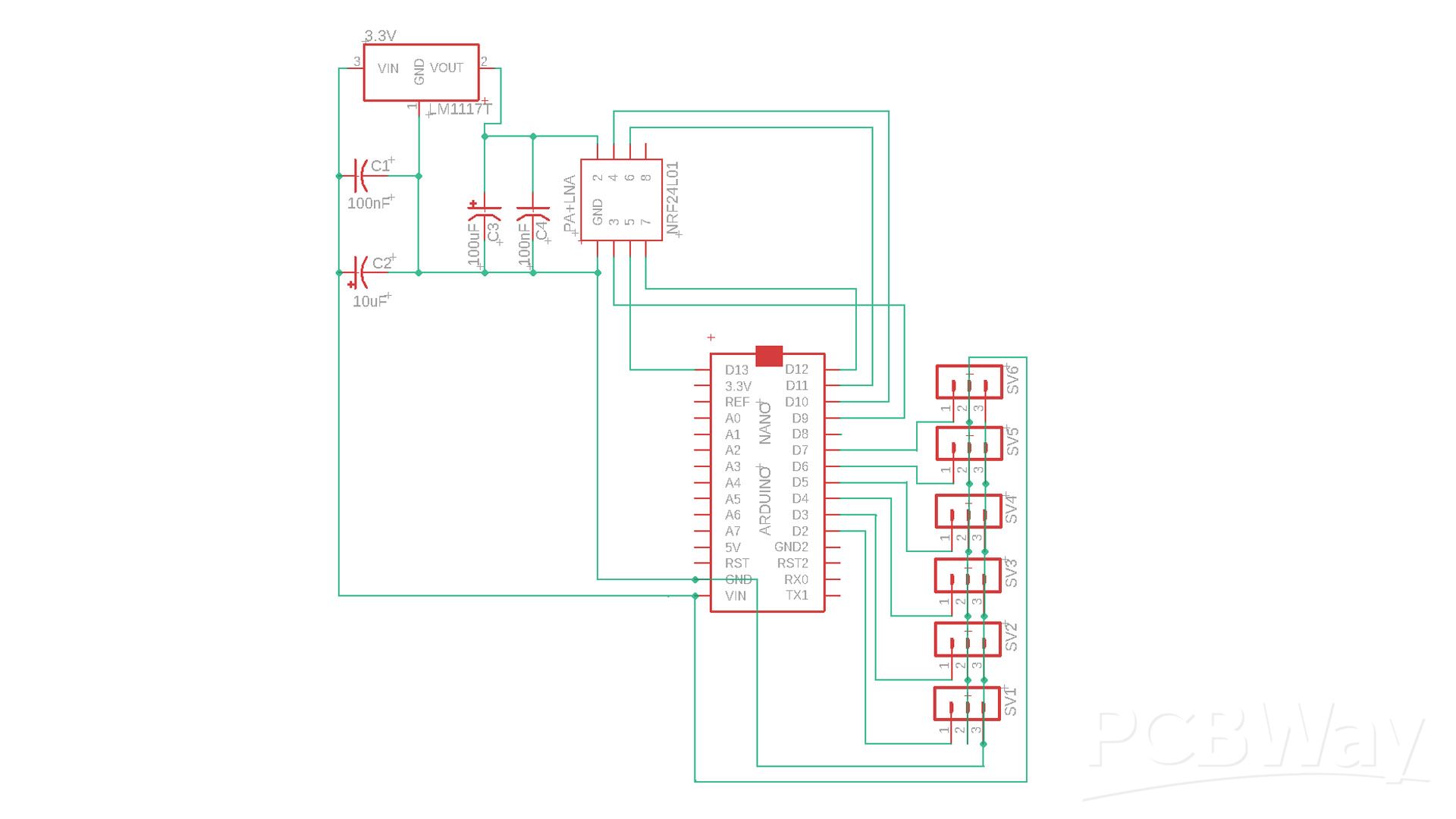

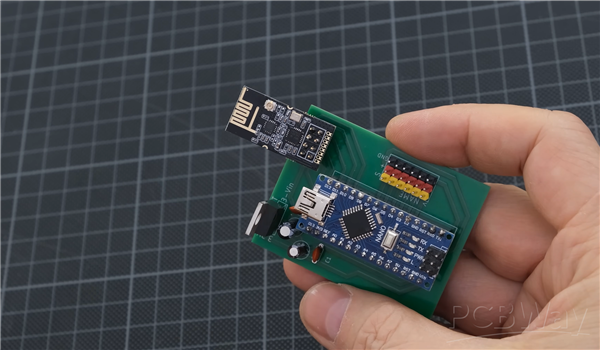

This receiver board is the compact, reliable counterpart to the 6-channel transmitter, designed to decode wireless control data and deliver clean, stable outputs for servos, ESCs, or other RC loads. Built around an Arduino Nano and the NRF24L01 transceiver, the PCB integrates power regulation, signal routing, and standard RC headers into a single, easy-to-assemble module.

The onboard 3.3 V regulation ensures the NRF24L01 operates stably, while proper decoupling keeps RF noise low for consistent range and response. Six clearly labeled output channels provide standard PWM signals, making the receiver plug-and-play with common RC equipment. A compact layout minimizes wiring and keeps the module lightweight—ideal for cars, boats, robots, and DIY RC platforms.

Designed with simplicity and reliability in mind, this RX PCB pairs seamlessly with the matching transmitter, offering low latency control, straightforward assembly, and a solid foundation for custom firmware or future expansion.

Credit & Acknowledgement

Complete Design & Engineering Credit: RC Maker Lab (This project is shared for educational and community reference purposes)
