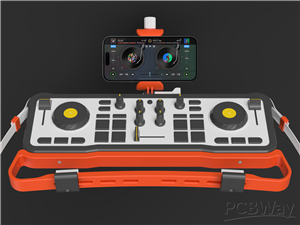

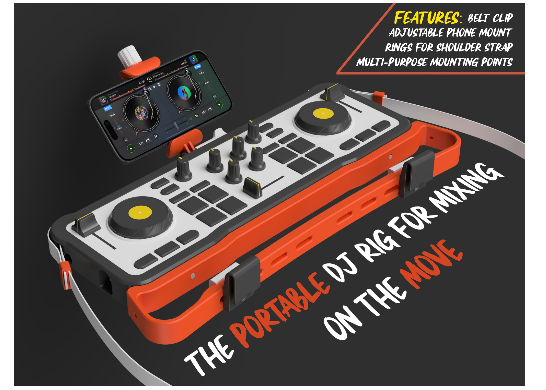

The Portable DJ Rig for Mixing on the Move!

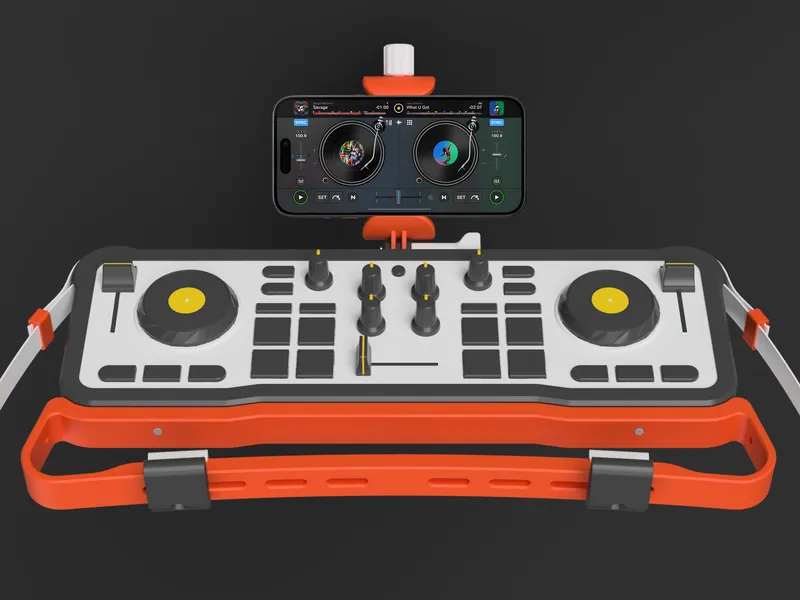

Get ready to mix anywhere with this innovative DJ rig designed for the Hercules DJ Control Mix. Whether you're walking, standing, or on the go, this bumper case keeps your controller secure while providing full functionality.

Features:

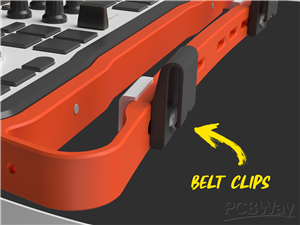

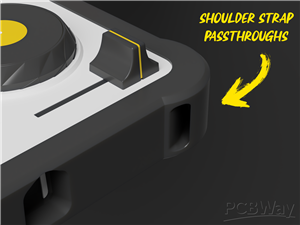

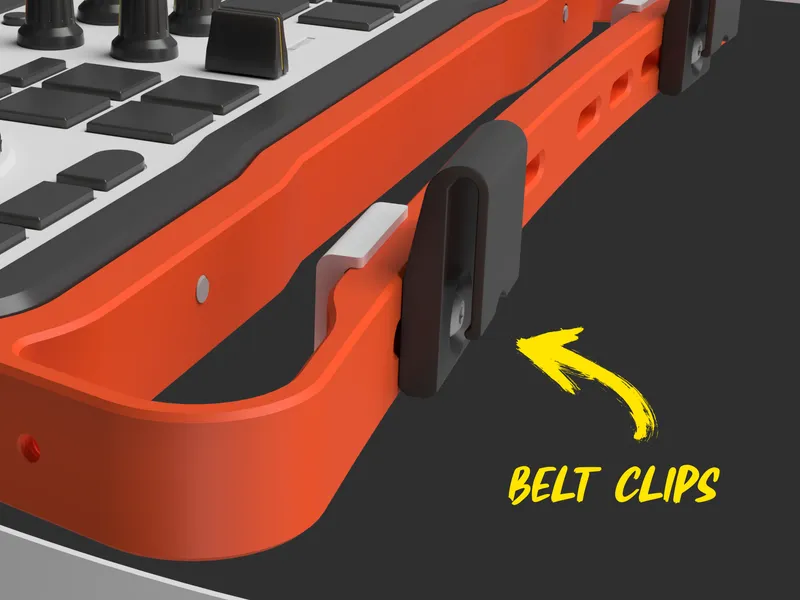

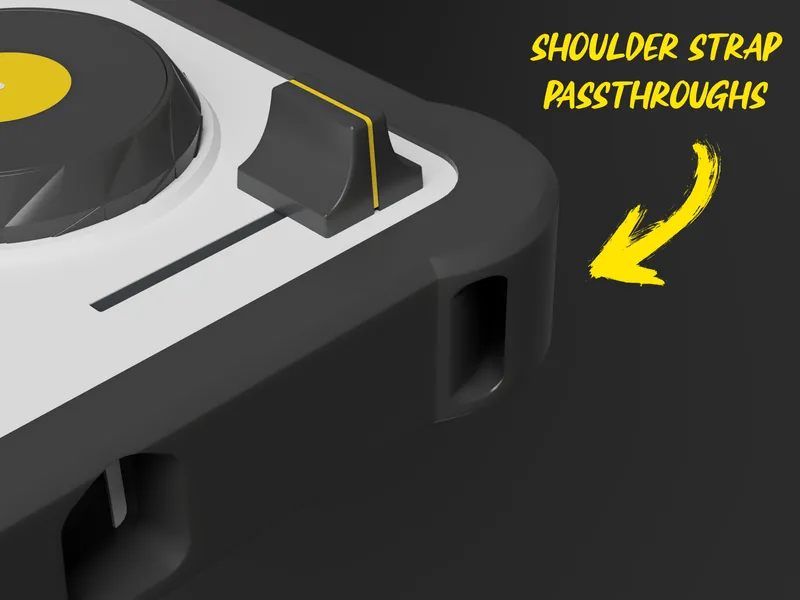

Belt Clips & Shoulder Strap Pass-throughs

– Secure it to your waist and add straps for extra support.

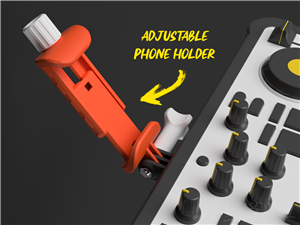

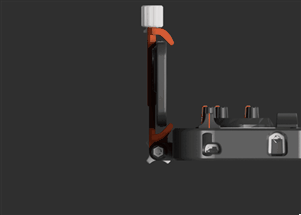

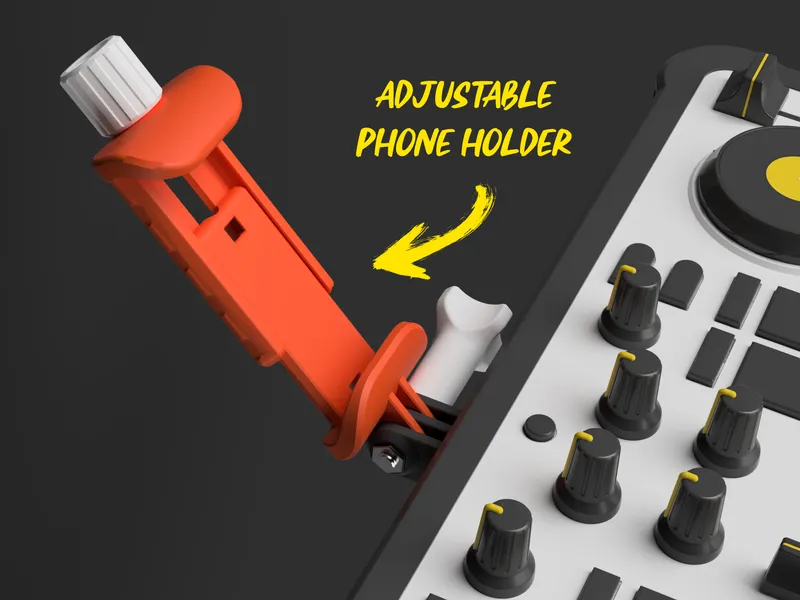

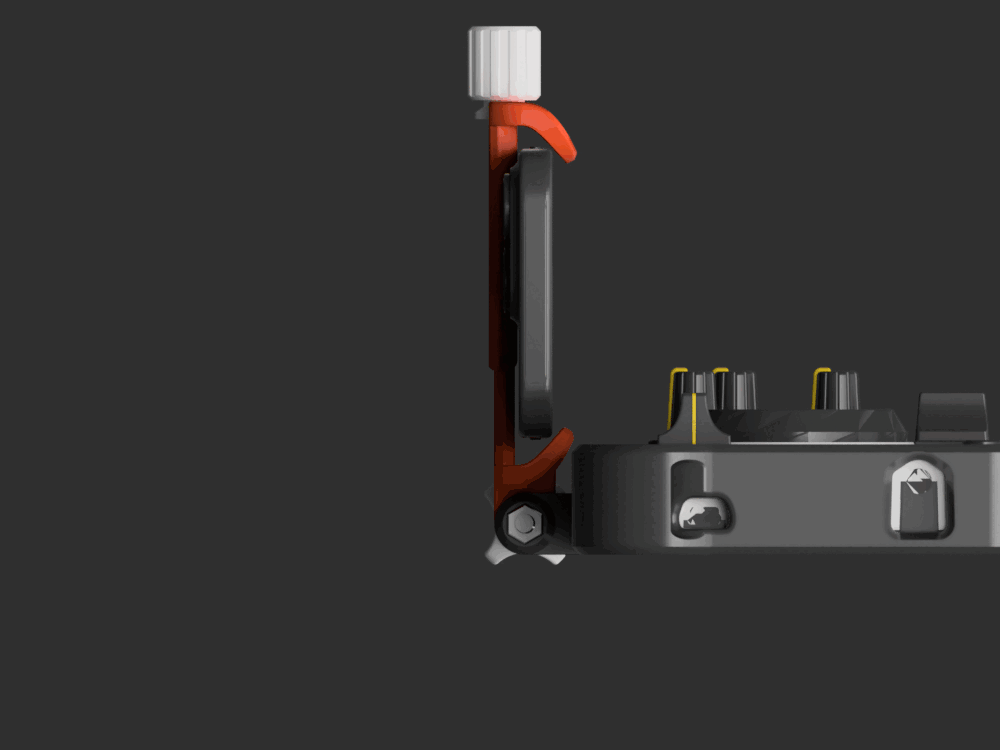

Adjustable Phone Holder

– Integrated phone mount compatible with the Modular Mounting System by HeyVye.

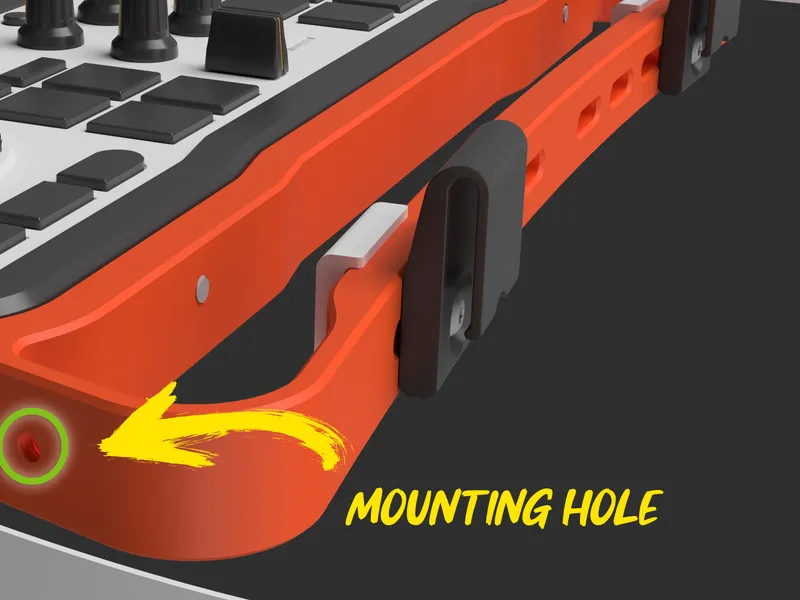

Versatile Mounting Holes

– Additional fixing points for customization.

Durable Material Combination

– TPU for the bumper, PLA or PETG for the rest.

Required Prints:

For the Modular Mounting System:

Mount Phone Clamp A (1x)

Mount Phone Clamp B with Tab (1x)

Mount Phone Clamp Knob (1x)

Mount Phone Clamp Bolt (1x)

Knob for nut long (1x)

Additional hardware: M5 nut and M5x20 hex bolt

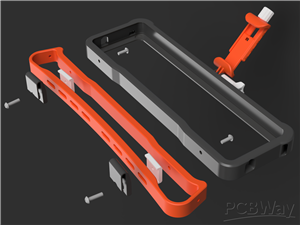

For the DJ Rig:

Bumper Case (1x)

Extension Bracket (1x)

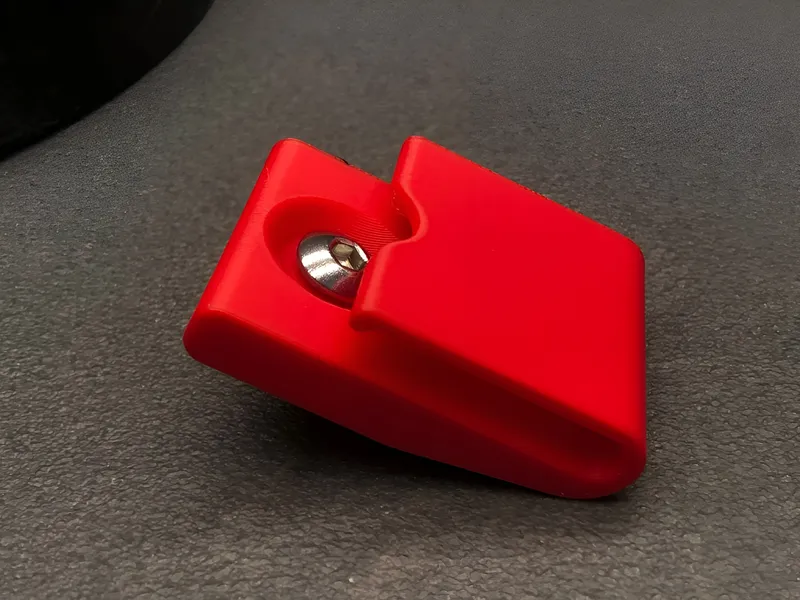

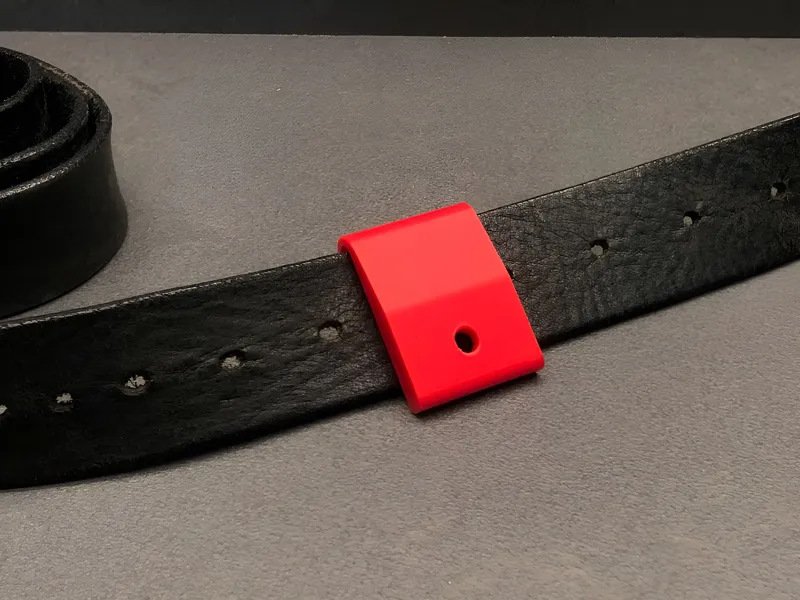

Belt Clip (2x)

Belt Clip Fixing (2x)

Additional hardware: 2x M5x20 button head screws, 2x M5x15 button head screws (or alternatively, 4x M5x20 button head screws)

Printing Instructions:

Layer Height: 0.2mm

Infill: 20-50%

Perimeters: 2-3

Supports: Not required

Materials: TPU (bumper), PLA or PETG (rest of the parts)

Mix Anywhere, Anytime!

This portable DJ rig ensures you never miss a beat, whether you're mixing on the move or performing in a dynamic environment.

Show Your Creations!

Share your makes and let us know what you think!
