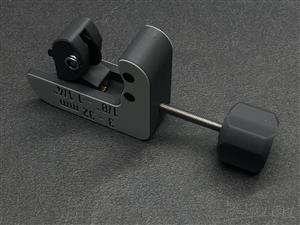

This Compact and Robust Pipe Cutter is designed for precision cuts on PVC, copper, and aluminum pipes. Its ergonomic design fits easily in hand and can cut pipes ranging from 3mm to 32mm (1/8” to 1 1/4”). Whether you’re a professional or a DIY enthusiast, this tool ensures clean, efficient cuts every time.

Built with durability in mind, the cutter can be printed in PLA or PETG, but for enhanced strength, Prusament PCCF or PC Blend is recommended, especially for the rollers, ensuring longer-lasting performance.

Printable Files:

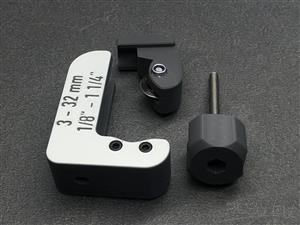

• Main Body

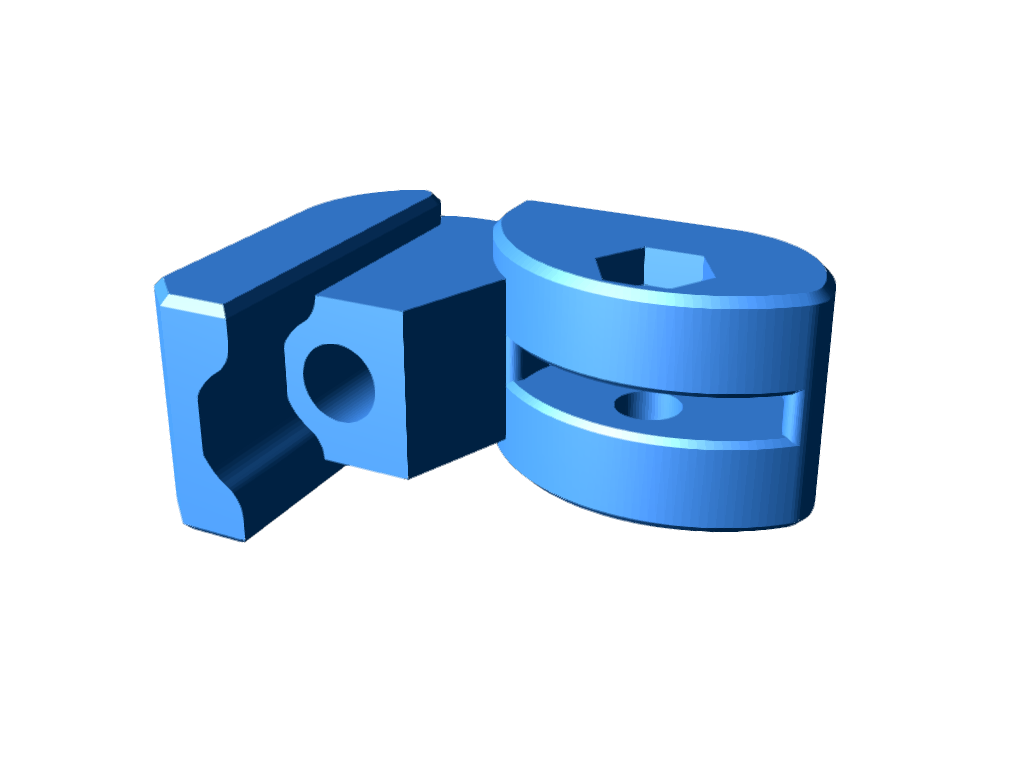

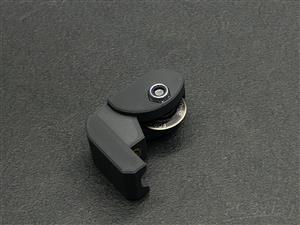

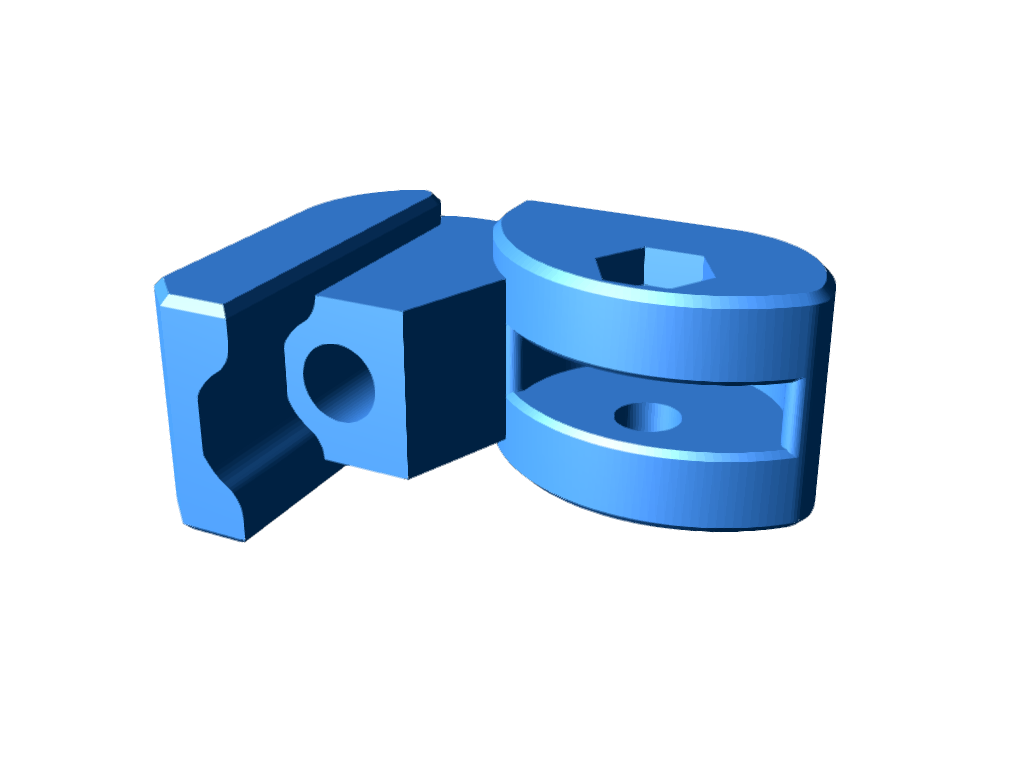

• Blade Head (3 versions available)

• Knob

• 2X Rollers

Printing Instructions:

• Layer Height: 0.15mm to 0.2mm

• Supports: Required (optimal results with soluble supports via MMU or dual-extrusion printers)

• Material: PLA, PETG, PCCF, or PC Blend for maximum durability

For improved accuracy, soluble supports allow for zero-gap contact, yielding a smoother finish.

Hardware Requirements:

Cutting Disc:

Outer Diameter 18–20mm, Inner Diameter 5mm, Thickness 3–3,8-5-6mm

Buy 3mm Blade from Amazon US                  Buy 3mm Blade From Amazon EU

You can also find 3.8mm and 6mm thick blades on Amazon.

The 5mm Blade Head is specifically designed for 4.9mm Würth Blade or 4.9mm INOX Würth Blade

Screws and Nuts:

   • 1x M5 Self Locking Nuts

   • 2x M3 Self Locking Nuts

   • 1x M5 x 50–60 Hex Head Screw

   • 1x M5 x 20 Button Head Screw

   • 2x M3 x 22–25 Cylinder Head Screws

   • 1x Threaded Insert M5

Optional Hardware for rail block:

   • M5 Washer (9–10mm)

   • 2x M5 Nuts or 1x M5 Nylock Nut

Versatile and Reliable:

Perfect for cutting pipes during plumbing projects or crafting needs, this tube cutter combines compactness and robust design for smooth operation even on tough materials.

Share Your Builds:

We’d love to see your prints! Share your makes to inspire the community and show how you’ve customized your tube cutter for your projects.
