Vaclav upir
CZECH REPUBLIC, THE • + Follow
Components
|
|

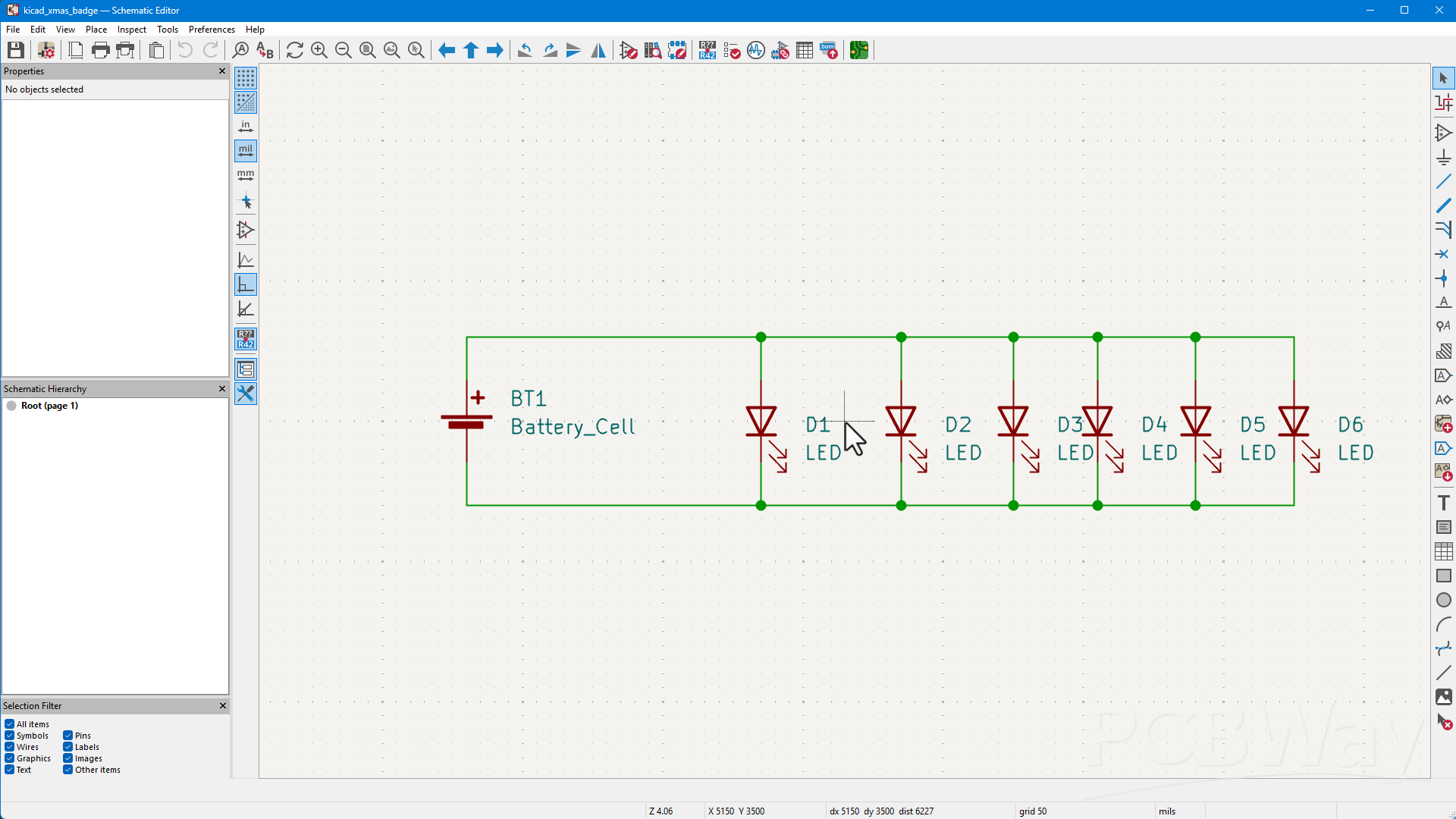

SMD 0805 LED in warm white color |
x 6 | |
|
|

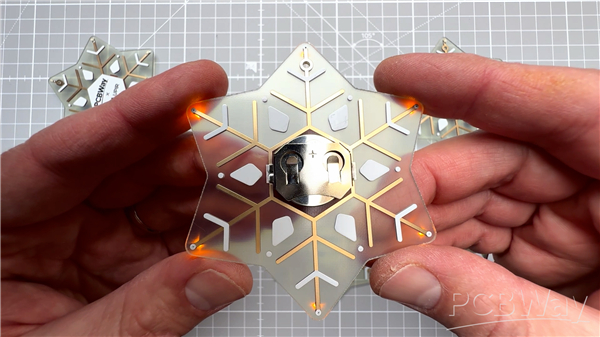

CR2032 COIN CELL battery holder |
x 1 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
|
|

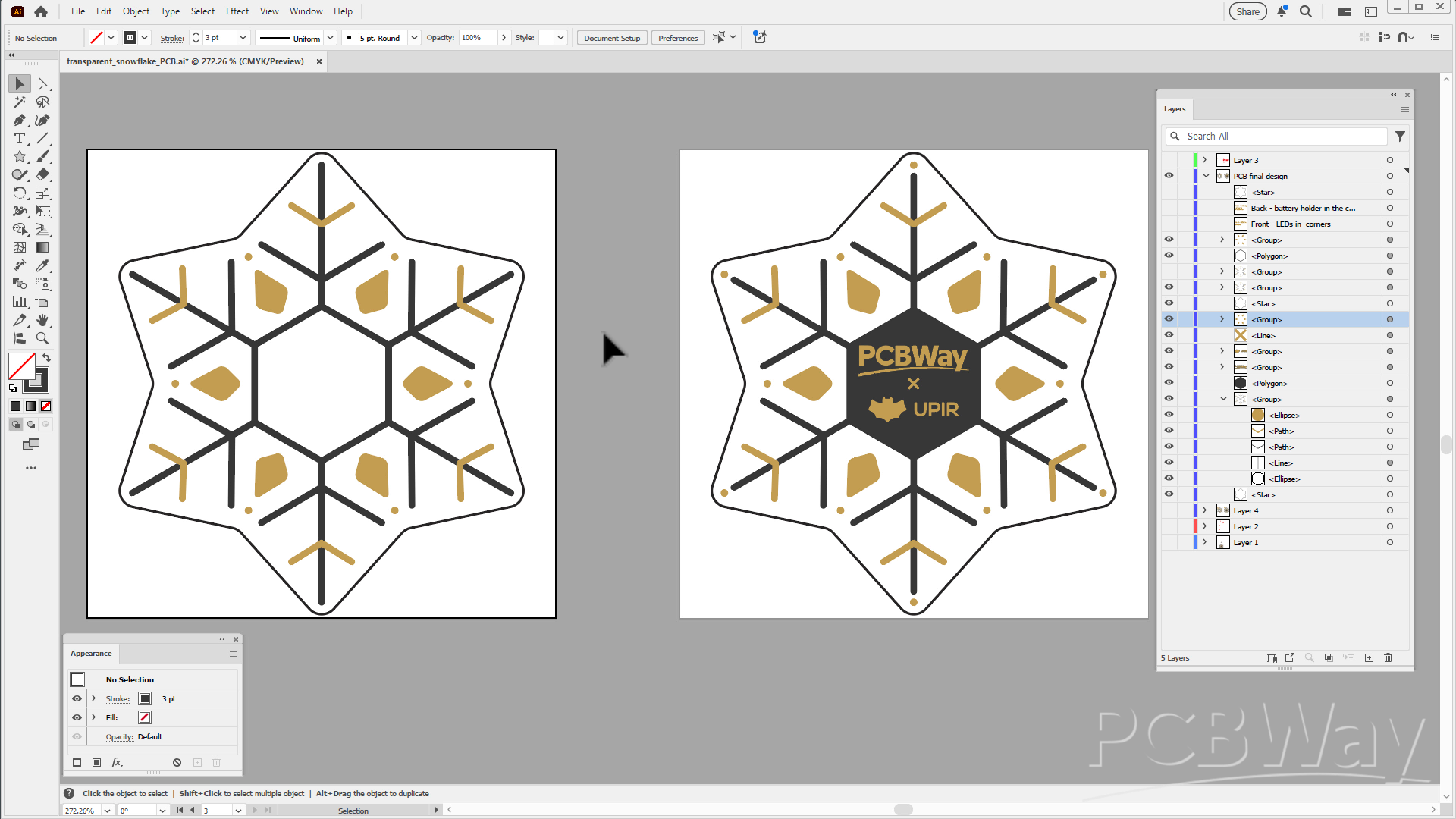

Adobe Illustrator |
Description

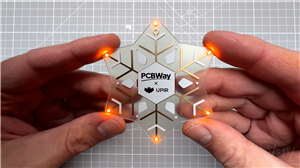

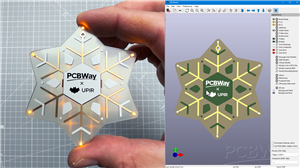

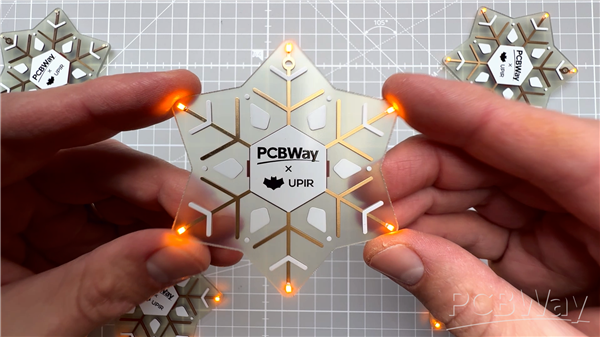

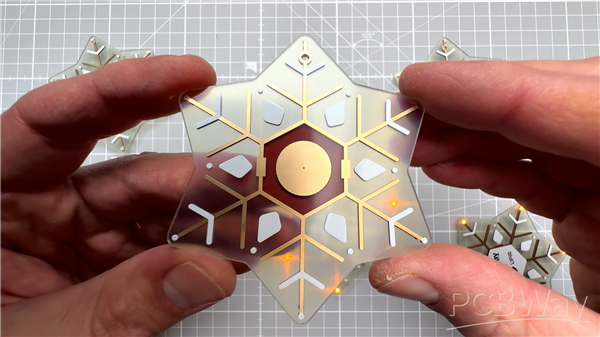

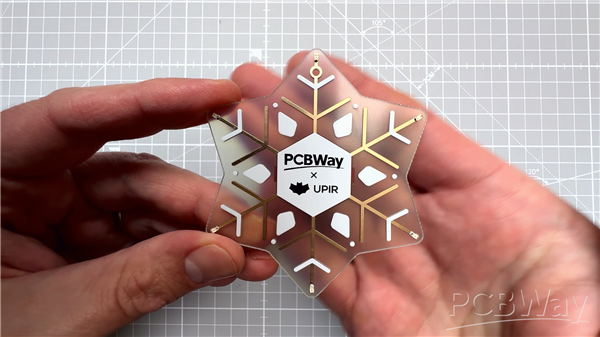

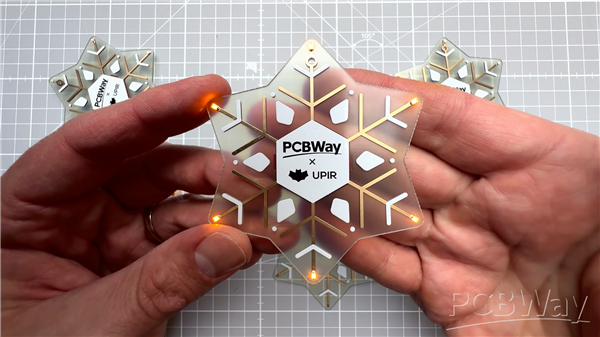

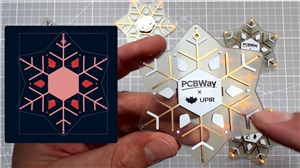

Transparent Snowflake Christmas PCB Badge

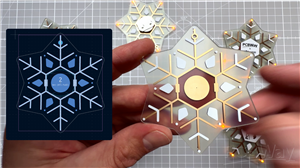

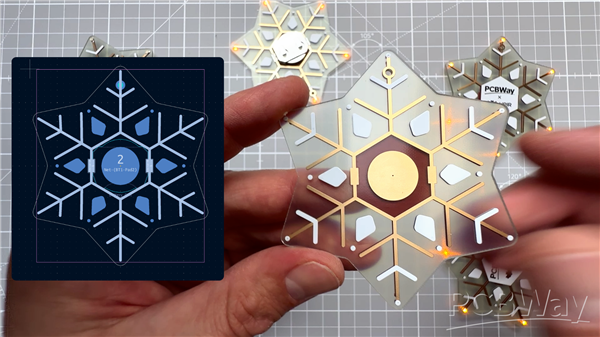

Transparent Christmas PCB Badge. When ordering from PCBWay, please specify that the PCB core should be transparent, white solder mask, black silkscreen, and gold pads. All the other settings are default.
YouTube video:
Code
GitHub Source Files
https://github.com/upiir/transparent_pcb_snowflake_badge
Jan 06,2026
125 views
Transparent Snowflake Christmas PCB Badge
Transparent Snowflake Christmas PCB Badge
125
1
0
Published: Jan 06,2026
Standard PCB
Download Gerber file 1
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-MIT
License.
