CAMTASIA_arduino_segmented_lcd_display (Time 0_20_27;18).png

Components

	7 Segment LCD Display	x 1
	Arduino UNO	x 1

Tools, APP Software Used etc.

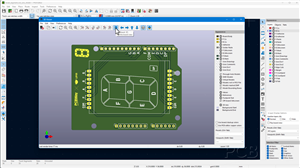

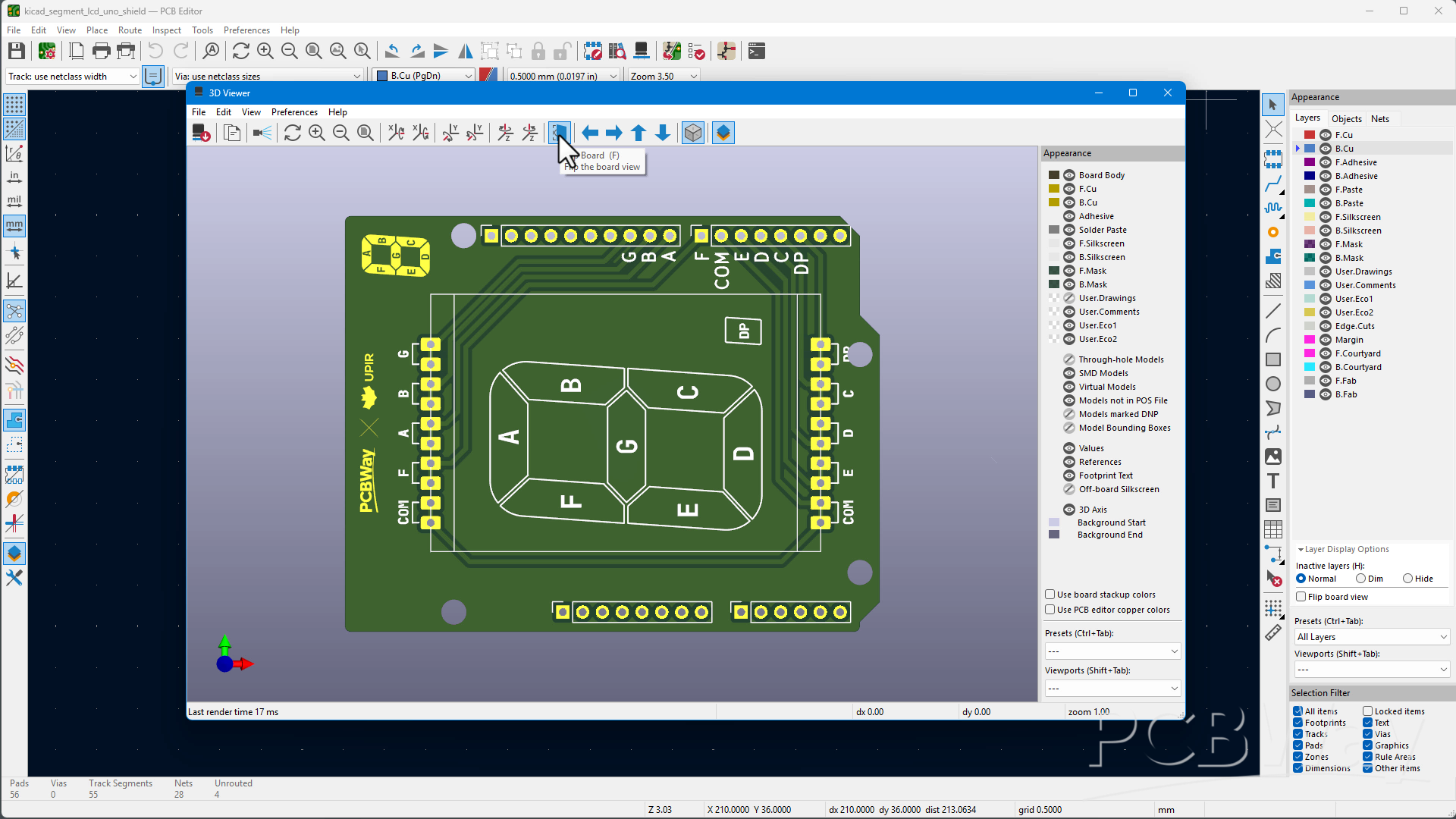

KiCad 9.0

Description

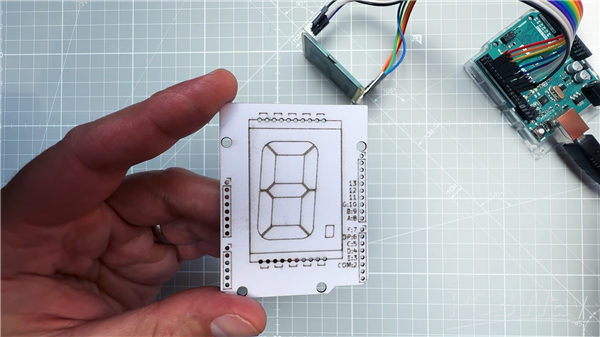

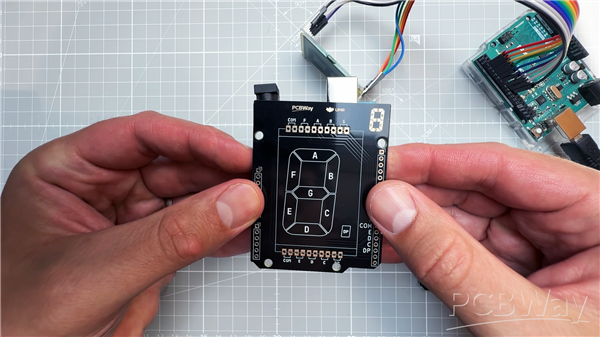

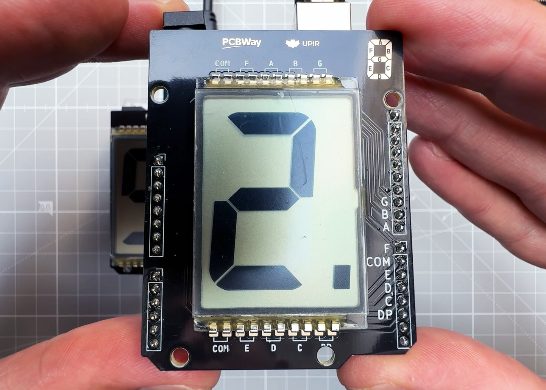

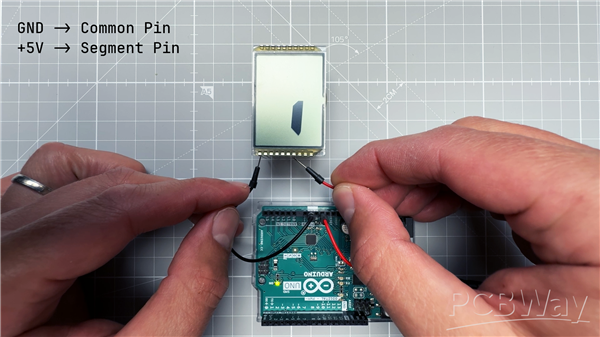

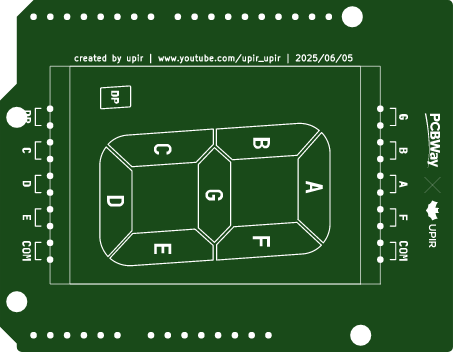

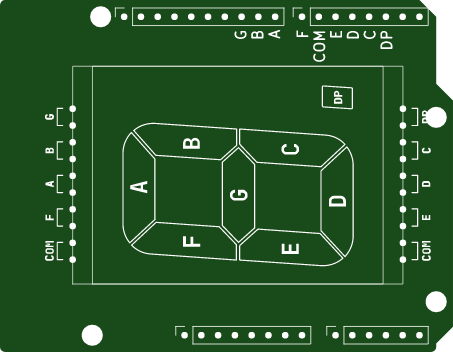

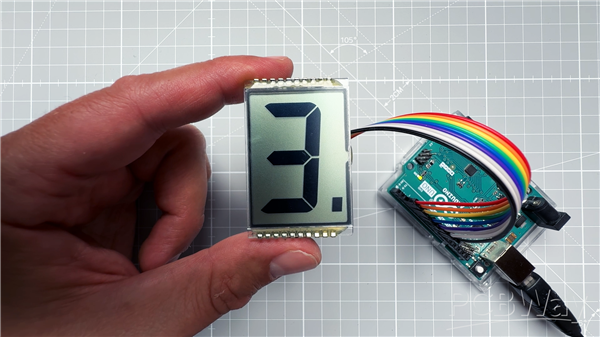

Segmented 7 Segment LCD display shield for Arduino UNO

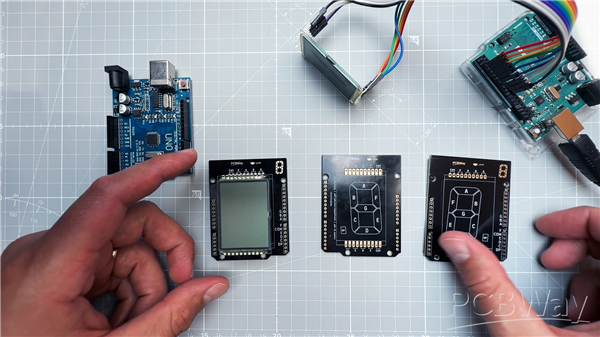

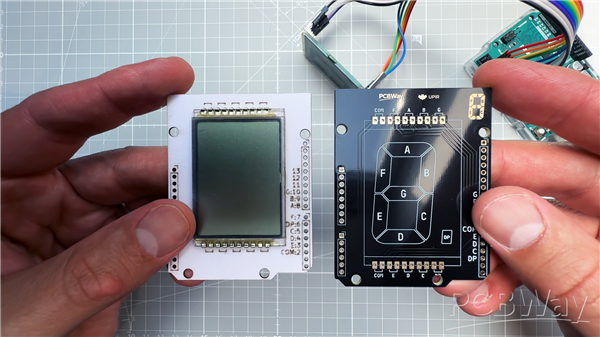

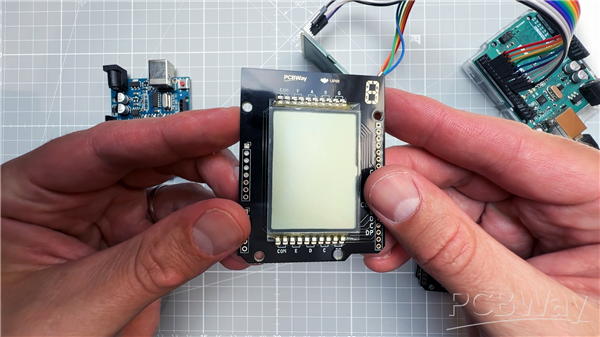

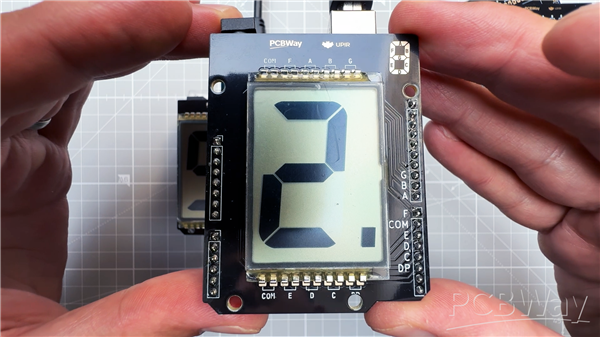

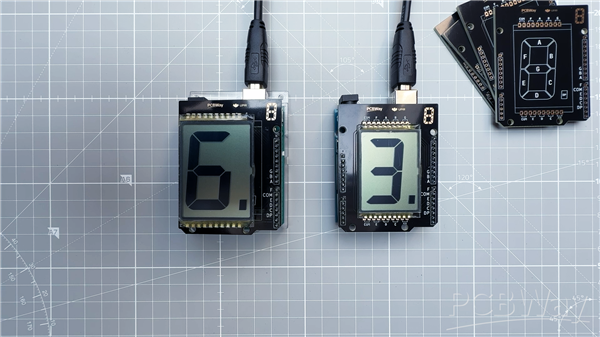

LCD 7-segment display shield for Arduino UNO

YouTube video:

Screenshots:

Code

https://github.com/upiir/arduino_7segment_lcd_display

Download Gerbers

Jun 18,2025

587 views

Segmented 7 Segment LCD display shield for Arduino UNO

587

Published: Jun 18,2025

Standard PCB

Download Gerber file 3

PCBWay Donate 10% cost To Author

Only PCB

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-MIT License.
