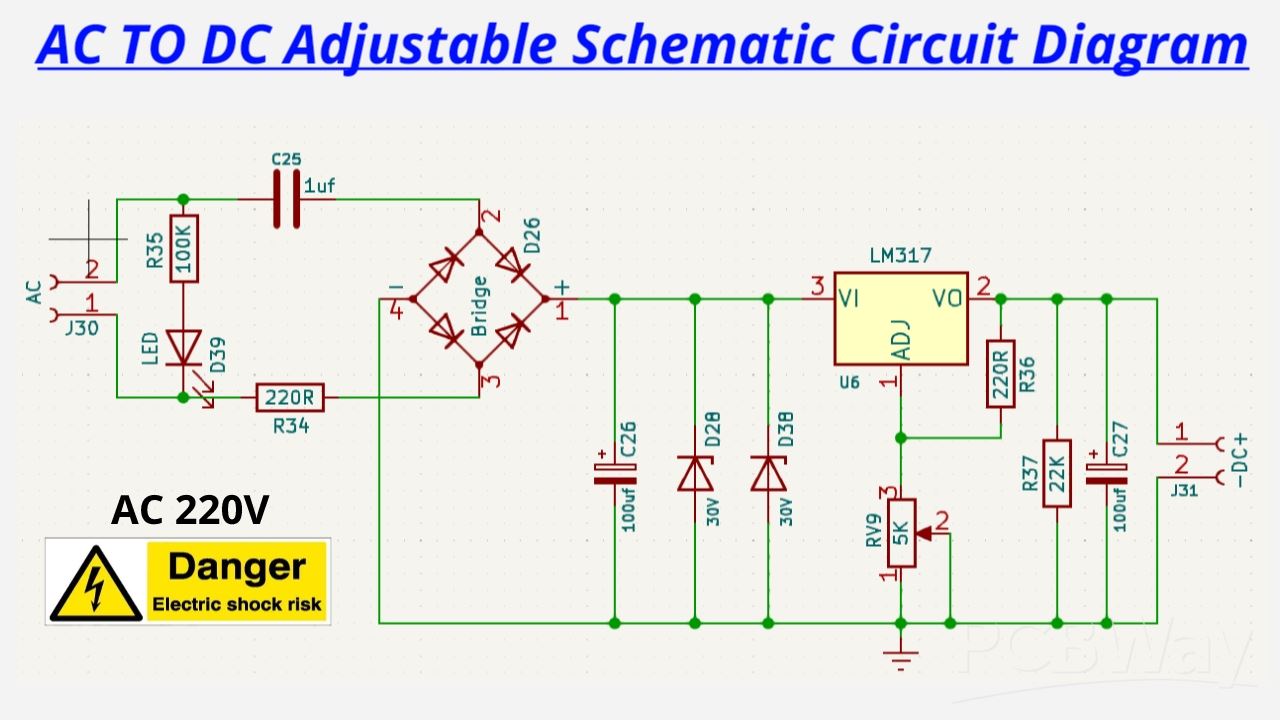

This project explores a transformerless, auto-adjustable LED driver designed to convert 220V AC mains into a wide range of DC voltages, making it an extremely versatile tool for LED testing, experimentation, and brightness control. By combining a capacitive dropper front end with a linear regulation stage, the design delivers a compact, low-cost solution without the need for a bulky transformer.

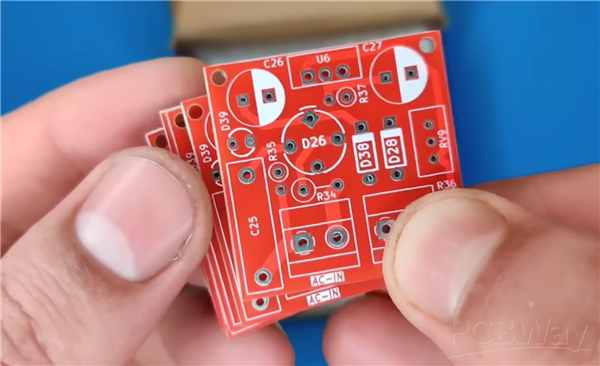

At the heart of the circuit is a bridge rectifier that converts incoming AC to DC, followed by carefully selected filter capacitors to smooth the ripple. Zener diodes are used for voltage limiting and protection, while the LM317 adjustable regulator provides fine control over the output voltage. A potentiometer connected to the adjustment pin allows smooth tuning of the output, enabling both voltage selection and LED brightness control from a single knob.

One of the most practical aspects of this design is its auto-voltage behavior when testing LEDs. The circuit naturally adapts its output to the connected load, helping prevent accidental over-voltage damage to LEDs of different ratings. This makes it particularly useful for identifying faulty LEDs, testing SMD strips, high-power LEDs, and LED bulbs, or quickly determining the operating voltage of unknown LED modules.

Thermal management plays an important role in this build. Since the LM317 dissipates excess power as heat, the design emphasizes the use of a proper heat sink and thermal paste to ensure stable operation and long component life. For improved usability, a simple mechanical enhancement such as a 3D-printed adjustment knob can be added, making voltage and brightness control more intuitive during testing.

The circuit also supports advanced modifications. For output voltages above 30V, certain protection components can be bypassed using a jumper, extending the usable voltage range up to around 110V DC. Additionally, a series resistor can be introduced when testing very small LEDs, preventing sudden current surges that could instantly damage them.

Overall, this transformerless adjustable LED driver is a powerful bench tool for electronics enthusiasts. It combines simplicity, flexibility, and compactness, making it ideal for LED diagnostics, prototyping, and educational use. While compact and efficient, it is important to remember that transformerless designs are directly connected to mains voltage, so careful insulation, enclosure design, and safe handling practices are absolutely essential.
