This project presents a clean and reliable adjustable DC-DC buck converter module based on the widely trusted LM2596 switching regulator, designed for efficient step-down power conversion in everyday electronics and DIY applications. The focus of this design is simplicity, robustness, and real-world usability, making it suitable for both beginners and experienced hardware designers.

At the heart of the module is the LM2596, a high-efficiency switching regulator capable of delivering stable output voltages while handling relatively high currents with minimal heat dissipation. The adjustable configuration allows users to fine-tune the output voltage using an onboard trimmer potentiometer, making the module flexible for powering microcontrollers, sensors, development boards, and embedded systems.

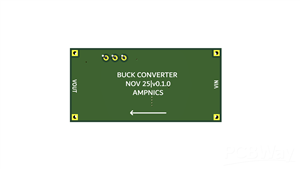

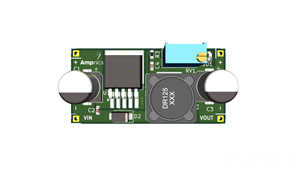

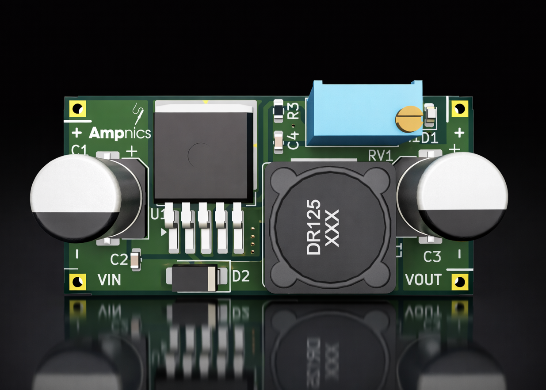

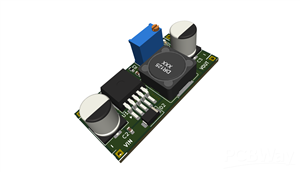

The PCB layout prioritizes current handling and stability. Wide copper pours are used for VIN and VOUT paths, while the placement of the inductor, Schottky diode, and output capacitors is optimized to reduce switching noise and ripple. Proper input and output filtering ensures smooth voltage regulation even under varying load conditions. The onboard electrolytic capacitors help absorb transients, improving reliability in real-world use.

From a usability standpoint, the module is straightforward and practical. Clearly marked input and output terminals make wiring easy, while the compact form factor allows it to fit seamlessly into enclosures or prototypes. The adjustable output makes it especially useful during development, where voltage requirements often change as a project evolves.

This LM2596 buck converter design is ideal for applications such as powering Arduino or ESP-based boards, LED drivers, battery-powered systems, robotics projects, and general lab power regulation. It serves not only as a functional power module but also as a solid reference design for anyone interested in learning about switching regulators and power PCB layout techniques. Overall, this project highlights how a well-designed hardware layout combined with a proven regulator can result in a dependable, efficient, and maker-friendly power solution.

Credit & Acknowledgement

Complete Design & Engineering Credit: Ampnics (This project is shared for educational and community reference purposes)
