3

Components

	NE555D Any (SOIC-8)	x 1
	TMS-117-01-G-D Samtec Inc.	x 1

Tools, APP Software Used etc.

	KiCad 9.0
	Soldering iron (generic)
	Soldering Iron Wire

Description

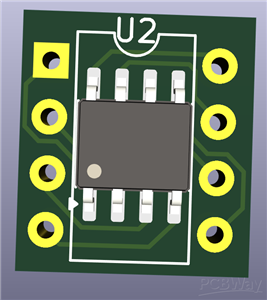

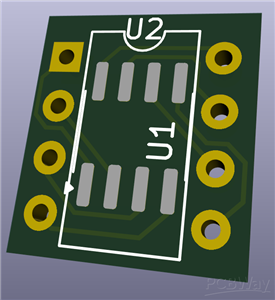

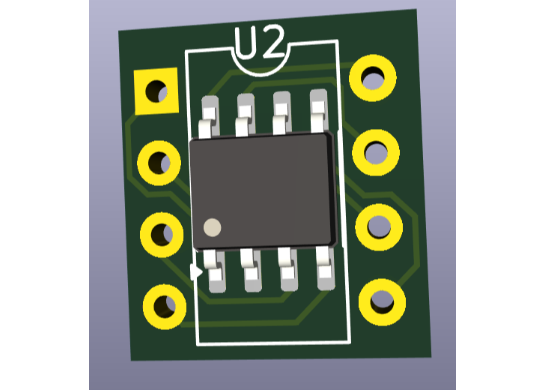

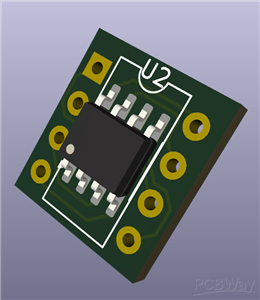

DIP8 ADAPTER, SMD TO THT, FOR ALL 8 PIN IC´S SUCH AS NE554, NE555, NA555, LM358

ALL GERBERS INCLUDED EVEN BOM, DRILLING, SOLDER PASTE, ETC.

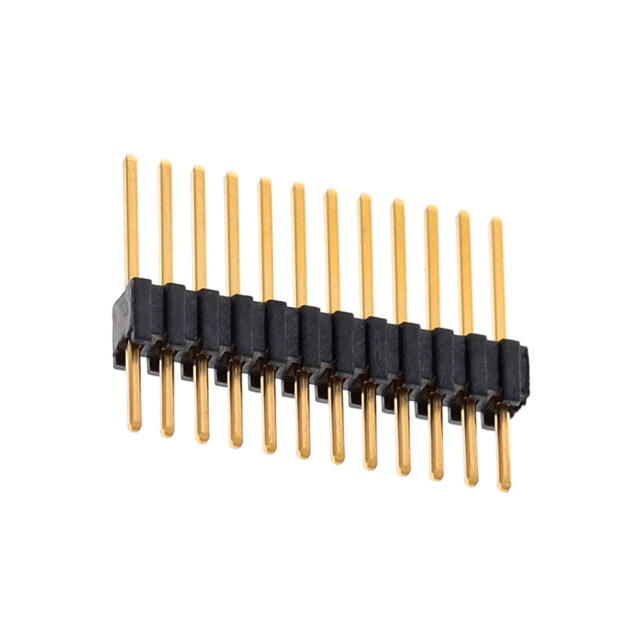

Hello this and adaptor for all 8 pin IC´s. You just need and SMD Version of the component and Male Header.

I created this because I have a lot of SMD (SOIC8) IC´s but I need an THT (DIP8) Version.

If you have any question ask!

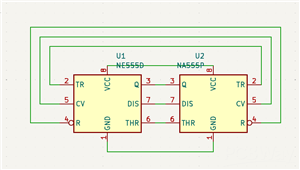

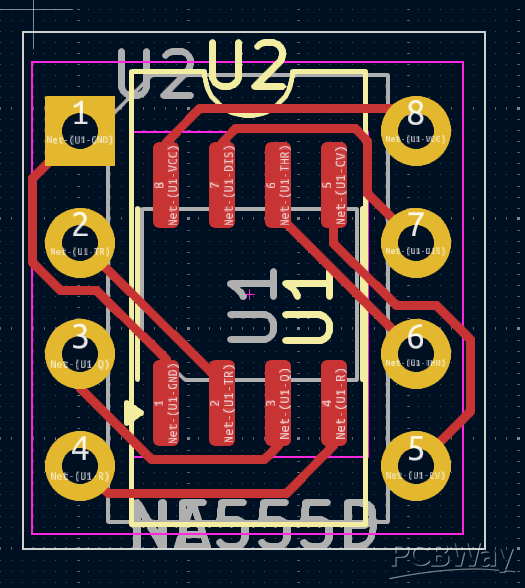

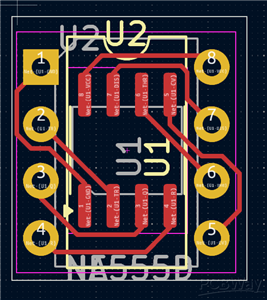

Schematic and Layout

Snímek obrazovky 2025-08-07 111921.png

Download Gerbers Download BOM(Bill of materials)

Aug 07,2025

370 views

DIP8 ADAPTER, SMD TO THT, FOR ALL 8 PIN IC´S SUCH AS NE554, NE555, NA555, LM358

This is an DIP8 ADAPTER, SMD TO THT, FOR ALL 8 PIN IC´S SUCH AS NE554, NE555, NA555, LM358. You just need and SMD version and male header

370

Published: Aug 07,2025

Standard PCB

Download Gerber file 8

BOM(Bill of materials)

PCBWay Donate 10% cost To Author

File Last Updated: 2025/08/09 (GMT+8)

File update record

2025-08-0902:22:34

Gerber file is updated.
