Components

	NE555 Texas Instruments	x 1
	CD4017BE Texas Instruments	x 1

Tools, APP Software Used etc.

	KiCad 9.0
	Soldering iron (generic)
	Soldering Iron Wire

Description

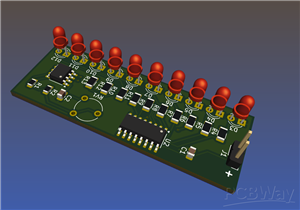

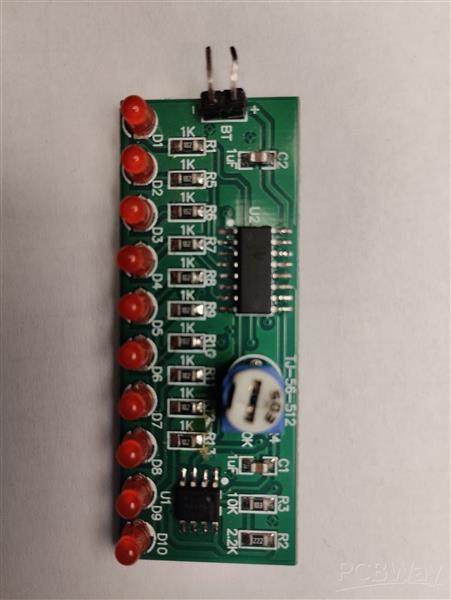

Led Chaser, Mostly SMD, using NE555 & CD4017

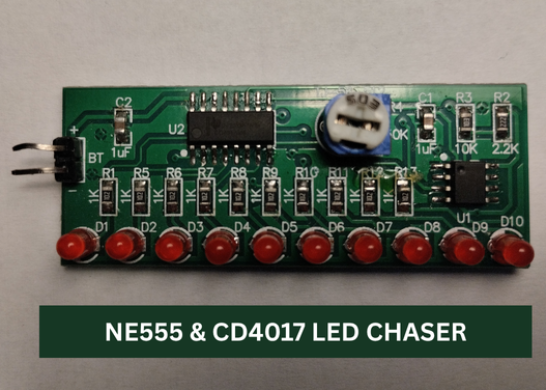

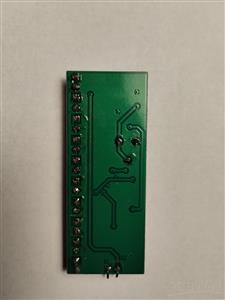

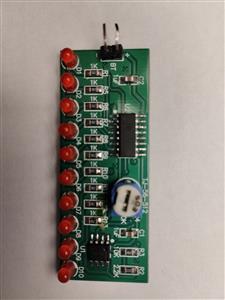

NE555 & CD4017 LED CHASER

-The LEDS, RESISTORS AND INTEGRATED CIRCUITS are all SMD, therefore there are 3mm TH Leds, TH Potentiomer and TH 1*2 Pinheader.

-All files such as BOM, CENTROID, GERBERS, LAYOUT and SCHEMATIC is included.

-Input 5-9V DC.

HOW DOES THIS CIRCUIT WORK:

-The NE555 is configured as an astable multivibrator, generating continuous clock pulses that drive the CD4017. Each pulse from the 555 advances the CD4017’s output, turning on one LED at a time in sequence. Once all 10 outputs are used, the CD4017 automatically resets and starts again, creating a smooth running-light or chasing effect. The chase speed can be adjusted by changing potentiomer connected to the NE555.

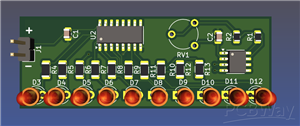

Schematic and Layout

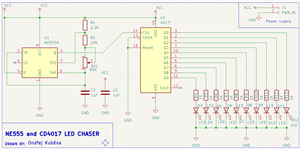

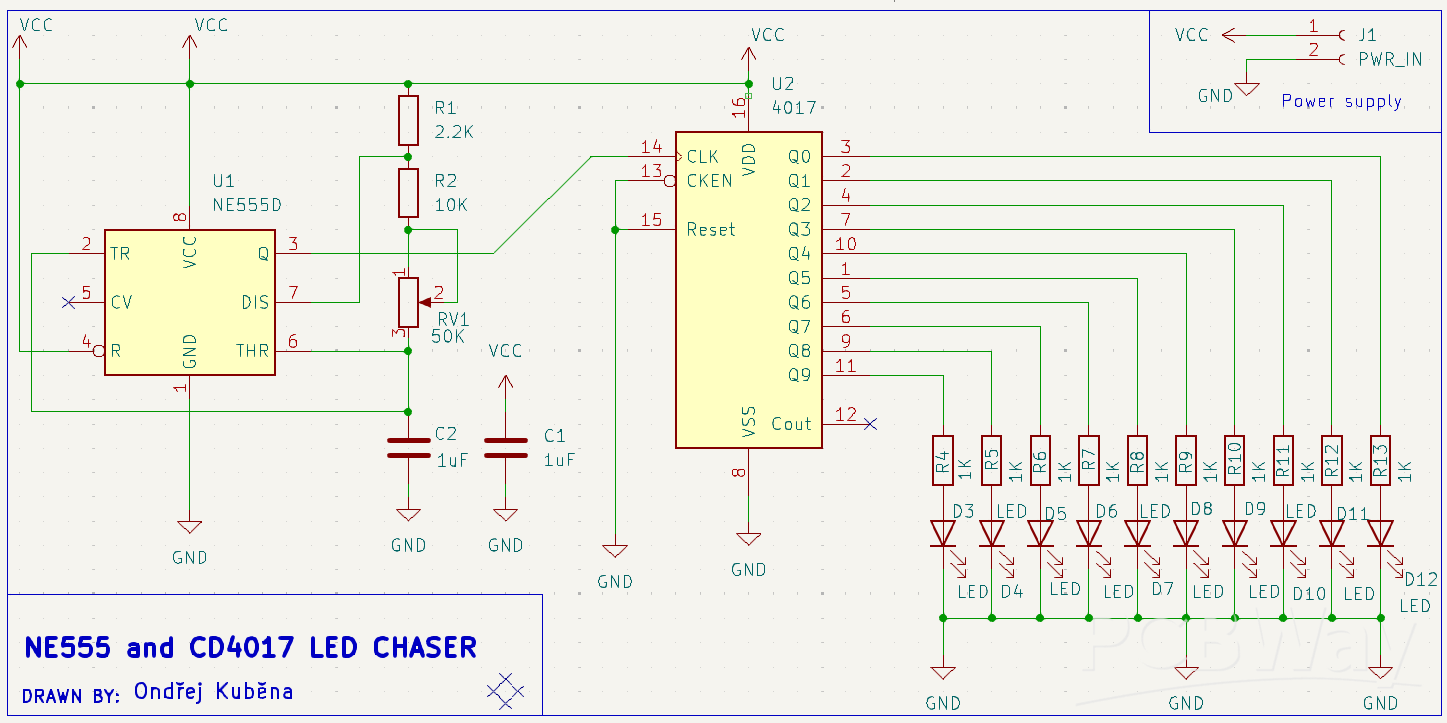

Schematic

Snímek obrazovky 2025-10-27 160718.png

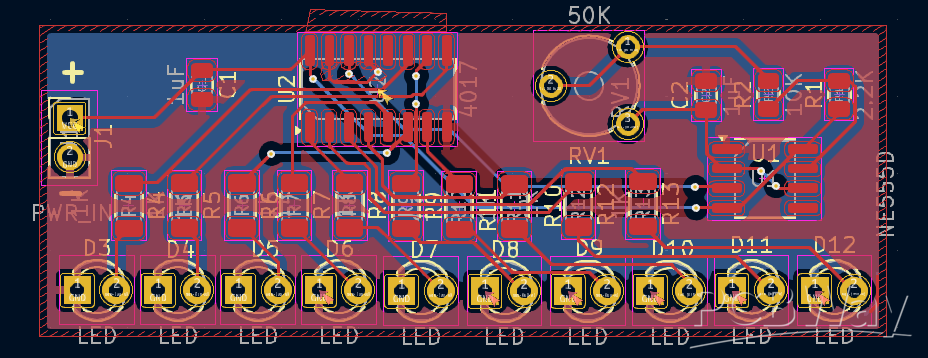

Layout

Snímek obrazovky 2025-10-27 163053.png

Download Gerbers Download BOM(Bill of materials)

Oct 27,2025

1,360 views

Led Chaser, Mostly SMD, using NE555 & CD4017

This LED Chaser is all SMD, only thing that is not is the power supply input, potentiometer and the leds. EXPLANATION INCLUDED. All files.
