ZERO PCB 6*7cm - Perfboard
Please do not use BOM and the centroid file because they are irrevelant and not needed. (In the BOM there is a "pinheader" but we use it just as the pin hole therofe these files are not needed).
- This is a general purpose ZERO PCB 6×7 cm, perfect for quickly building and testing small circuits. Zero PCBs are widely used for prototyping because they provide a matrix of copper pads where you can solder components and wires in any configuration you need.
Features:
- Board size: 6 cm × 7 cm
- Standard grid of copper pads for circuit building
- Compatible with through-hole and some SMD components
- Durable FR4 base for long-lasting use
- Ideal for quick DIY circuit assembly
Why use a ZERO PCB?
- When experimenting with new circuits, designing a full PCB is not always practical. A zero PCB allows you to solder components in custom layouts, test ideas, and make modifications without waiting for fabrication.
Applications:
- Prototyping new circuits
- Small DIY electronics projects
- Educational use in labs and classrooms
- Repair and modification of existing circuits
This 6×7 cm Zero PCB is a must-have for any electronics projects.

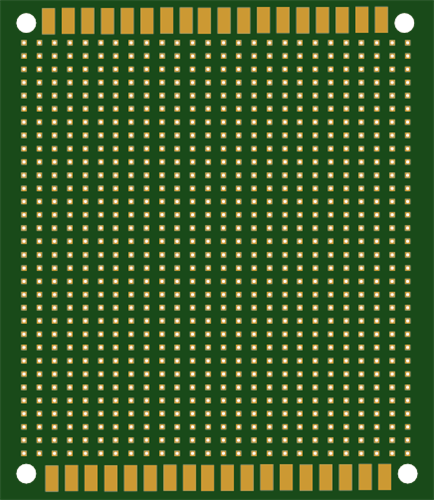

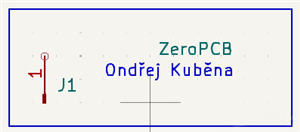

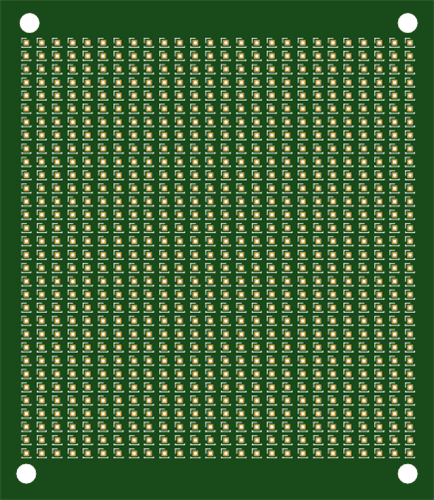

Schematic and Layout
