This board features 6 different resistance values so you can find the right brightness for your project.

• Connect only one jumper at a time.

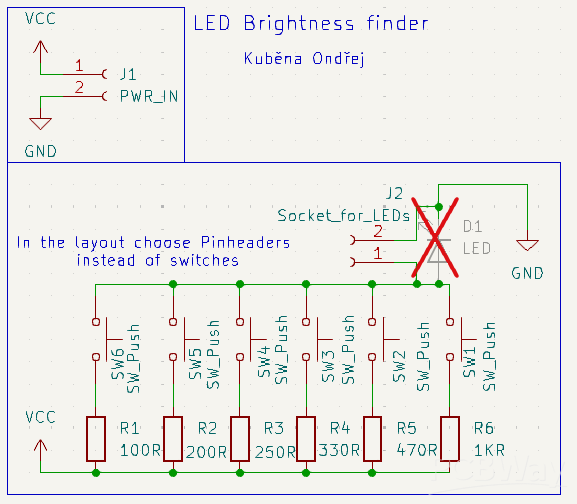

BOM, GRBRs, Schematics, Layouts, Centroid files are all included.

Long Description:

• This project is a resistor testing board designed to help you quickly determine the right resistance value for adjusting LED brightness or other current-limiting applications.
• The board includes 6 different resistor values, each selectable with a simple jumper. By connecting one jumper at a time, you can instantly compare brightness levels and choose the resistor that best fits your project.

Features:

• 6 resistor values for easy testing.
• Simple jumper selection — connect only one at a time.

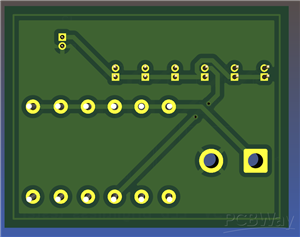

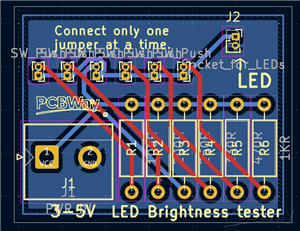

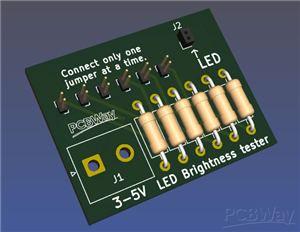

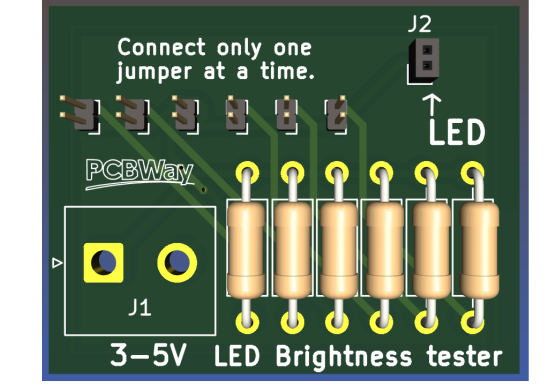

• Compact PCB design for convenient use on the bench.
• Ideal for choosing resistor values for LEDs.

Great learning tool for beginners experimenting with Ohm’s law and current limiting.

Included Files:

• BOM (Bill of Materials)
• Gerber files
• Schematics
• PCB Layouts
• Centroid files

Why do I use it?

Instead of trial and error with loose resistors, this board provides a ready-to-use solution for quickly finding the right brightness level.

Applications:

• LED brightness testing
• Quick current-limiting experiments
