Description

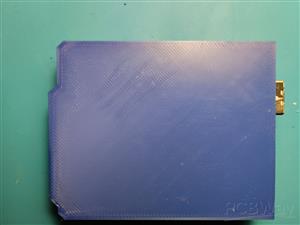

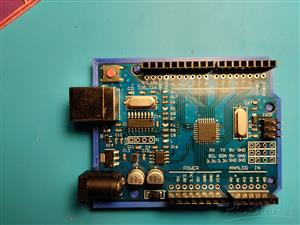

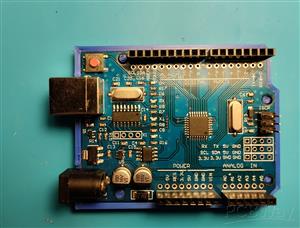

Arduino UNO R3 Back Cover
- Protect and organize your Arduino Uno R3 with this precision-designed back cover. It shields the board from dust, debris, and accidental short circuits while keeping all ports fully accessible.
- The slim, lightweight design ensures minimal bulk and easy installation, making it perfect for both portable projects and permanent setups. Cutouts for the USB, power jack, and ICSP header allow full connectivity without removing the cover.
- Not only practical, it also improves the aesthetics of your project by hiding solder points and traces for a clean, professional look. Ideal for makers, students, and engineers who want to enhance the safety, durability, and style of their Arduino boards.
- Custom-fit for Arduino Uno R3
- Durable protection from dust and short circuits
- Full access to USB, power, and ICSP ports
- Lightweight, slim, and easy to install
- Clean, professional appearance
CAD-Custom parts and enclosures

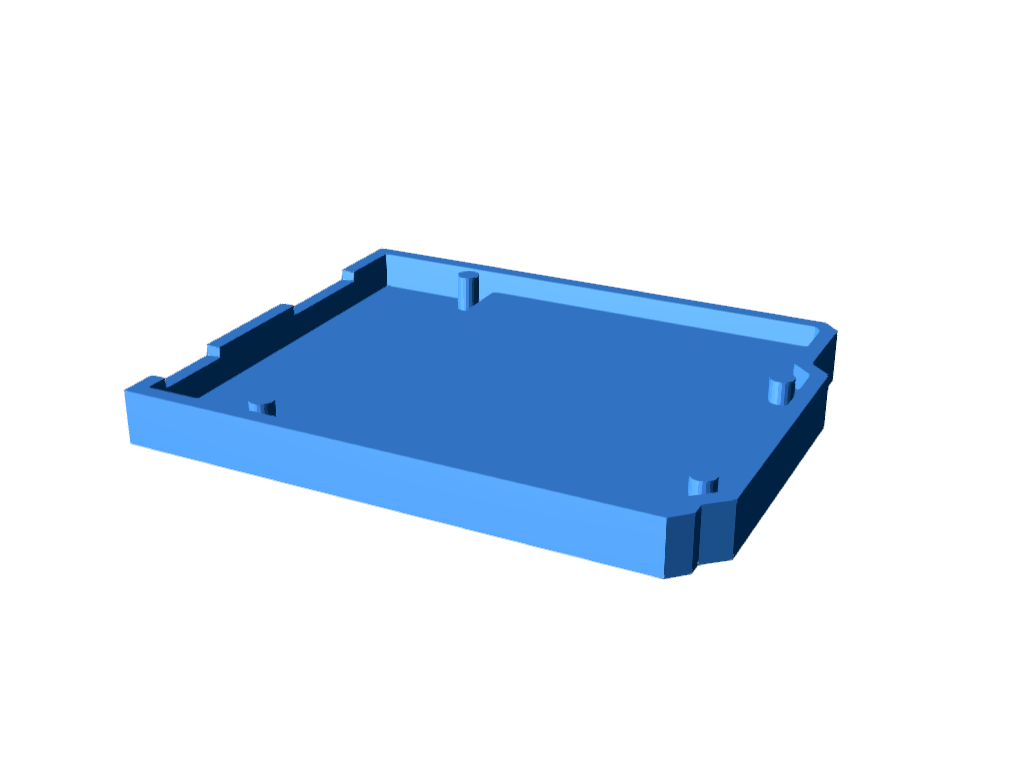

Arduino UNO R3 Back cover, comment for free stl
Arduino_Back_Cover (1).stl
Aug 16,2025
161 views

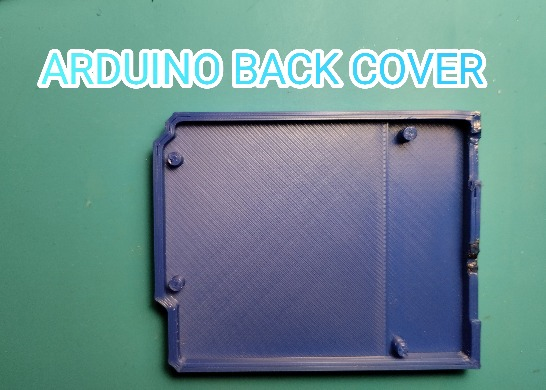

Arduino UNO R3 Back Cover
Arduino UNO R3 Back Cover so the bottom contacts does not get shorted out.
161
0
1
8.75 (1)
Published: Aug 16,2025
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
