Description
WICK, Solder Wire, Tin spool holder

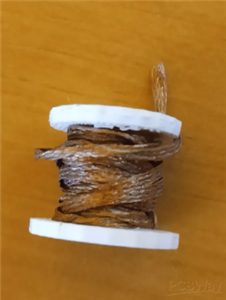

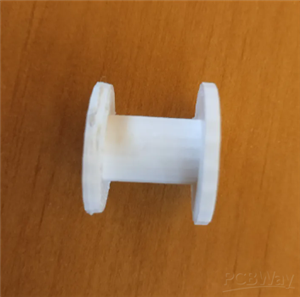

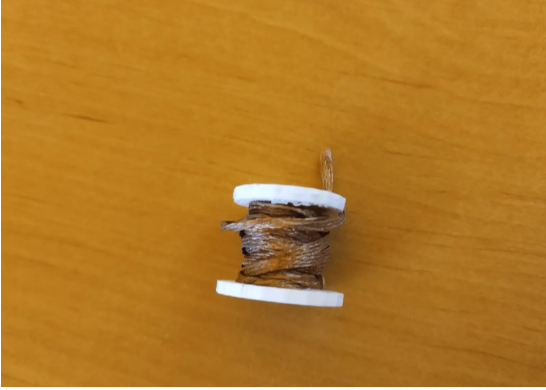

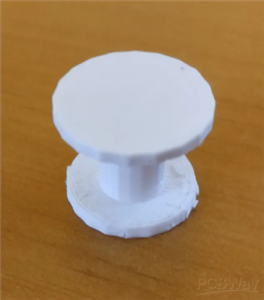

This project is a 3D printed coil holder designed for organizing wires, soldering tin, and other spools. It’s a simple but highly practical tool for any electronics or workshop desk.
Design Details:
- Two walls provide stability and keep the coil firmly in place.
- 75% infill ensures durability and strength for repeated use.
- Print with supports – the best results are achieved using organic (tree) supports.
- 0.2 mm layer height recommended for a clean, sturdy finish.
Code
Files
https://github.com/Ondrak-123/All-Files-From-PCBWay

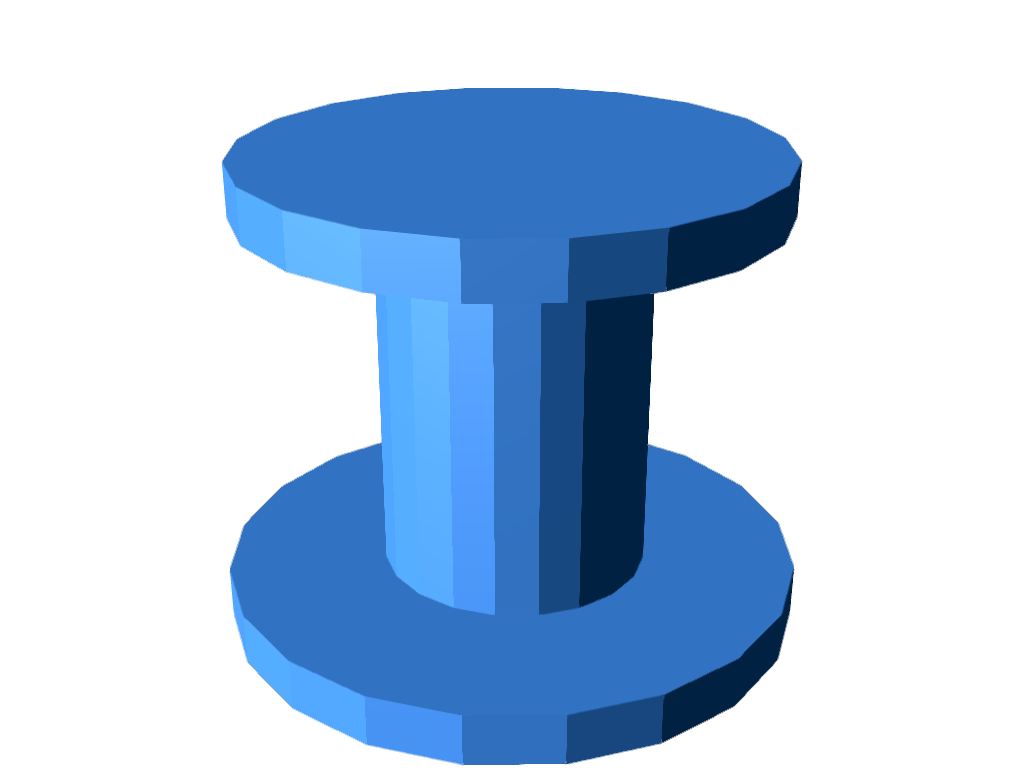

CAD-Custom parts and enclosures
STL, ask in comments for download, or use linked github
Funky Borwo-Allis (5) (3).stl
Sep 02,2025
239 views
WICK, Solder Wire, Tin spool holder
WICK, Solder Wire, Tin spool holder. Print setting below.
