Simple NE5532 Stereo Preamplifier

Need a simple stereo preamplifier for a set of power amplifiers? Here's the solution. Based on an NE5532 dual opamp, this preamp will provide around 5.5 of voltage gain together with a volume control to pickle any power amplifiers you wish. R1, ZD1 and R2, ZD2 provide a regulated voltage supply of +/-12V to U1, the NE5532, so the DC input (J1) can be integrated with the power amplifiers main "high" supply voltage, without any need to regulate it down.

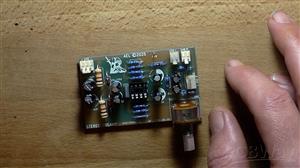

Link to my video building the PCB:

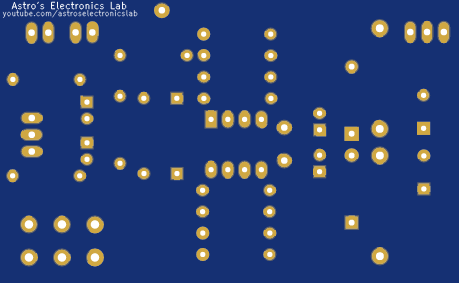

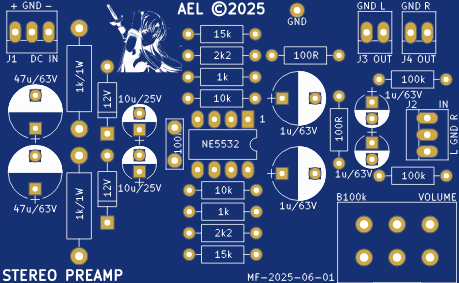

Schematic and Layout

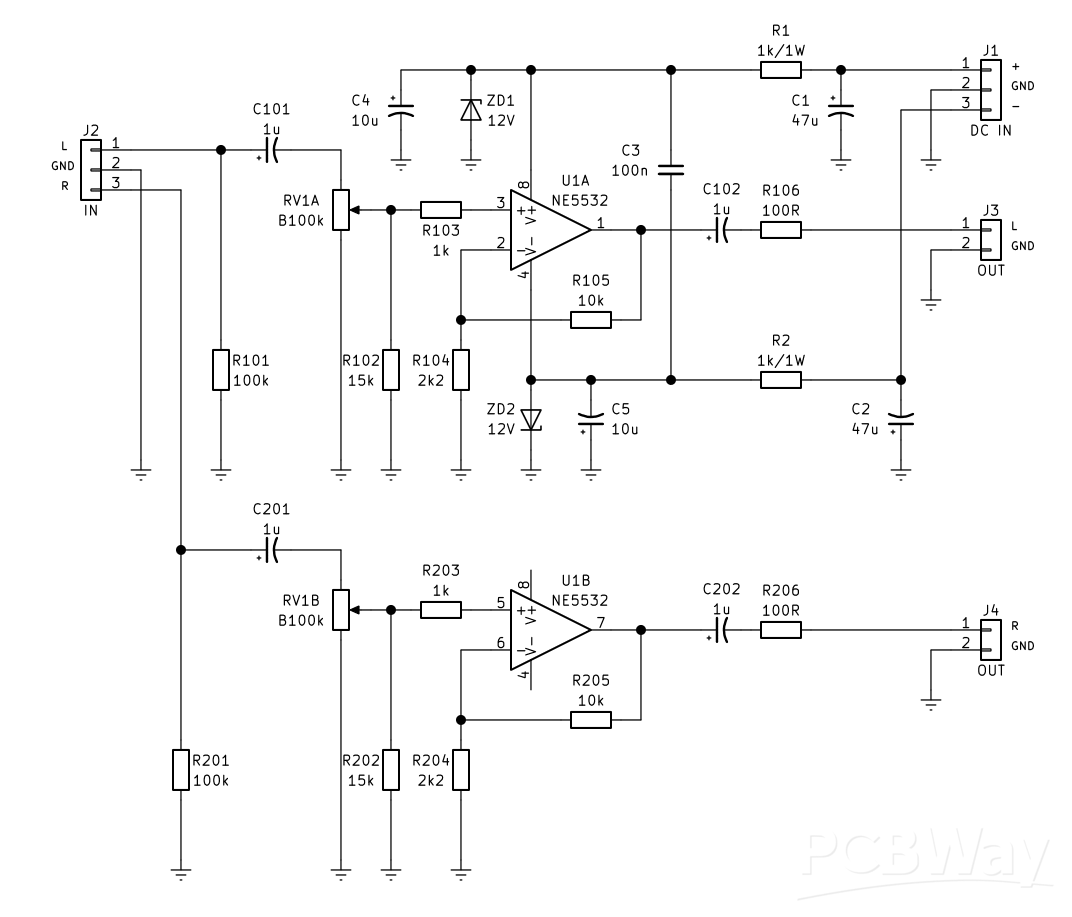

Schematic


Download Gerbers Download BOM(Bill of materials)

Jun 20,2025

932 views

Simple NE5532 Stereo Preamplifier

1 Layers PCB 69.52 x 42.845 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen

Add a simple preamplifier with volume control to any power amplifier(s).
