This project presents a compact and reliable DIY buzzer module designed to provide clear audible alerts and notifications in embedded systems. Built to work seamlessly with both 3.3 V and 5 V logic levels, the module is ideal for use with popular microcontrollers such as Arduino, ESP32, and STM32, making it a versatile building block for a wide range of projects.

At the core of the design is an active buzzer, which simplifies control by generating sound as soon as a logic HIGH signal is applied. To ensure clean and safe switching from the microcontroller, the buzzer is driven through an NPN transistor, allowing the MCU pin to control the buzzer without directly handling the load current. This approach improves reliability and protects the controller, especially in long-running or automation-focused applications.

The module operates comfortably across a 3.3 V to 5 V DC supply range, drawing a typical current of around 30 mA and producing a sound output of approximately 85 dB, which is loud enough for alerts, warnings, and status indications in indoor environments. Because the trigger input is logic-level compatible, the buzzer can be driven directly from GPIO pins without additional components.

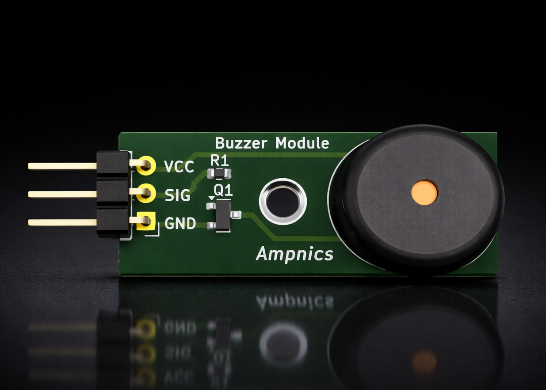

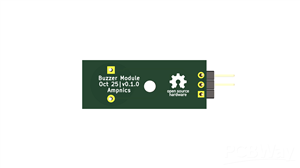

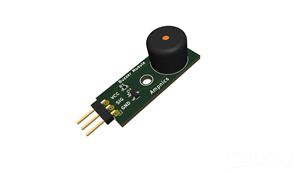

From a hardware perspective, the PCB is intentionally kept simple and compact, designed as a single-layer board using KiCad 9.0.1. Clear labeling and minimal components make the module easy to assemble, debug, and integrate into larger systems. Its small footprint allows it to fit neatly into enclosures, control panels, or custom PCBs.

This buzzer module is well suited for applications such as system status indicators, error alerts, timers, alarms, and DIY automation projects. It also serves as a great reference design for beginners learning about transistor-driven outputs and for experienced designers looking for a clean, reusable buzzer solution. Overall, this DIY buzzer hardware design demonstrates how a simple circuit, when thoughtfully laid out, can become a dependable and reusable module for countless embedded applications.

Credit & Acknowledgement

Complete Design & Engineering Credit: Ampnics (This project is shared for educational and community reference purposes)
