Description

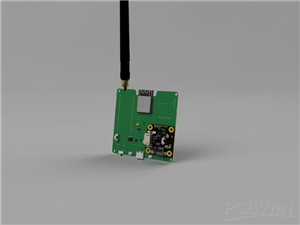

Forest Guard – Node (Transmitter) – Community Innovation Share

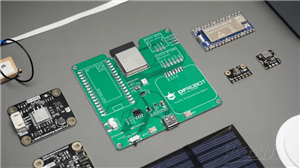

This project introduces the Forest Guard Monitoring Node, a compact and autonomous transmitter designed for deployment deep inside forest regions where internet and cellular connectivity are unavailable. The node operates independently using solar power and communicates over long distances using LoRa, forming a resilient mesh network. By performing edge AI processing directly on the node, critical events such as gunshots and fire-related anomalies can be detected locally, ensuring fast response while minimizing power consumption and unnecessary data transmission.
Project Overview

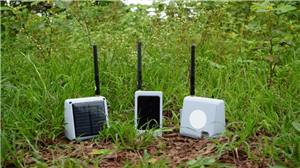

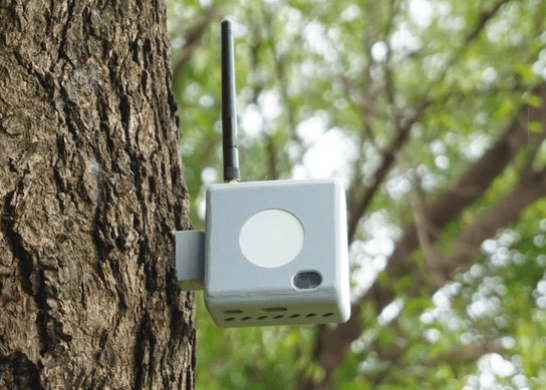

The Forest Guard Node acts as the sensing and intelligence layer of the system. Each node continuously monitors its surroundings, processes sensor data locally, and transmits only meaningful events to the gateway.
Key Features
- Solar-powered, low-power autonomous operation
- Long-range LoRa wireless communication
- Edge AI–based gunshot and fire detection
- Mesh networking support
- Designed for remote, off-grid environments
Applications
- Forest and wildlife protection
- Anti-poaching surveillance
- Early fire detection systems
- Remote environmental monitoring
Why This Node Matters
Traditional monitoring systems fail in remote forests due to power and connectivity limitations. This node is designed to survive and operate independently for long periods, making large-scale forest monitoring both practical and scalable. The node is built on a custom PCB optimized for low power consumption and reliable RF performance, making it suitable for long-term outdoor deployment.
Credit & Acknowledgement
This project is shared for educational and community reference purposes.
System Concept & Node Design: Mukesh Sankhla
Community Shared By: Bholu
Part 2 – Gateway (Receiver): Check here
Code
Node
C/C++
#define EIDSP_QUANTIZE_FILTERBANK 0
#include <Arduino.h>
#include <Wire.h>
#include <HardwareSerial.h>
#include <Adafruit_NeoPixel.h>
#include <driver/i2s.h>
#include <Forest_Guard_Gunshot_Detection__inferencing.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
// -------------------------------
// User Config
// -------------------------------
#define NODE_ID "01"
// If GNSS hardware is connected set true, else false (optional module)
static const bool GNSS_AVAILABLE = true;
// Fallback / initial location (used when GNSS_AVAILABLE == false)
static const float INITIAL_LAT = 17.6783352f;
static const float INITIAL_LON = 77.6058542f;
// LoRa UART (Waveshare RP2040 LoRa w/ Mestastics)
HardwareSerial LORA(1);
#define LORA_TX_PIN 17
#define LORA_RX_PIN 16
#define LORA_BAUD 115200
// NeoPixel
#define NUM_LEDS 1
#define LED_PIN 6
Adafruit_NeoPixel led(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);
uint8_t ledBrightness = 255;
// Smoke sensor
#define SMOKE_PIN 5 // GPIO 5 analog
static const int SMOKE_SAMPLES = 4;
static const int SMOKE_THRESHOLD = 1000;
static const int SMOKE_HYST = 60;
// Cadence
static const uint32_t ENV_MS = 10000UL;
static const uint32_t REG_MS = 5000UL;
static const uint32_t EVENT_MS = 5000UL; // repeat while latched
static const uint32_t GNSS_TRY_MS = 15000UL; // try GNSS periodically
// Gunshot
static const float GUN_TRIGGER = 0.90f; // EI score threshold
static const float SMOOTH_ALPHA = 0.60f; // EMA for scores
// I2S / audio
const i2s_port_t I2S_PORT = I2S_NUM_0;
constexpr int SAMPLE_RATE = EI_CLASSIFIER_FREQUENCY;
constexpr bool MIC_ON_RIGHT = false;
constexpr int DMA_BUF_COUNT = 8; // 6–12 typical
constexpr int DMA_BUF_LEN = 256; // frames per DMA buffer (32-bit frames)
// Convert 32-bit I2S frames to 16-bit PCM using right shift
// Adjust shift (8–16) based on your mic gain to avoid clipping / noise floor
constexpr uint8_t AUDIO_SHIFT = 11; // same as your working example
#define I2S_BCK D11
#define I2S_WS D10
#define I2S_SD D12
// DFRobot sensors
#include "DFRobot_EnvironmentalSensor.h"
#include "DFRobot_GNSS.h"
DFRobot_EnvironmentalSensor environment(SEN050X_DEFAULT_DEVICE_ADDRESS, &Wire);
DFRobot_GNSS_I2C gnss(&Wire, GNSS_DEVICE_ADDR);
// -------------------------------
/* State */
// -------------------------------
volatile bool registered = false;
volatile bool fireLatched = false;
volatile bool gunLatched = false;
volatile float lastGunScore = 0.0f; // now stores *smoothed* Gun score
volatile int lastSmokeAvg = 0;
enum EventType : uint8_t { EVT_NONE, EVT_FIRE, EVT_GUN };
volatile EventType currentEvt = EVT_NONE;
volatile int currentEvtId = -1; // 0..100
portMUX_TYPE mux = portMUX_INITIALIZER_UNLOCKED;
// GNSS
volatile bool gnssUp = false;
volatile uint8_t satsUsed = 0;
// timers
uint32_t tLastEnv = 0;
uint32_t tLastEvent = 0;
uint32_t tLastReg = 0;
uint32_t tLastGnss = 0;
uint32_t tLastLed = 0;
// LED helpers
inline void ledShow(uint8_t r, uint8_t g, uint8_t b) { led.setPixelColor(0, led.Color(r,g,b)); led.show(); }
void ledBreath(uint32_t now, uint8_t r, uint8_t g, uint8_t b, uint16_t periodMs = 1500) {
uint16_t t = now % periodMs;
uint8_t bri = (t < periodMs/2) ? (t * 255) / (periodMs/2) : ((periodMs - t) * 255) / (periodMs/2);
led.setPixelColor(0, led.Color((r*bri)/255, (g*bri)/255, (b*bri)/255));
led.show();
}
uint32_t greenPulseUntil = 0;
// -------------------------------
// LoRa helpers (robust frame extraction)
// -------------------------------
String inBuf;
bool readLoraFrame(String &out) {
while (LORA.available()) {
char c = (char)LORA.read();
if (c == '#') { inBuf = "#"; }
else if (inBuf.length()) {
inBuf += c;
if (c == '*') {
out = inBuf;
inBuf = "";
return true;
}
if (inBuf.length() > 128) inBuf.remove(0, 64); // keep it bounded
}
}
return false;
}
inline void loraPrint(const char *s) { LORA.print(s); }
inline void loraPrintln(const char *s) { LORA.println(s); }
// -------------------------------
// Telemetry senders
// -------------------------------
void sendEnv() {
float tempC = environment.getTemperature(TEMP_C);
float humidity = environment.getHumidity();
float uv = environment.getUltravioletIntensity(eS12SD);
float lux = environment.getLuminousIntensity();
float pressure = environment.getAtmospherePressure(HPA);
float altitude = environment.getElevation();
static char buf[128];
snprintf(buf, sizeof(buf), "#E,%s,%.1f,%.1f,%.2f,%.0f,%.1f,%.1f*",
NODE_ID, tempC, humidity, uv, lux, pressure, altitude);
loraPrintln(buf);
greenPulseUntil = millis() + 1200;
}
void sendLoc(float latDeg, float lonDeg) {
static char buf[96];
snprintf(buf, sizeof(buf), "#L,%s,%.6f,%.6f*", NODE_ID, latDeg, lonDeg);
loraPrintln(buf);
greenPulseUntil = millis() + 1200;
}
void sendFireEvent() {
static char buf[128];
int smoke = lastSmokeAvg;
int id;
portENTER_CRITICAL(&mux);
id = currentEvtId;
portEXIT_CRITICAL(&mux);
if (gnssUp && satsUsed > 3) {
sTim_t utc = gnss.getUTC();
sTim_t date = gnss.getDate();
if (utc.hour || utc.minute || utc.second) {
snprintf(buf, sizeof(buf), "#F+%d,%s,%d,%04d/%02d/%02d,%02d:%02d:%02d*",
id, NODE_ID, smoke, date.year, date.month, date.date,
utc.hour, utc.minute, utc.second);
loraPrintln(buf); return;
}
}
snprintf(buf, sizeof(buf), "#F+%d,%s,%d,NT*", id, NODE_ID, smoke);
loraPrintln(buf);
}
void sendGunEvent() {
static char buf[128];
float score;
int id;
portENTER_CRITICAL(&mux);
score = lastGunScore; id = currentEvtId;
portEXIT_CRITICAL(&mux);
if (gnssUp && satsUsed > 3) {
sTim_t utc = gnss.getUTC();
sTim_t date = gnss.getDate();
if (utc.hour || utc.minute || utc.second) {
snprintf(buf, sizeof(buf), "#G+%d,%s,%.2f,%04d/%02d/%02d,%02d:%02d:%02d*",
id, NODE_ID, score, date.year, date.month, date.date,
utc.hour, utc.minute, utc.second);
loraPrintln(buf); return;
}
}
snprintf(buf, sizeof(buf), "#G+%d,%s,%.2f,NT*", id, NODE_ID, score);
loraPrintln(buf);
}
// -------------------------------
// Sensors
// -------------------------------
bool tryInitEnv() { for (int i=0;i<5;i++){ if (environment.begin() == 0) return true; delay(200);} return false; }
bool tryInitGnss() {
if (!GNSS_AVAILABLE) return false;
for (uint8_t i=0;i<10;i++) {
if (gnss.begin()) { gnss.enablePower(); gnss.setGnss(eGPS_BeiDou_GLONASS); gnss.setRgbOn(); return true; }
delay(300);
}
return false;
}
bool getGnssLatLon(double &lat, double &lon) {
sLonLat_t la = gnss.getLat();
sLonLat_t lo = gnss.getLon();
lat = la.latitudeDegree; lon = lo.lonitudeDegree;
if (lat <= -90.0 || lat >= 90.0) return false;
if (lon <= -180.0 || lon >= 180.0) return false;
return true;
}
int readSmokeAvg() {
long sum = 0;
for (int i=0;i<SMOKE_SAMPLES;i++){ sum += analogRead(SMOKE_PIN); delayMicroseconds(400); }
return (int)(sum / SMOKE_SAMPLES);
}
bool smokeTriggered(int avg) {
static bool above=false;
if (!above && avg >= SMOKE_THRESHOLD) above = true;
else if (above && avg <= (SMOKE_THRESHOLD - SMOKE_HYST)) above = false;
return above;
}
// -------------------------------
// I2S init/deinit (Edge Impulse)
// -------------------------------
static int16_t *g_win = nullptr; // EI window (int16 mono)
static const size_t I2S_READ_CHUNK_FRAMES = 256; // DMA read granularity (32-bit frames)
static uint32_t i2s_raw[I2S_READ_CHUNK_FRAMES];
static int ei_get_data(size_t offset, size_t length, float *out_ptr) {
if (!g_win) return 0;
numpy::int16_to_float(&g_win[offset], out_ptr, length);
return 0;
}
static int i2s_init(uint32_t sampling_rate) {
i2s_config_t i2s_config = {
.mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX),
.sample_rate = (int)sampling_rate,
.bits_per_sample = I2S_BITS_PER_SAMPLE_32BIT,
.channel_format = MIC_ON_RIGHT ? I2S_CHANNEL_FMT_ONLY_RIGHT : I2S_CHANNEL_FMT_ONLY_LEFT,
.communication_format = (i2s_comm_format_t)(I2S_COMM_FORMAT_I2S | I2S_COMM_FORMAT_I2S_MSB),
.intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
.dma_buf_count = DMA_BUF_COUNT,
.dma_buf_len = DMA_BUF_LEN,
.use_apll = false,
.tx_desc_auto_clear = false,
.fixed_mclk = 0
};
i2s_pin_config_t pin_config = {
.bck_io_num = I2S_BCK,
.ws_io_num = I2S_WS,
.data_out_num = -1,
.data_in_num = I2S_SD
};
if (i2s_driver_install(I2S_PORT, &i2s_config, 0, nullptr) != ESP_OK) return ESP_FAIL;
if (i2s_set_pin(I2S_PORT, &pin_config) != ESP_OK) return ESP_FAIL;
if (i2s_zero_dma_buffer(I2S_PORT) != ESP_OK) return ESP_FAIL;
return ESP_OK;
}
static int i2s_deinit(void) { i2s_driver_uninstall(I2S_PORT); return 0; }
// Local helper to convert 32-bit I2S frame to int16 with gain shift
static inline int16_t s32_to_s16(int32_t s32) {
return (int16_t)(s32 >> AUDIO_SHIFT);
}
// -------------------------------
// Core 1: Edge Impulse loop (fixed capture + decision)
// -------------------------------
static void taskAudio(void *arg) {
(void)arg;
// Allocate EI window (int16 mono)
const uint32_t n_samples = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
int16_t *win = (int16_t*)malloc(n_samples * sizeof(int16_t));
if (!win) { vTaskDelete(nullptr); }
g_win = win;
// Init I2S
if (i2s_init(SAMPLE_RATE) != ESP_OK) { vTaskDelete(nullptr); }
// Smoothing across all labels
bool smoothInit = false;
float smooth[EI_CLASSIFIER_LABEL_COUNT] = {0};
int gunLabel = -1;
// DMA read buffer: read 32-bit frames, then convert to int16 with right-shift
static const size_t I2S_READ_CHUNK_FRAMES = 256;
uint32_t i2s_raw[I2S_READ_CHUNK_FRAMES];
uint32_t idx = 0;
size_t bytes_read = 0;
while (true) {
// Fill the EI window from 32-bit I2S frames
while (idx < n_samples) {
esp_err_t r = i2s_read(I2S_PORT, (void*)i2s_raw, sizeof(i2s_raw), &bytes_read, portMAX_DELAY);
if (r != ESP_OK || bytes_read == 0) continue;
size_t frames = bytes_read / sizeof(uint32_t);
for (size_t i = 0; i < frames && idx < n_samples; ++i) {
int32_t s32 = (int32_t)i2s_raw[i];
win[idx++] = s32_to_s16(s32); // uses AUDIO_SHIFT internally
}
}
// Full window captured; reset for the next one immediately
idx = 0;
// Do not run EI until the node has registered
if (!registered) {
// Drop the window and keep capturing
continue;
}
// Wrap buffer for EI
signal_t signal;
signal.total_length = n_samples;
signal.get_data = &ei_get_data;
ei_impulse_result_t result = { 0 };
EI_IMPULSE_ERROR e = run_classifier(&signal, &result, false);
if (e != EI_IMPULSE_OK) {
// If classification fails, just continue with next window
continue;
}
// Resolve the "Gun" label index once
if (gunLabel < 0) {
for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
if (strcmp(result.classification[ix].label, "Gun") == 0) { gunLabel = ix; break; }
}
}
// Initialize or update exponential smoothing over all labels
if (!smoothInit) {
for (size_t i=0;i<EI_CLASSIFIER_LABEL_COUNT;i++) {
smooth[i] = result.classification[i].value;
}
smoothInit = true;
} else {
for (size_t i=0;i<EI_CLASSIFIER_LABEL_COUNT;i++) {
smooth[i] = SMOOTH_ALPHA * result.classification[i].value
+ (1.0f - SMOOTH_ALPHA) * smooth[i];
}
}
// Top-1 (smoothed)
size_t best_ix = 0; float best_val = smooth[0];
for (size_t i=1;i<EI_CLASSIFIER_LABEL_COUNT;i++) {
if (smooth[i] > best_val) { best_val = smooth[i]; best_ix = i; }
}
// Smoothed "Gun" score
float gun_smoothed = (gunLabel >= 0) ? smooth[gunLabel] : 0.0f;
// Share score & possibly latch event
portENTER_CRITICAL(&mux);
lastGunScore = gun_smoothed; // report the smoothed value upstream
bool allowNewEvent = (!gunLatched && !fireLatched && currentEvt == EVT_NONE);
bool isGunTop = (gunLabel >= 0) && (best_ix == (size_t)gunLabel);
if (allowNewEvent && isGunTop && gun_smoothed >= GUN_TRIGGER) {
gunLatched = true;
currentEvt = EVT_GUN;
currentEvtId = (int)(esp_random() % 101);
// LED breath switches to red via main loop while event is latched
}
portEXIT_CRITICAL(&mux);
}
}
// -------------------------------
// Core 0: Node task
// -------------------------------
static void taskNode(void *arg) {
(void)arg;
Wire.begin();
led.begin(); led.setBrightness(ledBrightness); ledShow(0,0,0);
LORA.begin(LORA_BAUD, SERIAL_8N1, LORA_RX_PIN, LORA_TX_PIN);
// Initialize sensors
(void)tryInitEnv();
gnssUp = tryInitGnss();
// Immediately show initial location (fallback if no GNSS)
if (!gnssUp && GNSS_AVAILABLE == false) {
sendLoc(INITIAL_LAT, INITIAL_LON);
}
tLastReg = millis() - REG_MS; // send first registration right away
tLastEnv = millis();
// Main loop
while (true) {
uint32_t now = millis();
// LED
if (now - tLastLed >= 20) {
tLastLed = now;
if (!registered) ledBreath(now, 0, 0, 255); // blue while waiting for GA
else if (currentEvt != EVT_NONE) ledBreath(now, 255, 0, 0); // red while event
else if (greenPulseUntil > now) ledBreath(now, 0, 255, 0); // green pulse after data send
else ledShow(0,0,0);
}
// Parse inbound LoRa frames
String frame;
while (readLoraFrame(frame)) {
int hash = frame.indexOf('#');
int star = frame.lastIndexOf('*');
if (hash < 0 || star <= hash) continue;
String body = frame.substring(hash + 1, star);
body.trim();
// ACKS from Gateway
if (body.equals(String(NODE_ID) + "+OK")) {
registered = true;
greenPulseUntil = now + 1500;
}
else if (body.equals(String(NODE_ID) + "+C")) {
// Clear current event
portENTER_CRITICAL(&mux);
fireLatched = false; gunLatched = false;
currentEvt = EVT_NONE; currentEvtId = -1;
portEXIT_CRITICAL(&mux);
greenPulseUntil = now + 1500;
}
}
// Registration heartbeat
if (!registered && (now - tLastReg >= REG_MS)) {
tLastReg = now;
char buf[24]; snprintf(buf, sizeof(buf), "#%s*", NODE_ID);
loraPrintln(buf);
}
if (registered) {
// Periodic ENV + (maybe) LOC
if (now - tLastEnv >= ENV_MS) {
tLastEnv = now;
sendEnv();
if (gnssUp && (now - tLastGnss >= GNSS_TRY_MS)) {
tLastGnss = now;
satsUsed = gnss.getNumSatUsed();
double lat, lon;
if (satsUsed > 3 && getGnssLatLon(lat, lon)) {
sendLoc((float)lat, (float)lon);
}
} else if (!gnssUp && GNSS_AVAILABLE == false) {
sendLoc(INITIAL_LAT, INITIAL_LON);
}
}
// Fire detection (simple analog threshold with hysteresis)
int avg = readSmokeAvg();
lastSmokeAvg = avg;
bool trig = smokeTriggered(avg);
if (trig && !fireLatched && currentEvt == EVT_NONE && !gunLatched) {
portENTER_CRITICAL(&mux);
fireLatched = true;
currentEvt = EVT_FIRE;
currentEvtId = (int)(esp_random() % 101);
portEXIT_CRITICAL(&mux);
}
// Event cadence (repeat every 10 s)
if (currentEvt != EVT_NONE && (now - tLastEvent >= EVENT_MS)) {
tLastEvent = now;
if (currentEvt == EVT_FIRE) sendFireEvent();
else sendGunEvent();
}
}
vTaskDelay(1);
}
}
// -------------------------------
// Arduino entry points
// -------------------------------
void setup() {
// Serial.begin(115200);
// delay(500);
pinMode(SMOKE_PIN, INPUT);
xTaskCreatePinnedToCore(taskNode, "node_task", 8192, nullptr, 10, nullptr, 0);
xTaskCreatePinnedToCore(taskAudio, "audio_task", 8192, nullptr, 11, nullptr, 1);
}
void loop() { vTaskDelay(1000); }
#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid Edge Impulse model for microphone sensor."
#endif
Schematic and Layout
Schematic.pdf
CAD-Custom parts and enclosures
Housing.stl
Difuser.stl
Cover.stl
Clip-Mount.stl
Clip-Holder.stl
Dec 28,2025
15 views
Forest Guard – Node (Transmitter) – Community Innovation Share
Forest Guard: A Decentralized Edge-AI LoRa Mesh Network for Forest Surveillance
15
0
1
Published: Dec 28,2025
Standard PCB
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/12/30 (GMT+8)
File update record
2025-12-3012:13:20
Parts List (BOM) is updated.
2025-12-2916:08:35
CAD or technical drawing file is updated.
2025-12-2812:58:24
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
Raspberry Pi 5 7 Inch Touch Screen IPS 1024x600 HD LCD HDMI-compatible Display for RPI 4B 3B+ OPI 5 AIDA64 PC Secondary Screen（Without Speaker）
BUY NOW
- Comments(1)
- Likes(0)
Upload photo
You can only upload 5 files in total. Each file cannot exceed 2MB. Supports JPG, JPEG, GIF, PNG, BMP
0 / 10000
More by Nirmal Maa
-
Tiny Power meter V2 – Community Innovation Share
Tiny Power Meter V2 is a compact and practical power measurement device designed to work with XT60 c...
-
VC-02 Module Based Home Automation
In this guide, I’ll take you through the process of building a project using a custom-designed PCB, ...
-
Forest Guard – Gateway (Receiver) – Community Innovation Share
This project presents the Forest Guard Gateway, a receiver unit designed to collect data from multip...
-
Forest Guard – Node (Transmitter) – Community Innovation Share
This project introduces the Forest Guard Monitoring Node, a compact and autonomous transmitter desig...
-
Plug and Play USB-C PD WLED Driver – Community Innovation Share
This project focuses on building a compact WLED driver PCB with USB-C Power Delivery (PD) support. I...
-
ESP32-Based Drone PCB – Community Innovation Share
Shared by: Bholu, A B-Tech Student in University of California, Los Angeles (UCLA)Original Design &a...
-
RGB tube light PCB - Panalize under 100*100mm
I'm excited to unveil my latest PCB design—a game-changer for standard tube lights! This custom-desi...
-
DIY low cost Smart watch
Hello, PCBWay Community! I am thrilled to share my Homemade Smartwatch project with all of you. This...
-
4x2 Channel Remote Controller – Receiver Part
The receiver circuit for this 4x2 channel remote controller enables reliable wireless communication ...
-
DIY Low Cost Transmitter
Introducing a versatile 4x2 channel remote controller, ideal for managing RC toys, robotics, Arduino...
-
DIY Smartwatch Using ESP8266
This project demonstrates how to build a basic smartwatch using the ESP8266 microcontroller. The wat...
-
Offline Voice-Controlled Home Automation System
In this project, we’ll explore an offline voice-controlled home automation system that allows you to...
-
Advance Arduino Nano Board
Presenting the Arduino Nano – a modern and smart version of the Arduino Nano with an array of powerf...
-
VC-02 Module Based Home Automation second version
I’m excited to share my latest home automation system, which offers complete offline voice control u...
-
I build Split clock using Arduino
My split clock project is a fascinating endeavor whereI combined mine passion for electronics and pr...
-
Notify Me using ESP Now Communication
I built this coolest device using node MCU. This is a Notification Sending device with the help of N...
-
Alexa Voice Command Based Ultra Smart Home Automation using Nano ESP32
Hey Guys, Today's In this project I'm going to build Ultra Smart Home Automation Using Arduino Nano ...
You may also like
-
ESP32-C3 BLE Keyboard - Battery Powered with USB-C Charging
72 0 0 -
Tiny Power meter V2 – Community Innovation Share
40 0 0 -
-
mammoth-3D SLM Voron Toolhead – Manual Drill & Tap Edition
337 0 0 -
-
-
-
Tester for Touch Screen Digitizer without using microcontroller
529 2 2 -
Audio reactive glow LED wristband/bracelet with NFC / RFID-Tags
492 0 1
