Description

Forest Guard – Gateway (Receiver) – Community Innovation Share

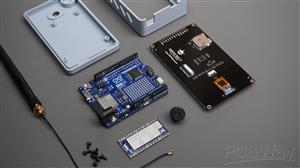

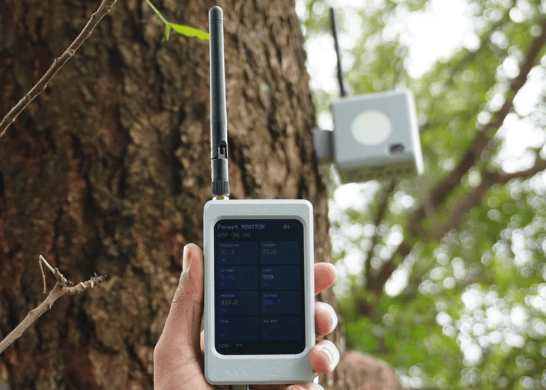

This project presents the Forest Guard Gateway, a receiver unit designed to collect data from multiple forest monitoring nodes and act as a bridge between offline LoRa networks and online cloud platforms. The gateway ensures that critical forest data is never lost by storing information locally when offline and automatically syncing it once internet connectivity becomes available.

Project Overview

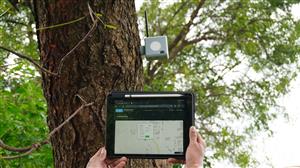

The Forest Guard Gateway listens to incoming LoRa packets from deployed nodes, aggregates the data, and forwards it to a cloud dashboard whenever connectivity permits. This enables real-time alerts, long-term data analysis, and centralized monitoring.

Key Features

Receives data from multiple LoRa nodes
Offline data buffering and delayed sync
Cloud integration for dashboards and alerts
Scalable gateway architecture
Reliable operation in remote locations

Applications

Forest department monitoring centers
Wildlife protection systems
Disaster and fire alert networks
Large-area environmental data collection

Why This Gateway Matters

Without reliable connectivity, valuable data is often lost. This gateway ensures continuity by acting as a smart bridge between remote sensor networks and modern cloud infrastructure.

Credit & Acknowledgement

This project is shared for educational and community reference purposes.

System Concept & Gateway Design: Mukesh Sankhla

Community Shared By: Bholu

Part 1 – Node (Transmitter): Check here

Code

C/C++

/**

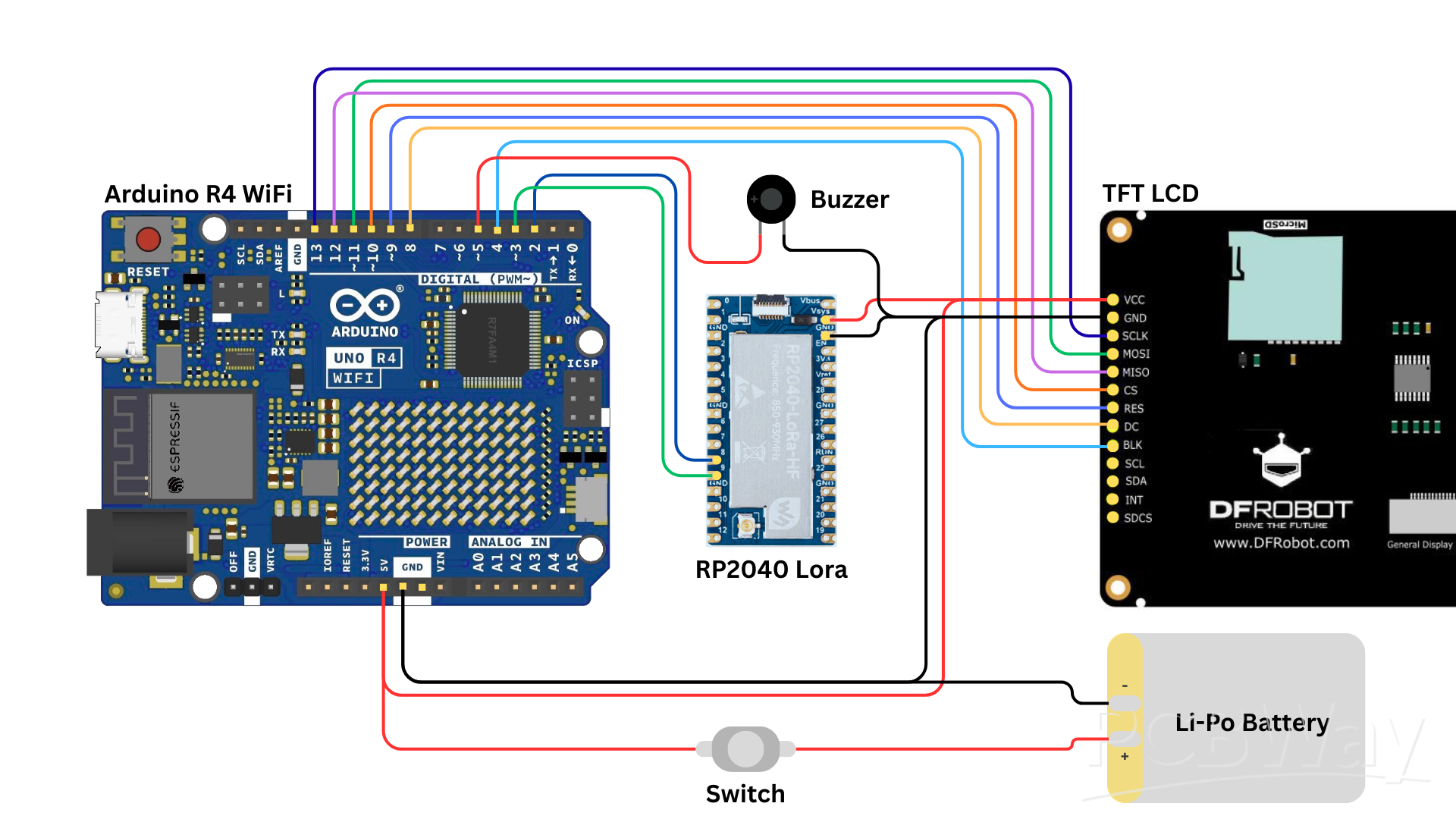

 * Forest Guard - Gateway (GA) — Arduino UNO R4 WiFi + ILI9488 TFT
 * -------------------------------------------------------------------------------------------------
 * Responsibilities:
 *  - Parse LoRa frames strictly between '#' and '*' (ignore garbage)
 *  - Handle node registration (#<NODE_ID>*  ->  reply #<NODE_ID>+OK*)
 *  - Show live ENV/LOC and events on TFT (DFRobot style UI)
 *  - Keep local NTP time; only push to Firebase when NTP epoch >= Jan 1, 2025
 *  - Push ENV and LOC only when changed (ENV delta > +/-1.0; LOC changed by ~> 11m)
 *  - On event (#F+id... / #G+id...):
 *      1) set Firebase /nodes/<id>/meta/Event = true
 *      2) non-blocking buzzer while true
 *      3) when false (you clear in dashboard), broadcast #<NODE_ID>+C* to clear NA
 *      4) de-duplicate events (id), and re-ACK CLEAR if NA keeps repeating same id
 */

#include "DFRobot_UI.h"
#include "Arduino.h"
#include "DFRobot_GDL.h"
#include "DFRobot_Touch.h"

// --- Fix for min/max macro clash with <algorithm> on UNO R4 toolchain ---
#ifdef min
#undef min
#endif
#ifdef max
#undef max
#endif

#include <WiFiS3.h>
#include <ArduinoHttpClient.h>
#include <WiFiUdp.h>
#include <NTPClient.h>
#include <math.h>

// ---- Fill these ----
const char* WIFI_SSID = "Makerbrains_2.4G";
const char* WIFI_PASS = "Balaji2830";

// Firebase RTDB host WITHOUT "https://", and DB secret / OAuth token
const char* FB_HOST = "forest-guard-532f5-default-rtdb.asia-southeast1.firebasedatabase.app"; // e.g. "myproj.firebaseio.com"
const char* FB_AUTH = "jrwAbSXtRRO950ZjTTYXhl2Hg9i8Sd3AW20VKaPW";

WiFiSSLClient fbClient;
HttpClient     fbHttp(fbClient, FB_HOST, 443);

WiFiUDP ntpUDP;
NTPClient ntp(ntpUDP, "pool.ntp.org", 0 /*UTC*/, 10 * 1000);

// NTP is considered synced only after this epoch (2025-01-01 UTC)
const unsigned long EPOCH_2025_01_01 = 1735689600UL;

//-------------------------------------
// TFT + Touch
//-------------------------------------
#define TFT_DC  8
#define TFT_CS  10
#define TFT_RST 9

DFRobot_Touch_GT911 touch;
DFRobot_ILI9488_320x480_HW_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
DFRobot_UI ui(&screen, &touch);

//-------------------------------------
// LoRa UART
//-------------------------------------
#define LORA_RX_PIN 2
#define LORA_TX_PIN 3
//#define USE_HWSERIAL   // Prefer enabling this (Serial1 on D0/D1) if you can

#ifdef USE_HWSERIAL
  #define LORA_PORT Serial1
#else
  #include <SoftwareSerial.h>
  SoftwareSerial LORA_PORT(LORA_RX_PIN, LORA_TX_PIN);
#endif

//-------------------------------------
// Buzzer
//-------------------------------------
#define BUZZER_PIN 5

//-------------------------------------
// Colors (same style as your UI)
///////////////////////////////////////
#define COLOR_BG        0x0841
#define COLOR_CARD_BG   0x2124
#define COLOR_TITLE     0xFFFF
#define COLOR_VALUE     0x07FF
#define COLOR_UNIT      0x8410
#define COLOR_BORDER    0x39C7
#define COLOR_ALERT     0xF800
#define COLOR_TEMP      0xFD20
#define COLOR_HUMI      0x07E0
#define COLOR_UV        0x780F
#define COLOR_LIGHT     0x07FF
#define COLOR_PRESS     0xFFE0
#define COLOR_ALT       0xF81F
#define COLOR_OK        0x07E0
#define COLOR_WARN      0xFD20

//-------------------------------------
// UI layout
//-------------------------------------
#define CARD_WIDTH      140
#define CARD_HEIGHT     80
#define CARD_MARGIN     10
#define HEADER_HEIGHT   50

//-------------------------------------
// Data models
//-------------------------------------
struct EnvData {
  float t=0, h=0, uv=0, lux=0, p=0, alt=0;
  unsigned long lastUpdateMs = 0;
};
EnvData env;

String lastNodeId = "--";
bool   hasLoc = false;
float  lastLat = 0, lastLon = 0;
unsigned long lastLocUpdateMs = 0;

bool fireActive = false;
bool gunActive  = false;
String fireTimeFromNode = "NT";
String gunTimeFromNode  = "NT";
String gunScoreStr      = "";
int    currentEventId   = -1;     // de-dup
int    lastClearedEventId = -1;

//-------------------------------------
// Firebase helpers
//-------------------------------------
String fbPath(const String &path) {
  String url = "/";
  url += path;
  url += ".json?auth=";
  url += FB_AUTH;
  return url;
}

bool fbPUT(const String &path, const String &json) {
  int r = fbHttp.put(fbPath(path), "application/json", json);
  if (r == 0) {
    int code = fbHttp.responseStatusCode();
    fbHttp.stop();
    return code >= 200 && code < 300;
  }
  fbHttp.stop();
  return false;
}

bool fbPATCH(const String &path, const String &json) {
  int r = fbHttp.patch(fbPath(path), "application/json", json);
  if (r == 0) {
    int code = fbHttp.responseStatusCode();
    fbHttp.stop();
    return code >= 200 && code < 300;
  }
  fbHttp.stop();
  return false;
}

String fbGET(const String &path) {
  String body = "";
  int r = fbHttp.get(fbPath(path));
  if (r == 0) {
    int code = fbHttp.responseStatusCode();
    if (code == 200) body = fbHttp.responseBody();
  }
  fbHttp.stop();
  return body;
}

//-------------------------------------
// Utility: epoch formatting & parsing
//-------------------------------------
String epochToIso(unsigned long epoch) {
  time_t t = (time_t)epoch;
  struct tm *tmv = gmtime(&t);
  char buf[32];
  if (tmv) {
    snprintf(buf, sizeof(buf), "%04d-%02d-%02dT%02d:%02d:%02dZ",
             tmv->tm_year + 1900, tmv->tm_mon + 1, tmv->tm_mday,
             tmv->tm_hour, tmv->tm_min, tmv->tm_sec);
  } else {
    snprintf(buf, sizeof(buf), "1970-01-01T00:00:00Z");
  }
  return String(buf);
}

// days-from-civil (Howard Hinnant) — convert Y/M/D to days since epoch
static long daysFromCivil(int y, unsigned m, unsigned d) {
  y -= m <= 2;
  const int era = (y >= 0 ? y : y-399) / 400;
  const unsigned yoe = (unsigned)(y - era * 400);           // [0, 399]
  const unsigned doy = (153*(m + (m > 2 ? -3 : 9)) + 2)/5 + d-1; // [0, 365]
  const unsigned doe = yoe * 365 + yoe/4 - yoe/100 + doy;  // [0, 146096]
  return era * 146097L + (long)doe - 719468L;              // days since 1970-01-01
}

static unsigned long ymdToEpochUTC(int y, int mon, int day, int hh, int mm, int ss) {
  long days = daysFromCivil(y, (unsigned)mon, (unsigned)day);
  if (days < 0) return 0;
  unsigned long e = (unsigned long)days * 86400UL + (unsigned long)hh * 3600UL + (unsigned long)mm * 60UL + (unsigned long)ss;
  return e;
}

//-------------------------------------
// Firebase write policies (change gates)
//-------------------------------------
const float ENV_DELTA_MIN = 1.0f;
const float LOC_DELTA_MIN = 0.00010f; // ~11 meters

EnvData lastPostedEnv;
bool    havePostedEnv = false;
bool    havePostedLoc = false;
float   lastPostedLat = 0, lastPostedLon = 0;

//-------------------------------------
// NTP gating
//-------------------------------------
bool ntpReady() { return ntp.getEpochTime() >= EPOCH_2025_01_01; }
unsigned long lastNtpUpdate = 0;

//-------------------------------------
// LoRa parsing helpers
//-------------------------------------
String inBuf;
bool readLoraFrame(String &out) {
  while (LORA_PORT.available()) {
    char c = (char)LORA_PORT.read();
    if (c == '#') {
      inBuf = "#";
    } else if (inBuf.length()) {
      inBuf += c;
      if (c == '*') {
        out = inBuf;
        inBuf = "";
        return true;
      }
      if (inBuf.length() > 160) inBuf.remove(0, 80); // keep buffer bounded
    }
  }
  return false;
}

void loraSend(const String &s) {
  LORA_PORT.println(s);
  Serial.print("[GA->LoRa] ");
  Serial.println(s);
}

//-------------------------------------
// UI helpers (kept same style)
//-------------------------------------
void drawRoundedRect(int16_t x, int16_t y, int16_t w, int16_t h, uint16_t color, bool filled = true) {
  if (filled) {
    screen.fillRect(x+2, y, w-4, h, color);
    screen.fillRect(x, y+2, w, h-4, color);
  }
  screen.drawRect(x, y, w, h, color);
}

void drawSensorCard(int16_t x, int16_t y, const char* title, const char* value, const char* unit, uint16_t valueColor, unsigned long /*lastUpdate*/) {
  drawRoundedRect(x, y, CARD_WIDTH, CARD_HEIGHT, COLOR_CARD_BG);
  drawRoundedRect(x, y, CARD_WIDTH, CARD_HEIGHT, COLOR_BORDER, false);
  ui.drawString(x + 10, y + 10, (char*)title, COLOR_TITLE, COLOR_CARD_BG, 1, 0);
  ui.drawString(x + 10, y + 30, (char*)value, valueColor, COLOR_CARD_BG, 2, 0);
  ui.drawString(x + 10, y + 60, (char*)unit, COLOR_UNIT, COLOR_CARD_BG, 1, 0);
}

void drawHeader() {
  screen.fillRect(0, 0, 320, HEADER_HEIGHT, COLOR_BG);
  ui.drawString(15, 20, (char*)"Forest MONITOR", COLOR_TITLE, COLOR_BG, 2, 0);
  ui.drawString(250, 20, (char*)lastNodeId.c_str(), COLOR_VALUE, COLOR_BG, 2, 0);
}

//-------------------------------------
// Non-blocking buzzer
//-------------------------------------
bool buzzerOn = false;
unsigned long buzzerNextToggle = 0;
unsigned long buzzerPeriodMs = 500; // 2 Hz while event active

void buzzerTick(unsigned long now) {
  if (now >= buzzerNextToggle) {
    buzzerOn = !buzzerOn;
    digitalWrite(BUZZER_PIN, buzzerOn ? HIGH : LOW);
    buzzerNextToggle = now + buzzerPeriodMs;
  }
}

//-------------------------------------
// CSV mini-parser
//-------------------------------------
bool parseCSV(const String &s, String out[], int max, int &count) {
  count = 0; int last = 0;
  for (int i=0; i<=s.length(); i++) {
    if (i == s.length() || s.charAt(i) == ',') {
      if (count < max) {
        out[count++] = s.substring(last, i); out[count-1].trim();
      }
      last = i+1;
      if (count >= max) break;
    }
  }
  return count > 0;
}

//-------------------------------------
// Firebase writers (using your schema)
//-------------------------------------
bool postEnvIfChanged() {
  if (!ntpReady()) return false;

  bool changed = !havePostedEnv
    || fabs(env.t   - lastPostedEnv.t)   >= ENV_DELTA_MIN
    || fabs(env.h   - lastPostedEnv.h)   >= ENV_DELTA_MIN
    || fabs(env.uv  - lastPostedEnv.uv)  >= ENV_DELTA_MIN
    || fabs(env.lux - lastPostedEnv.lux) >= ENV_DELTA_MIN
    || fabs(env.p   - lastPostedEnv.p)   >= ENV_DELTA_MIN
    || fabs(env.alt - lastPostedEnv.alt) >= ENV_DELTA_MIN;

  if (!changed) return false;

  unsigned long epoch = ntp.getEpochTime();

  // Your schema: nodes/<nodeId>/env/<epoch>  with keys temp,humi,uvi,li,pres,alt
  String json = String("{\"temp\":") + env.t +
                ",\"humi\":" + env.h +
                ",\"uvi\":"  + env.uv +
                ",\"li\":"   + env.lux +
                ",\"pres\":" + env.p +
                ",\"alt\":"  + env.alt + "}";

  fbPUT(String("nodes/") + lastNodeId + "/env/" + epoch, json);

  lastPostedEnv = env; havePostedEnv = true;

  // meta heartbeat: Event stays as-is, only update lastSeenAt
  fbPATCH(String("nodes/") + lastNodeId + "/meta",
          String("{\"lastSeenAt\":") + epoch + "}");

  return true;
}

bool postLocIfChanged() {
  if (!ntpReady() || !hasLoc) return false;

  bool changed = !havePostedLoc
    || fabs(lastLat - lastPostedLat) >= LOC_DELTA_MIN
    || fabs(lastLon - lastPostedLon) >= LOC_DELTA_MIN;

  if (!changed) return false;

  unsigned long epoch = ntp.getEpochTime();

  // Your schema: nodes/<nodeId>/Loc/<epoch>  with keys lat,lon (capital L in "Loc")
  String json = String("{\"lat\":") + String(lastLat, 6) +
                ",\"lon\":" + String(lastLon, 6) + "}";

  fbPUT(String("nodes/") + lastNodeId + "/Loc/" + epoch, json);

  lastPostedLat = lastLat; lastPostedLon = lastLon; havePostedLoc = true;
  return true;
}

void setFirebaseEventFlag(bool value) {
  if (!ntpReady()) return;
  // Your schema: meta.Event (capital E), and update lastSeenAt
  unsigned long epoch = ntp.getEpochTime();
  String json = String("{\"Event\":") + (value ? "true" : "false") +
                ",\"lastSeenAt\":" + epoch + "}";
  fbPATCH(String("nodes/") + lastNodeId + "/meta", json);
}

// Convert "YYYY/MM/DD" + "HH:MM:SS" to epoch (ms). If "NT", return 0.
unsigned long parseNodeTimeMs(const String &datePart, const String &timePart, bool &ok) {
  ok = false;
  if (datePart == "NT") return 0UL;

  // Expected: YYYY/MM/DD  and HH:MM:SS
  int y = 0, m = 0, d = 0, hh = 0, mm = 0, ss = 0;
  if (datePart.length() >= 10) {
    y = datePart.substring(0,4).toInt();
    m = datePart.substring(5,7).toInt();
    d = datePart.substring(8,10).toInt();
  }
  if (timePart.length() >= 8) {
    hh = timePart.substring(0,2).toInt();
    mm = timePart.substring(3,5).toInt();
    ss = timePart.substring(6,8).toInt();
  }
  if (y < 1970 || m < 1 || d < 1) return 0UL;

  unsigned long epoch = ymdToEpochUTC(y, m, d, hh, mm, ss);
  ok = (epoch > 0);
  return epoch * 1000UL; // store ms like your export
}

void logFireToFirebase(int id, const String &smoke, const String &timeFromNode) {
  if (!ntpReady()) return;

  // timeFromNode is "NT" OR "YYYY/MM/DD HH:MM:SS"
  bool ok = false;
  unsigned long nodeTimeMs = 0;
  int sp = timeFromNode.indexOf(' ');
  if (timeFromNode == "NT") {
    nodeTimeMs = 0;
  } else if (sp > 0) {
    String ds = timeFromNode.substring(0, sp);
    String ts = timeFromNode.substring(sp+1);
    nodeTimeMs = parseNodeTimeMs(ds, ts, ok);
    if (!ok) nodeTimeMs = 0;
  }

  unsigned long epoch = ntp.getEpochTime();
  // Your schema: nodes/<nodeId>/fire/<epoch> { value, NodeTime }
  String json = String("{\"value\":") + smoke +
                ",\"NodeTime\":" + nodeTimeMs + "}";
  fbPUT(String("nodes/") + lastNodeId + "/fire/" + epoch, json);
}

void logGunToFirebase(int id, const String &score, const String &timeFromNode) {
  if (!ntpReady()) return;

  bool ok = false;
  unsigned long nodeTimeMs = 0;
  int sp = timeFromNode.indexOf(' ');
  if (timeFromNode == "NT") {
    nodeTimeMs = 0;
  } else if (sp > 0) {
    String ds = timeFromNode.substring(0, sp);
    String ts = timeFromNode.substring(sp+1);
    nodeTimeMs = parseNodeTimeMs(ds, ts, ok);
    if (!ok) nodeTimeMs = 0;
  }

  unsigned long epoch = ntp.getEpochTime();
  // Your schema: nodes/<nodeId>/gun/<epoch> { score, NodeTime }
  String json = String("{\"score\":") + score +
                ",\"NodeTime\":" + nodeTimeMs + "}";
  fbPUT(String("nodes/") + lastNodeId + "/gun/" + epoch, json);
}

//-------------------------------------
// UI rendering
//-------------------------------------
unsigned long lastUiRefresh = 0;

void renderAll() {
  drawHeader();
  // ENV
  char t[16], h[16], uv[16], lx[16], pp[16], al[16];
  snprintf(t,  sizeof(t),  "%.1f", env.t);
  snprintf(h,  sizeof(h),  "%.1f", env.h);
  snprintf(uv, sizeof(uv), "%.2f", env.uv);
  snprintf(lx, sizeof(lx), "%.0f", env.lux);
  snprintf(pp, sizeof(pp), "%.1f", env.p);
  snprintf(al, sizeof(al), "%.1f", env.alt);
  drawSensorCard(15,   80, "TEMPERATURE", t,  "°C",  COLOR_TEMP,  env.lastUpdateMs);
  drawSensorCard(165,  80, "HUMIDITY",    h,  "%",   COLOR_HUMI,  env.lastUpdateMs);
  drawSensorCard(15,  170, "UV INDEX",    uv, "UV",  COLOR_UV,    env.lastUpdateMs);
  drawSensorCard(165, 170, "LIGHT",       lx, "Lux", COLOR_LIGHT, env.lastUpdateMs);
  drawSensorCard(15,  260, "PRESSURE",    pp, "hPa", COLOR_PRESS, env.lastUpdateMs);
  drawSensorCard(165, 260, "ALTITUDE",    al, "m",   COLOR_ALT,   env.lastUpdateMs);

  // Events
  drawSensorCard(15,  350, "Fire",     fireActive ? "Yes" : "No", fireTimeFromNode.c_str(), COLOR_ALERT, env.lastUpdateMs);
  drawSensorCard(165, 350, "Gun Shot", gunScoreStr.length() ? gunScoreStr.c_str() : (gunActive ? "Yes" : "No"),
                 gunTimeFromNode.c_str(), COLOR_ALERT, env.lastUpdateMs);

  // Location line
  char locLine[64];
  if (hasLoc) snprintf(locLine, sizeof(locLine), "Loc: %.5f, %.5f", lastLat, lastLon);
  else        snprintf(locLine, sizeof(locLine), "Loc: --");
  ui.drawString(15, 440, locLine, COLOR_VALUE, COLOR_BG, 2, 0);

  // Status
  const char *status = (WiFi.status() == WL_CONNECTED) ? (ntpReady() ? "NTP ONLINE      " : "NTP OFFLINE") : "WIFI DISCONNECTED";
  uint16_t sc = (WiFi.status() == WL_CONNECTED) ? (ntpReady() ? COLOR_OK : COLOR_WARN) : COLOR_ALERT;
  ui.drawString(15, 50, (char*)status, sc, COLOR_BG, 2, 0);
}

//-------------------------------------
// Registration handler
//-------------------------------------
void handleRegistrationOrClear(const String &body) {
  // body examples: "01" (registration)  |  "01+C" (clear ack back from us)
  if (body.length() && (lastNodeId == "--" || body == lastNodeId)) {
    // Registration from NA -> send ACK
    String ack = String("#") + body + "+OK*";
    loraSend(ack);
    Serial.println("✓ Registration request -> ACK sent");
  }
}

//-------------------------------------
// Setup & Loop
//-------------------------------------
void setup() {
  Serial.begin(115200);
#ifdef USE_HWSERIAL
  LORA_PORT.begin(115200);
#else
  LORA_PORT.begin(115200);
#endif

  pinMode(BUZZER_PIN, OUTPUT);
  digitalWrite(BUZZER_PIN, LOW);

  ui.begin();
  screen.fillScreen(COLOR_BG);
  drawHeader();

  // Wi-Fi
  Serial.print("Connecting Wi-Fi...");
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  unsigned long t0 = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - t0 < 15000) {
    delay(200);
    Serial.print(".");
  }
  if (WiFi.status() == WL_CONNECTED) Serial.println(" OK");
  else Serial.println(" FAILED");

  // NTP
  ntp.begin();
}

unsigned long lastPollEvent = 0;

void loop() {
  unsigned long now = millis();

  // NTP maintenance (non-blocking)
  if (now - lastNtpUpdate >= 2000) {
    ntp.update();
    lastNtpUpdate = now;
  }

  // Read LoRa frames
  String frame;
  while (readLoraFrame(frame)) {
    int k1 = frame.indexOf('#'); int k2 = frame.lastIndexOf('*');
    if (k1 < 0 || k2 <= k1) continue;
    String body = frame.substring(k1 + 1, k2); body.trim();
    Serial.print("[LoRa] "); Serial.println(body);

    // Registration (#<nodeId>*)
    if (body.indexOf('+') < 0 && body.indexOf(',') < 0) {
      lastNodeId = body;
      handleRegistrationOrClear(body);
      drawHeader();
      continue;
    }

    // ENV  => E,<node>,t,h,uv,lux,p,alt
    if (body.startsWith("E,")) {
      String tok[8]; int n=0; parseCSV(body, tok, 8, n);
      if (n >= 8) {
        lastNodeId = tok[1];
        env.t   = tok[2].toFloat();
        env.h   = tok[3].toFloat();
        env.uv  = tok[4].toFloat();
        env.lux = tok[5].toFloat();
        env.p   = tok[6].toFloat();
        env.alt = tok[7].toFloat();
        env.lastUpdateMs = now;
        if (postEnvIfChanged()) Serial.println("↑ Firebase: ENV updated");
        lastUiRefresh = 0;
      }
      continue;
    }

    // LOC => L,<node>,lat,lon
    if (body.startsWith("L,")) {
      String tok[5]; int n=0; parseCSV(body, tok, 5, n);
      if (n >= 4) {
        lastNodeId = tok[1];
        lastLat = tok[2].toFloat();
        lastLon = tok[3].toFloat();
        hasLoc = true; lastLocUpdateMs = now;
        if (postLocIfChanged()) Serial.println("↑ Firebase: LOC updated");
        lastUiRefresh = 0;
      }
      continue;
    }

    // FIRE => F+id,<node>,smoke,YYYY/MM/DD,HH:MM:SS  or  F+id,<node>,smoke,NT
    if (body.startsWith("F+")) {
      String tok[6]; int n=0; parseCSV(body, tok, 6, n);
      if (n >= 4) {
        int id = tok[0].substring(2).toInt(); // after F+
        String node = tok[1];
        String smoke = tok[2];
        String timeFromNode = (n >= 5) ? (tok[3] + " " + tok[4]) : tok[3]; // NT or date+time

        if (node.length()) lastNodeId = node;

        if (id == lastClearedEventId) {
          // Node missed our CLEAR; re-send CLEAR and skip logging
          String clear = String("#") + node + "+C*"; loraSend(clear);
          Serial.println("Re-ACK CLEAR for stale FIRE event");
        } else if (id != currentEventId) {
          currentEventId = id;
          fireActive = true; gunActive = false;
          fireTimeFromNode = timeFromNode;
          setFirebaseEventFlag(true);
          logFireToFirebase(id, smoke, timeFromNode);
          Serial.print("🔥 FIRE event ");
        } else {
          // duplicate — ignore (we'll CLEAR once dashboard flips Event=false)
          Serial.println("FIRE duplicate (ignored, will re-ACK when cleared).");
        }
        lastUiRefresh = 0;
      }
      continue;
    }

    // GUN => G+id,<node>,score,YYYY/MM/DD,HH:MM:SS  or  G+id,<node>,score,NT
    if (body.startsWith("G+")) {
      String tok[6]; int n=0; parseCSV(body, tok, 6, n);
      if (n >= 4) {
        int id = tok[0].substring(2).toInt();
        String node = tok[1];
        String score = tok[2];
        String timeFromNode = (n >= 5) ? (tok[3] + " " + tok[4]) : tok[3];

        if (node.length()) lastNodeId = node;

        if (id == lastClearedEventId) {
          // Node missed our CLEAR; re-send CLEAR and skip logging
          String clear = String("#") + node + "+C*"; loraSend(clear);
          Serial.println("Re-ACK CLEAR for stale GUN event");
        } else if (id != currentEventId) {
          currentEventId = id;
          gunActive = true; fireActive = false;
          gunScoreStr = score; gunTimeFromNode = timeFromNode;
          setFirebaseEventFlag(true);
          logGunToFirebase(id, score, timeFromNode);
          Serial.print("🔫 GUN event");
        } else {
          Serial.println("GUN duplicate (ignored, will re-ACK when cleared).");
        }
        lastUiRefresh = 0;
      }
      continue;
    }
  }

  // When an event is active => beep and poll Firebase flag. If it becomes false, clear NA.
  if ((fireActive || gunActive) && (now - lastPollEvent >= 2000)) {
    lastPollEvent = now;
    if (ntpReady()) {
      // Your schema: meta/Event
      String body = fbGET(String("nodes/") + lastNodeId + "/meta/Event");
      body.trim();
      bool stillTrueInFB = (body.indexOf("true") >= 0);

      if (!stillTrueInFB) {
        // Send CLEAR to NA (multiple times to be safe)
        String clear = String("#") + lastNodeId + "+C*";
        loraSend(clear); delay(50); loraSend(clear); delay(50); loraSend(clear);

        lastClearedEventId = currentEventId;
        currentEventId = -1;
        fireActive = false; gunActive = false;
        gunScoreStr = ""; fireTimeFromNode = "NT"; gunTimeFromNode = "NT";

        digitalWrite(BUZZER_PIN, LOW); buzzerOn = false;
        Serial.println("✓ Firebase meta.Event=false -> CLEAR sent to NA");
      }
    }
  }

  // Buzzer when event is TRUE (non-blocking)
  if (fireActive || gunActive) buzzerTick(now);
  else { digitalWrite(BUZZER_PIN, LOW); buzzerOn = false; }

  // UI refresh (throttled)
  if (now - lastUiRefresh >= 200) { lastUiRefresh = now; renderAll(); }
}

Schematic and Layout


CAD-Custom parts and enclosures

3D Printing

Housing (1).stl

3D Printing

Cover (1).stl

Dec 29,2025

11 views

Forest Guard – Gateway (Receiver) – Community Innovation Share

Forest Guard: A Decentralized Edge-AI LoRa Mesh Network for Forest Surveillance

Published: Dec 29,2025

PCBWay Donate 10% cost To Author

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy
