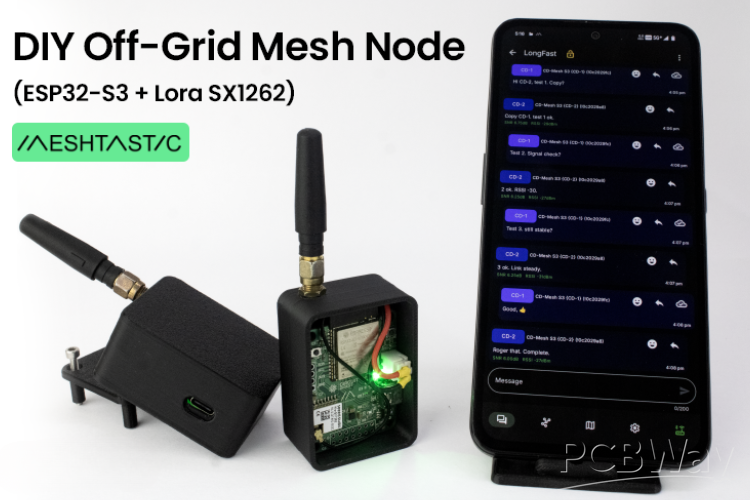

Project Overview

This project delivers a complete, custom-designed PCB solution for building Meshtastic mesh network nodes. Unlike traditional communication methods that rely on cellular towers or Wi-Fi infrastructure, this device creates decentralised, long-range networks using LoRa technology. Multiple nodes automatically relay messages between each other, extending coverage across vast areas while consuming minimal power.

The Problem It Solves

Staying connected in remote locations has always been challenging. Hikers lose contact in mountains, disaster zones lose infrastructure, and rural IoT deployments struggle with connectivity. Commercial Meshtastic devices cost $100+, and DIY breadboard solutions are fragile and unreliable. This project bridges that gap by providing an integrated, professional PCB design that anyone can build and deploy.

Key Technical Features

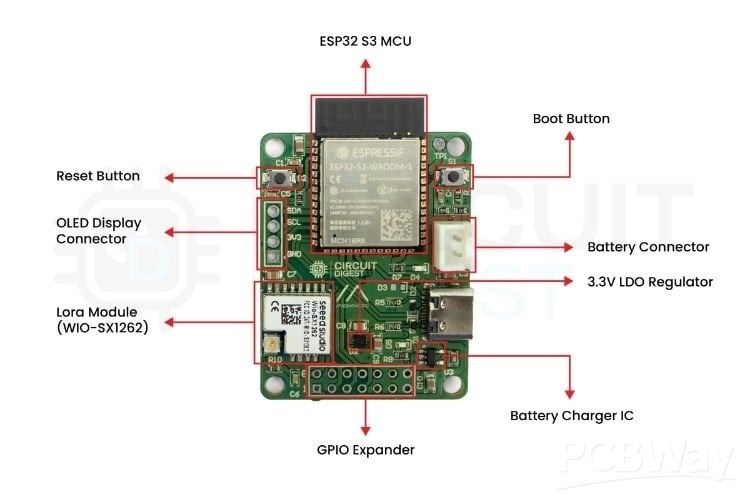

Hardware Integration:

1. ESP32-S3-WROOM-1: Dual-core microcontroller with 16MB flash and 8MB PSRAM for running Meshtastic firmware
2. Wio SX1262 LoRa Module: Pre-certified transceiver capable of multi-kilometre range
3. LTC4054 Li-Ion Charger: Seamless USB-C and battery power management
4. ADP124 LDO Regulator: Stable 3.3V power delivery for all components
5. Battery Voltage Monitoring: Built-in ADC-based system for real-time battery tracking
6. GPIO Expansion Headers: Support for OLED displays, GPS modules, and sensors

Design Highlights:

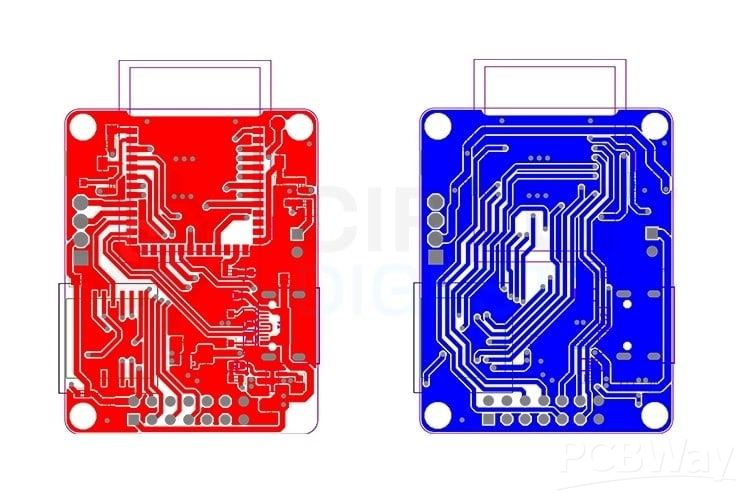

• Compact single-PCB design eliminates messy wiring

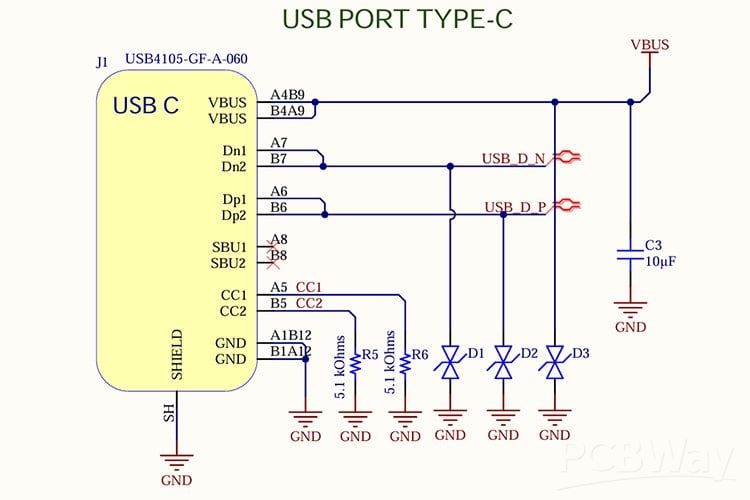

• USB-C power input with ESD protection

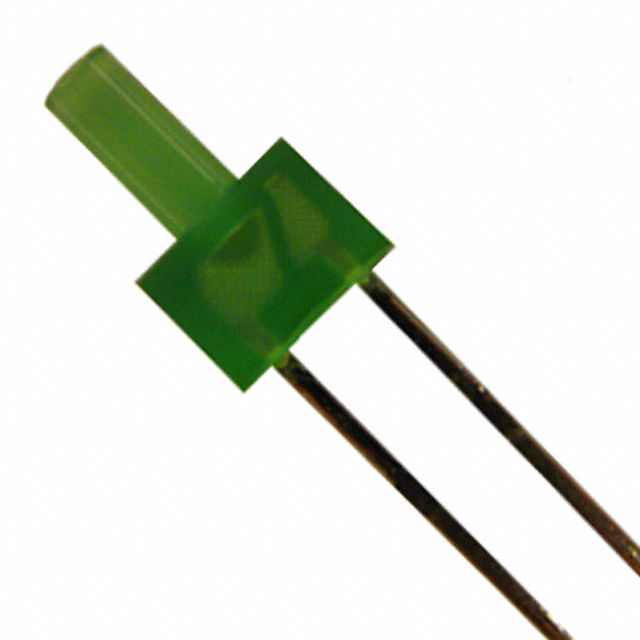

• Status LEDs for power and charging indication
• Tactile switches for reset and boot mode
• JST connector for easy battery connection

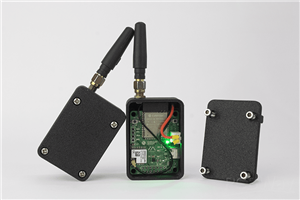

• 3D-printable enclosure for portable deployment

Real-World Applications

• Outdoor Adventures: Group communication during hiking, camping, or expeditions in areas without cellular coverage
• Emergency Networks: Rapid deployment communication when disasters disable infrastructure
• Agricultural IoT: Monitor remote sensors across large farms or ranches
• Research Expeditions: Coordinate teams in remote scientific field stations
• Event Management: Staff coordination at festivals and outdoor events
• Marine Communication: Vessel-to-vessel and vessel-to-shore messaging

How It Works

The node runs Meshtastic open-source firmware, which handles all mesh networking protocols automatically. Messages hop from node to node until reaching their destination, with each device acting as both a communicator and a repeater. Users interact via smartphone apps (Android/iOS) or web browser, sending encrypted text messages, sharing GPS locations, and monitoring network status—all without internet or cellular service.

Building Your Own

The project includes:

1. Complete schematics designed in Altium Designer
2. Gerber files ready for PCB fabrication
3. Full Bill of Materials with DigiKey part numbers
4. Custom firmware pre-configured for this hardware
5. 3D enclosure design for protection and portability
6. Step-by-step assembly guide for both SMD and manual soldering

Why This Design Stands Out

Traditional DIY Meshtastic builds require connecting multiple development boards with jumper wires—fragile and impractical for field use. This integrated PCB approach delivers:

1. Professional reliability with proper power management and ESD protection
2. Cost efficiency at $25-40 per node versus $100+ commercial alternatives
3. Customisation freedom with expansion headers for sensors and displays
4. Field-ready durability when paired with the 3D-printed enclosure
5. Easy replication with clear documentation and accessible components

Performance Specifications

• Range: Up to 20+ km line-of-sight; several kilometers in typical conditions
• Frequency Bands: Configurable for US, EU, India, and other regional LoRa frequencies
• Battery Life: Days to weeks, depending on usage and node role (client vs. router)
• Mesh Capacity: Theoretically unlimited nodes; practical networks of dozens tested
• Encryption: AES-256 channel encryption for secure communications

Getting Started

After fabricating the PCB and assembling components, users flash the custom firmware using PlatformIO in Visual Studio Code. The pre-configured firmware eliminates complex pin mapping—just upload and go. Initial setup takes minutes using the Meshtastic web client or mobile app to set region, node name, and channel key. Within moments, your node joins the mesh and begins communicating.

Project Evolution

This DIY ESP32 Meshtastic Node design represents months of iteration, refining component selection, power efficiency, and layout optimisation. The result is a robust platform that serves as both a working communication device and a learning platform for understanding mesh networks, embedded systems, and RF design principles.

Community and Expansion

Built on the open-source Meshtastic ecosystem, this node is compatible with thousands of existing devices worldwide. The design's expansion headers welcome community modifications—add GPS for position tracking, OLED displays for offline interfaces, or environmental sensors for IoT applications. The mesh grows with each node added, creating resilient networks that improve with scale.
