ESP32-Powered Smart Energy Meter for Accurate Consumption Tracking

In modern electronics and IoT applications, understanding energy usage is more important than ever. The ESP32-Powered Smart Energy Meter is a versatile project designed to measure and display key electrical parameters such as voltage, current, power, and energy consumption in real time. Leveraging the powerful ESP32 microcontroller, reliable sensors, and a clear display output, this smart meter provides actionable insights for both hobbyists and professionals alike.

Project Overview

At the heart of this project is the ESP32 System on Chip (SoC) — a Wi-Fi and Bluetooth-enabled microcontroller that efficiently processes sensor data and drives the user interface. The objective is to accurately monitor household or industrial electrical parameters and visualize them on a compact display, making the system ideal for energy tracking, anomaly detection, and efficiency optimization.

Key functions of this smart meter include:

• AC Voltage Monitoring — Measures mains voltage using a dedicated voltage sensor.
• Current Sensing — Captures real-time current flow using a reliable current sensor.
• Power Calculation — Computes instantaneous power and accumulates energy usage over time.
• Display Output — Shows measured values on a built-in OLED screen for visual feedback.

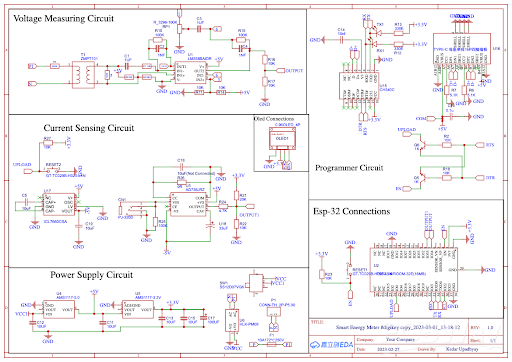

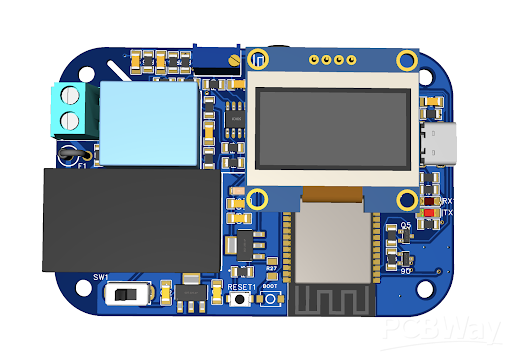

Core Components and Their Roles

This project integrates several off-the-shelf components to achieve high performance with low cost:

ESP32 Microcontroller

The ESP32 serves as the system’s brain. It reads analog signals from the sensors, processes them using its high-resolution ADC (Analog-to-Digital Converter), and calculates various electrical parameters. Its embedded Wi-Fi capability also opens the door for future IoT enhancements.

Voltage Measurement (ZMPT101B)

AC mains voltage is stepped down and isolated using the ZMPT101B voltage transformer sensor. This sensor provides a safe, linear analog output corresponding to the mains voltage, which the ESP32 can interpret after signal conditioning.

Current Sensing (SCT-013 / ACS712)

Reliable current measurement is achieved using a current transformer (SCT-013) or similar sensor module. The output is converted from AC to a DC voltage using an RMS-to-DC converter IC before being fed to the ESP32’s ADC inputs for accurate current readings.

Signal Conversion (AD736)

To read AC sensor outputs, the project uses the AD736 RMS-to-DC converter, which translates AC waveforms into corresponding DC values readable by the microcontroller.

OLED Display

A compact OLED display (typically 0.96″ SSD1306) provides a continuous visual interface showing measured voltage, current, power, and accumulated energy (in watt-hours), making the meter easy to read at a glance.

How It Works: Step-by-Step

Sensor Signal Acquisition:

The voltage and current sensors detect mains AC signals. The voltage transformer scales down the mains voltage safely, while the current sensor captures the instantaneous current flow.

Signal Conditioning:

AC signals are passed through RMS-to-DC converters (AD736 or equivalent) to produce stable DC voltages that the ESP32 can accurately sample using its ADC.

Microcontroller Processing:

The ESP32 reads the conditioned signals via analog input pins. It calculates:

AC RMS voltage

AC RMS current

Instantaneous power (V × I)

Cumulative energy usage over time (by integrating power readings).

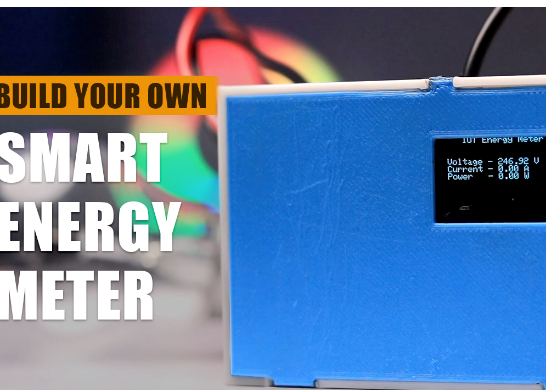

Display Output:

All metrics are formatted and shown on the OLED display. The meter can rotate through multiple screens to show different data in real time.

Applications and Benefits

This ESP32-based smart energy meter offers numerous practical uses:

• Home energy monitoring: Track appliance usage to optimise efficiency.
• Industrial measurement: Monitor machinery consumption for predictive maintenance.
• IoT Integration: With ESP32’s connectivity, the meter can later send data to cloud dashboards or home automation systems.
• Educational Tool: Ideal for learning analog measurement and microcontroller programming.
• Because it uses standard, easily sourced components and open-source code, it’s perfect for makers, students, and professional developers who want a cost-effective and expandable energy monitoring solution.

Conclusion

The ESP32 Powered Smart Energy Meter combines accurate sensors, intelligent processing, and clear visual output to deliver a reliable energy monitoring solution. Its modular design makes it approachable for beginners, yet powerful enough for advanced IoT enhancements.
