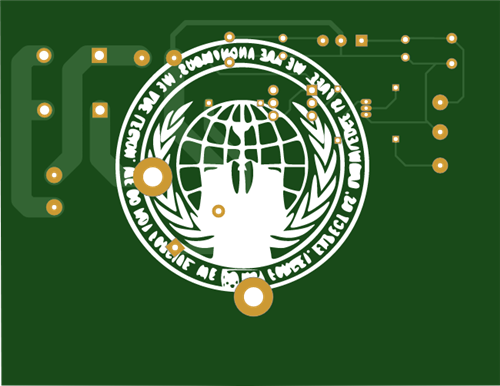

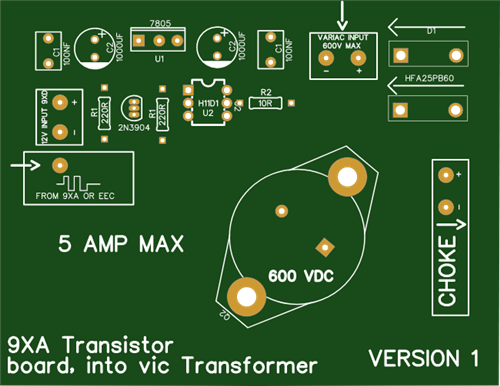

Stanley A Meyer VIC Daughter Board Driver Transistor Circuit board Version 1
The Bom list is on board but I am tying it out now
Join Support help change the World https://www.patreon.com/securesupplies?fan_landing=true
ID Name Designator Footprint Quantity Manufacturer Part
1 U1 7810 7805 1
2 C2 1000UF CAP-TH_BD8.0-P3.50-D1.0-FD 2
3 C1 100NF WIMA 0.1U/63V 2
4 Q2 2N3055 TO-3 1
5 R1 220R AXIAL-0.4 2
6 R2 10R AXIAL-0.4 1
7 U2 H11D1 PDIP-6_L8.5-W6.5-P2.54-LS7.6-BL 1
8 T2 2N3904 TO-92(TO-92-3) 1
Bill of materials used in this project
1 U1 7810 7805
1
2 C2 1000UF CAP-TH_BD8.0-P3.50-D1.0-FD
2
3 C1 100NF WIMA 0.1U/63V
2
4 Q2 2N3055 TO-3
1
5 R1 220R AXIAL-0.4
2
6 R2 10R AXIAL-0.4
1
7 U2 H11D1 PDIP-6_L8.5-W6.5-P2.54-LS7.6-BL
1
8 T2 2N3904 TO-92(TO-92-3)
1
May 06,2020
