1. Where This Board Fits in the Stanley Meyer Gas Management Unit

In Meyer’s architecture, the Gas Management Unit is not a single board. It is a control chain that sits above the high-energy hardware.

This board (PC-9XE / PC-9XC class sequential or variable gate card) is part of the logic control layer, not the power layer.

Correct Meyer-style system hierarchy

Join Us https://www.patreon.com/c/securesupplies

Sensors / Reference signals

       ↓

Frequency generation / PLL

       ↓

Gate control & sequencing  ← THIS BOARD

       ↓

Power switch drivers

       ↓

Transformer primary

       ↓

Chokes

       ↓

Water Fuel Cell (capacitive load)

This board lives inside the Gas Management Unit, but never inside the energy path.

2. What Feeds INTO This Board

The inputs are information, not power.

Typical inputs

Logic-level clock or pulse train

Frequency-controlled signal (often from a PLL or oscillator board)

Sync or enable signal

Low-voltage DC power for logic (5–12 V)

These inputs usually come from:

A PLL / frequency generator card

A timing oscillator

A control logic source

Nothing high-current enters this board.

3. What Feeds OUT of This Board

The outputs are also information, not energy.

Typical outputs

Gated pulse trains

Sequential enable signals

One-of-N logic outputs

Electrically isolated gate signals

These outputs go to:

Gate drivers

Transistor base drivers

MOSFET or GaN driver inputs

From there, another board handles current, voltage, and magnetic energy.

4. What This Board Actually Does

Functionally, this board performs three critical Gas Management roles:

1. Pulse Permission (Gating)

It decides when pulses are allowed to pass and when they are blocked.

This enforces:

Burst operation

Rest periods

Dielectric recovery time

Non-continuous excitation

2. Sequencing

It ensures:

Only one channel is active at a time

Pulses occur in a defined order

No overlap between channels

This is essential when driving:

Multi-coil systems

Multi-phase transformer primaries

Sequential magnetic excitation

3. Isolation

Using opto-isolators, it:

Protects sensitive logic

Prevents switching noise from feeding backward

Breaks ground-loop paths

5. Where It Does NOT Sit (Your Key Question)

❌ NOT between:

Cell capacitor and chokes

Transformer and chokes

Any high-voltage or high-current path

✅ YES — it sits between:

PWM / frequency generation

Power switching hardware

In plain language:

This board controls timing, not energy.

6. Why Meyer Needed This Board Historically

At the time Meyer was working:

Microcontrollers were slow

No fast digital PLLs

No software-based gating

Limited isolation options

So he implemented Gas Management in hardware logic:

Counters

Decoders

Inverters

Opto-isolators

This board was a hardware scheduler and gatekeeper.

7. What Replaces This Board When a Teensy Becomes the GMS

When a Teensy (or similar MCU) becomes the Gas Management System, this entire board is replaced functionally, not electrically.

What the Teensy takes over

Original board function

Teensy replacement

Pulse gating

Timer interrupts

Sequencing

Software state machine

Duty control

Hardware PWM

Timing windows

Firmware logic

Channel selection

GPIO multiplexing

Adaptive control

Closed-loop code

The Teensy becomes the central nervous system of the GMS.

8. Modern GMS Architecture with a Teensy

Modern signal flow

Sensors (voltage, current, phase)

       ↓

Teensy (GMS logic, timing, sequencing)

       ↓

Isolated gate drivers

       ↓

MOSFET / GaN power stage

       ↓

Transformer

       ↓

Chokes

       ↓

Cell

What changes fundamentally

Control becomes adaptive, not fixed

Timing becomes software-defined

Gating becomes conditional, not static

Safety and limits become enforceable

9. One-Paragraph Plain-Language Summary

This board sits inside the Stanley Meyer Gas Management Unit as a logic-level pulse gate and sequencer. It receives low-power timing signals, selectively allows or blocks those pulses, sequences them in a controlled order, and electrically isolates the outputs before sending them to the power switching stage. It never carries energy and never sits between the cell, chokes, or transformer windings. In a modern system, all of its functions are absorbed into a Teensy microcontroller, which becomes the Gas Management System by generating gated, sequenced timing signals in software and feeding modern isolated gate drivers that control MOSFET or GaN power stages.

10. One-Sentence Takeaway

In Meyer’s system this board was the hardware gatekeeper of timing, and in a modern design a Teensy replaces it entirely, turning the Gas Management Unit from fixed logic into a programmable, feedback-driven control system.

If you want next, I can:

Write a Teensy-based GMS functional spec

Map original board I/O → Teensy pins

Describe how feedback closes the loop

Build a complete modern GMS block diagram

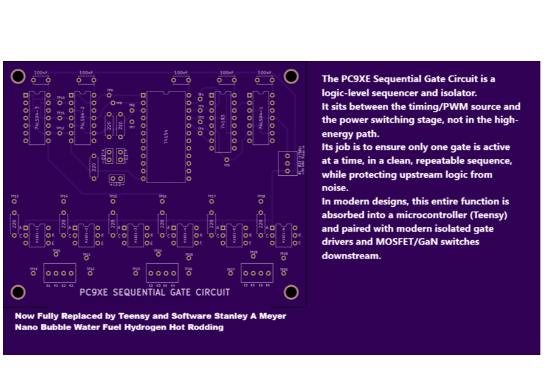

1. Bill of Materials (BOM) — PC9XE Sequential Gate Circuit

Core Logic ICs

Qty

Ref

Part

Function

1

U1

74LS154

4-to-16 line decoder (core sequencer)

2

U2–U3

74LS90

Decade counters (step generation)

4

U4–U7

74LS04

Hex inverters (edge shaping / inversion)

8

U8–U15

H11D1

Opto-isolators (logic isolation)

Passive Components (as labeled)

Resistors

~10× 220 Ω — opto LED current limiting

Several logic pull / series resistors (all low-power, ¼ W)

Capacitors

5× 100 nF (0.1 µF) — decoupling (top edge, clearly marked)

Strongly recommended: one 100 nF per IC (even if not fully populated)

Connectors & Misc

Multiple pin headers (E1–E8, K1–K8) — logic I/O

Test points TP1–TP30 — timing/debug

LED + resistor — activity indication

❗ No power transistors, no MOSFETs, no BJTs

This is a logic-only control board.

2. What This Board Actually Does (Plain Language)

The PC9XE is a sequential gate distributor.

It:

Takes a clocked logic signal

Steps it through a defined sequence

Outputs one active gate at a time

Electrically isolates each output

Think of it as a rotating digital selector switch for pulses.

It does NOT:

Drive current

Switch power

Touch high voltage

Sit in the energy path

3. How It Works (Block-by-Block)

A. 74LS90 Counters — Step Engine

Count incoming clock pulses

Advance the active state

Provide binary stepping to the decoder

B. 74LS154 Decoder — One-of-Sixteen Selection

Converts counter outputs into one active line

Guarantees only one channel is enabled at a time

Prevents overlap (critical for magnetic or inductive systems)

This is the heart of the board.

C. 74LS04 Inverters — Timing Cleanup

Sharpen rising/falling edges

Provide inverted phases where required

Improve noise immunity

D. H11D1 Opto-Isolators — Isolation Layer

Each gate output is optically isolated

Protects logic from switching noise

Allows downstream stages to float electrically

The 220 Ω resistors set LED current for each opto.

E. Outputs (E1–E8, K1–K8)

Logic-level, isolated gate signals

Intended to feed:

gate drivers

transistor bases

MOSFET control stages

4. Where This Board Fits (Direct Answer)

❌ NOT between cell capacitor and chokes

❌ NOT between transformer and chokes

✅ YES — between timing/PWM logic and the power switching stage

Correct system placement:

PLL / Oscillator / Timing source

       ↓

PC9XE Sequential Gate Circuit  ← (THIS BOARD)

       ↓

Gate driver / transistor stage

       ↓

Transformer primary

       ↓

Chokes

       ↓

Cell (capacitive load)

👉 It routes control pulses, not energy.

5. What Problem This Board Solved (Historically)

In the 1980s–90s:

Microcontrollers were slow

No cheap digital sequencers

No fast isolated drivers

So this board provided:

Deterministic sequencing

Hardware-enforced non-overlap

Electrical isolation

Repeatable timing

It was a hardware scheduler.

6. Modern Improvements (2026-Tier)

Important distinction:

MOSFETs do not replace parts on this board

They replace the downstream power stage this board feeds

A. Replace H11D1 Optos (Major Upgrade)

H11D1s are slow and soft-edged.

Modern options:

Digital isolators (Si86xx, ADuM series)

Isolated gate drivers (preferred if driving FETs)

Benefits:

Nanosecond-class edges

Much lower timing skew

Better dv/dt immunity

B. Replace 74LS Logic

Swap to:

74HC (CMOS)

74LVC (faster, lower power)

Immediate gains:

Cleaner transitions

Less heat

Higher noise margin

C. Replace Entire Board with a Teensy (Modern GMS)

A Teensy 4.x can replace:

74LS90 counters

74LS154 decoder

Gating logic

Sequencing logic

Then add:

Software-defined sequencing

Adaptive timing

Safety limits

Real-time feedback

D. Best 2026 Power Switching (Downstream)

These go after this logic stage:

MOSFET (efficient & robust)

Infineon OptiMOS

TI NexFET

Nexperia automotive MOSFETs

GaN (fastest possible)

EPC GaN FETs

Infineon GaN families

Paired with:

High-current gate drivers

Controlled gate resistors

Proper snubbing and TVS protection

7. Practical One-Paragraph Summary

The PC9XE Sequential Gate Circuit is a logic-level sequencer and isolator.

It sits between the timing/PWM source and the power switching stage, not in the high-energy path.

Its job is to ensure only one gate is active at a time, in a clean, repeatable sequence, while protecting upstream logic from noise.

In modern designs, this entire function is absorbed into a microcontroller (Teensy) and paired with modern isolated gate drivers and MOSFET/GaN switches downstream.

One-Sentence Final Answer to Your Question

The PC9XE board sat between the PWM/timing logic and the transformer drive stage, sequencing and isolating control pulses — not between the cell capacitor and chokes — and today its function is fully replaced by a Teensy-based digital controller feeding modern MOSFET or GaN drivers.

If you want next, I can:

Map PC9XE outputs → modern gate driver inputs

Design a Teensy-based replacement

Specify exact MOSFET/GaN parts for your voltage/current

Draw a full Meyer-style system block diagram
