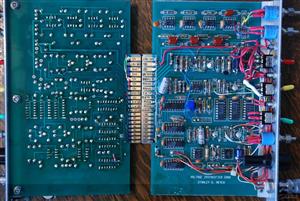

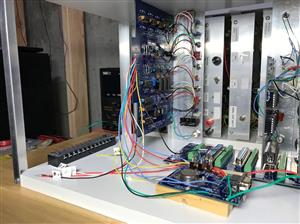

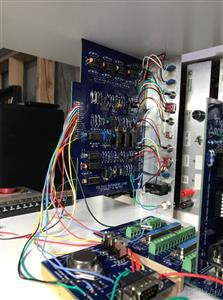

Stanley A Meyer VIC Voltage intensifier transformer board

Join Support help change the World https://www.patreon.com/securesupplies?fan_landing=true

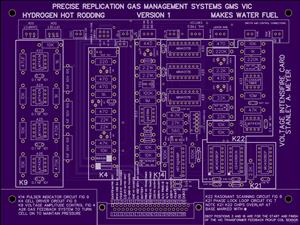

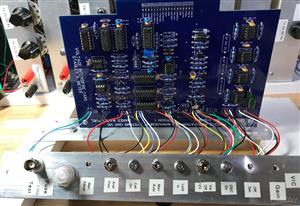

updated 2021 added some extra silk words part labels

major labeling in outs improvements and corrections done enjoy

Daniel's kind-hearted approach and dedication to a cleaner energy future deserve recognition and support.

You can contribute to his ongoing efforts by donating through PayPal at https://www.paypal.com/donate/?hosted_button_id=29MNNNGUSBQXW.

Additionally, joining his Builder Level on Patreon at https://www.patreon.com/c/securesupplies grants you access to exclusive updates, resources, and a community of like-minded supporters dedicated to advancing hydrogen technology.

By supporting his work, you join in the journey toward a sustainable future. Godspeed, Daniel Donatelli!

www.hot-rod-usa.com

QTY Full Board Reference Full General Description Value

IC CIRCUITS

5 A23 LM731P OP AMP

A24 LM731P OP AMP

A25 LM731P OP AMP

A26 LM731P OP AMP

1 A27 4046-PWR  4046 - PHASE LOCK CHIP

4 A28 4017 DECADE COUNTER

A29 4017 DECADE COUNTER

A30 4017 DECADE COUNTER

A31 555 CHIP TIMER

A32 LM731P OP AMP

A33 LM318 OP AMP

1 IC1 4001N  QUAD 2 -INPUT NOR

1 IC2 4066N  QUAD BILATERAL ANALOG SWITCH

2 IC2 4001N  QUAD 2 -INPUT NOR

CAPACITORS

1 C1 470nF

C2 100nF

C3 100nF

C4 100nF

C5 100nF

1 C6 10uF 35 volt polarized capacitor

1 C7 47pF

1 C8 300nF

3 C9 1uF

C10 1uF

C11 1uF

C14 .1uF

C15 100nF

1 C16 35nF

C17 10uF 16 volt non polarized capcitor

C18 100nF

C19 100nF

C20 100nF

C21 100nF

C22 100nF

2 C23 .1uF

13 C24 100nF

C25 100nF

C26 100nF

C27 100nF

2 C28 10uF 16 volt non polarized capcitor

Diodes

1 D1 1 KV 5 AMP SPEC

1 D2 1N405

3 D3,D4,D5 1M4001

2 D6,D7 1N4148

Transisitor

3 Q1,Q12,Q16 2N2222

2 Q6,Q8 2N3906

1 Q7 2N3904

Resistors

R1 10K

R2 10K

R3 10K

R4 10K

R5 1K

R6 1K

R7 470K

R8 470K

R9 10K

R10 47K

R11 22K

R12 1K

R13 470K

R14 1K

R15 470K

R16 470K

R17 ??

1 R18 440K

1 R19 2.21K

1 R20 2.21K

R21 100K

1 R22 1M

R23 10K

R24 10K

R25 100K

R26 100K

R27 560K

R28 27K

R29 4.7K

R30 10K

R31 10K

2 R32 22K

R33 2K2

R34 470K

R35 2K2

7 R36 470K

3 R37 2K2

5 R38 1K

2 R39 47K

1 R40 10M

10 R41 10K

R42 220K

2 R43 220K

Potentiometers

1 Potentiometer Panel Mount Through Hole 50 kOhms 500 mW (1/2 W) https://th.mouser.com/ProductDetail/Honeywell/392JA50K/?qs=%2Fha2pyFaduhDOCKt20U9cFcOvaq0S9kP20pqEwlrYeHG1yY04GUTjA==

1 FREQ - ADJUST 100 K 3296 TRIMM RESISTOR FOR 4046

1 POT 1 50 K CONDUCTIVE PLASTIC RESISITOR

1 POT 2  50 K CONDUCTIVE PLASTIC RESISITOR

3 MANUAL  50 K CONDUCTIVE PLASTIC RESISITOR

LED'S

1 OSC LED    GREEN  5 mm DIFFUSED

2 LOCK ON   RED   5 mm DIFFUSED

IC SOCKETS

6 8 pin  ic socket 8 pin  ic socket

4 16 pin  ic socket 16 pin  ic socket

3 14 pin  ic socket 14 pin  ic socket

TOGGLE SWITCH

on on 2 position 10A 125 VAC

on on 2 position 10A 125 VAC

on off on 3 position 10A 125 VAC

test connector

1 bnc test connector pcb through mount bayoneted fitting

Fuse Socket

1 fuse mount fuse holder through hole black
