Memotech MTX Power power supply
Sheared for greater visibility, original project can be found:
https://oshwlab.com/sundbyk/memotech-power
Please consider supporting the author.

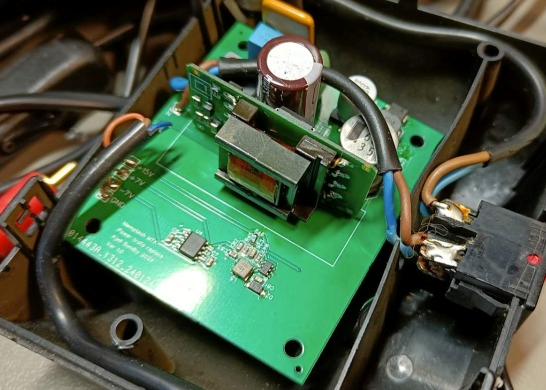

15W power for replacement of the transformator in the Memotech MTX power supply.
Made according to regulations in EU.
85-203 VAC
Memotech MTX Power power supply
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
