AMSGateArray – CPLD Replacement for the Amstrad CPC 40007 Gate Array

This is just sharing the project from https://github.com/codedchip/AMSGateArray, created by Darren Johnstone (codedchip). AMSGateArray recreates the Amstrad CPC's hard-to-find gate array chip on a Xilinx XC95288XL CPLD, whose 5 V-tolerant I/O lets it plug straight into the original DIP-40 socket.

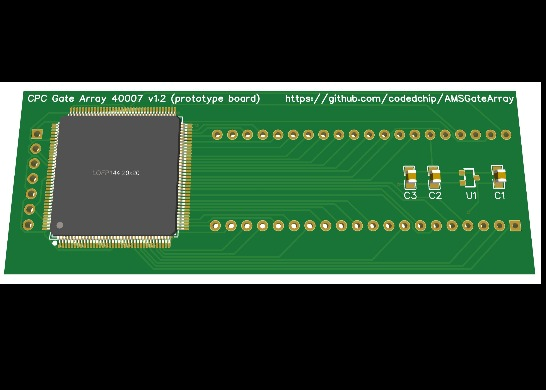

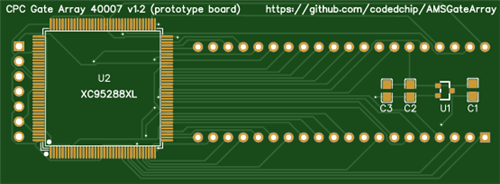

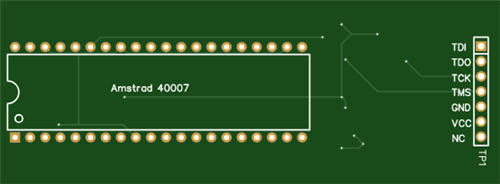

Two prototype boards are included: one for the 40010 pinout used in the CPC 6128 and one for the 40007 pinout used in the CPC 464. Each is a simple two-layer board with a 3.6 V regulator, a JTAG programming header and the CPLD. The Verilog is built on Gerald's decapped-die schematics and partly on Gyorgy Szombathelyi's MiSTer core.

The 40010 version has been tested in a real CPC 6128, running games and demanding demos such as Batman Forever and Phortem, while the 40007 version is still untested. The design and Verilog are released under the GPL.

Code

Software

AMSGateArray_software_Verilog.zip

Schematic and Layout

40007_Schematic.pdf

40007_assembly_drawing.pdf

Download Gerbers Download BOM(Bill of materials)

Sep 25,2026

31 views

AMSGateArray – CPLD Replacement for the Amstrad CPC 40007 Gate Array

XC95288XL CPLD replacement for the Amstrad CPC 40007 (464) gate arrays, with open Verilog.
