Amiga CD32 Rev 4.1 Motherboard Recreation

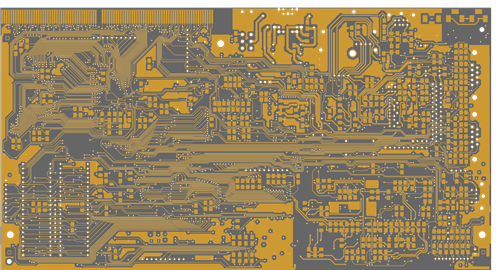

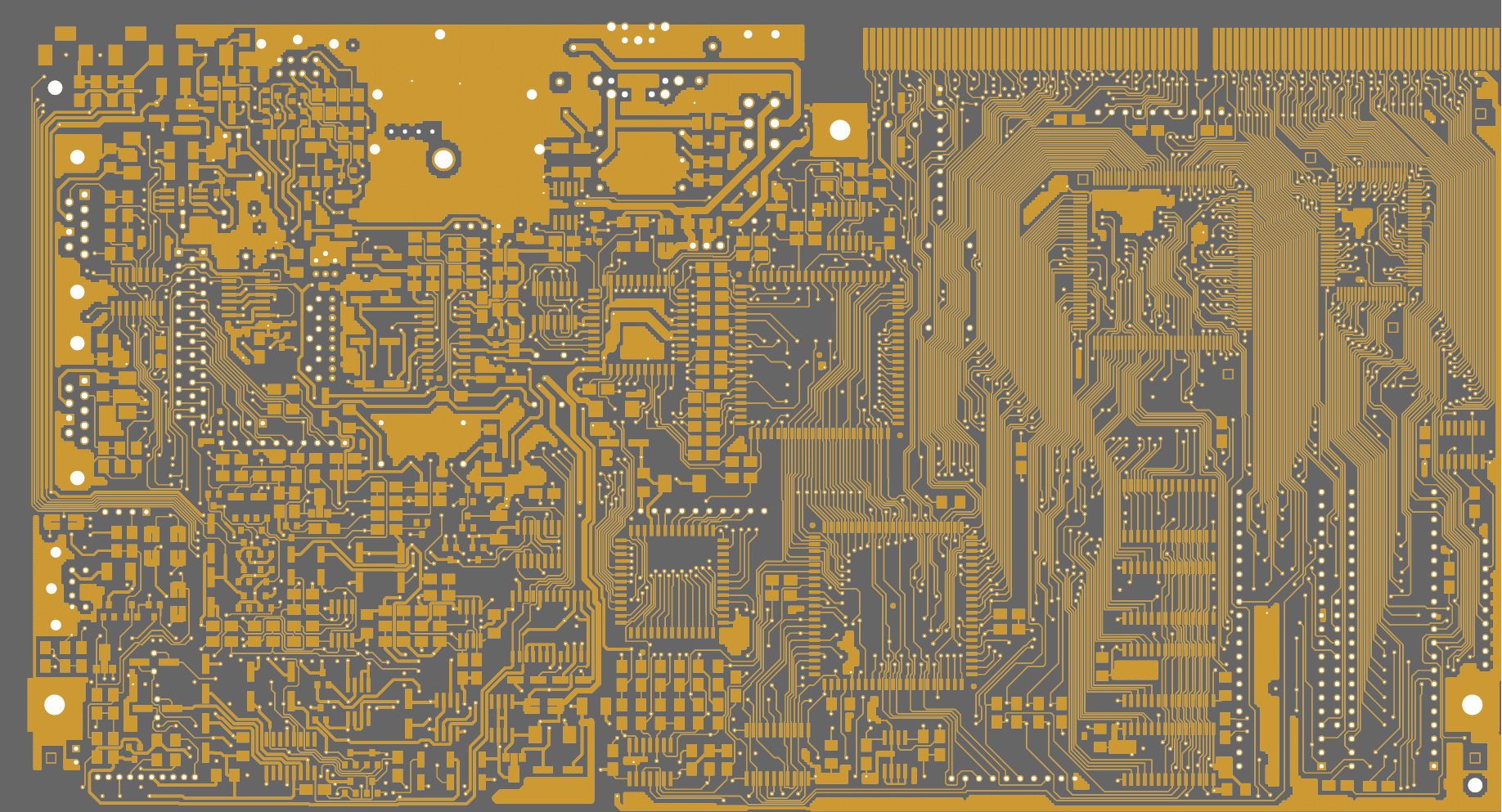

4-layer recreation of the Commodore Amiga CD32 Rev 4.1 motherboard, with Gerbers converted from amigapcb.org SVG data.
This is just sharing the project from https://github.com/obraxis/Amiga-CD32-Rev4.1, and all credit goes to the original author. It recreates the Commodore Amiga CD32 “Spellbound” Rev 4.1 motherboard, with Gerber files converted from the SVG board data published at amigapcb.org.
The design is a 4-layer board with a 182-contact expansion edge connector, laid out in Sprint-Layout 6. The source file is included alongside the Gerbers and drill file. It is aimed at repairing or rebuilding CD32 consoles.
Akiko, the AGA and Paula custom chips, the 68EC020 CPU and the Kickstart ROM must be transplanted from a donor console. The repository has no BOM or component values, so a donor board or the Commodore schematics are needed for assembly. Project discussion is on the English Amiga Board thread linked in the original repository.
BOM and centroids are made with AI use with caution!
