Description

The Ultimate MIDI Sound & Interface Card for the Amstrad CPC

This is just sharing the project from https://github.com/lambdamikel/BluePillCPC – all credit goes to the original designer, Michael Wessel (LambdaMikel).

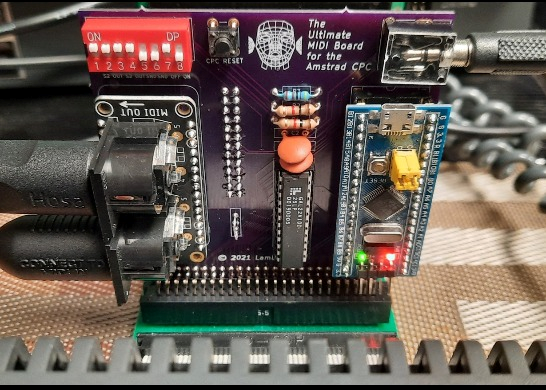

The card plugs into the Amstrad CPC 464/6128 expansion port (MX4 compatible). An STM32 Blue Pill handles the Z80 I/O requests entirely in firmware, with a single GAL22V10 as address decoder. It hosts a Serdashop S2, X2GS, EWave or QWave Waveblaster-style General MIDI module, plus an Adafruit MIDI FeatherWing for standard DIN MIDI IN and OUT.

An 8-way DIP switch routes MIDI between the CPC, the synth module and the DIN ports, and can mix the synth audio into the CPC speaker. The card also works as a standalone GM sound module or MIDI thru box. It is fully through-hole and DIY friendly; use the component values from the README BOM, not the schematic.

Code

software.zip

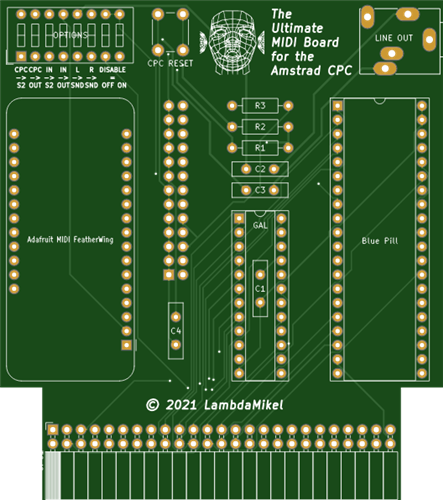

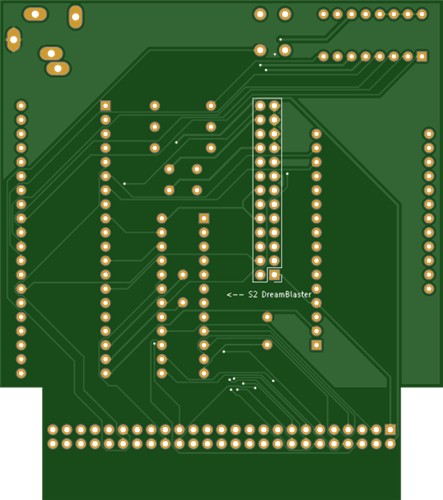

Schematic and Layout

schematics.pdf

Download Gerbers Download BOM(Bill of materials)

Oct 21,2026

10 views

The Ultimate MIDI Sound & Interface Card for the Amstrad CPC

Amstrad CPC expansion card using a Blue Pill MCU: General MIDI sound via S2/X2GS Waveblaster module plus MIDI IN/OUT DIN ports.

Published: Oct 21,2026
