Atari 2600 breakout
Sharing project for greater visibility:
https://github.com/lodefmode/a2600_breakout

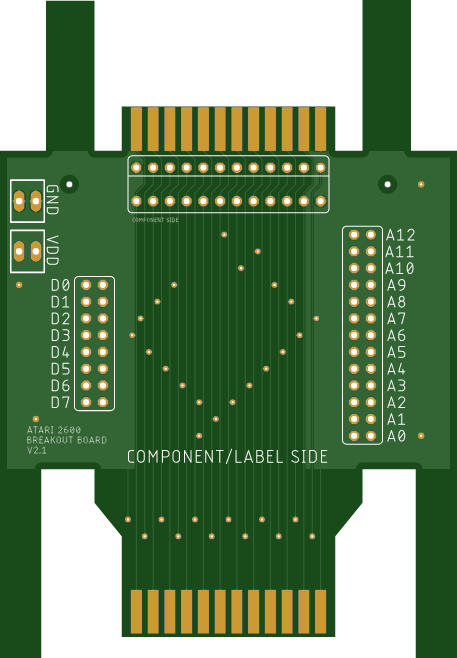

Simple PCB to expose all cartridge lines on an Atari 2600.
Features:
Multiple access points for all data and address lines
(Example: connect duplicate headers for both logic analyzer + breadboarding)

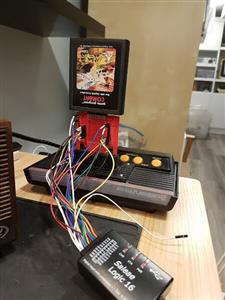

Optional cartridge connector for live monitoring
(Connect either a right angle socket connector or solder directly to top edges)
Standard 0.1" spacing throughout
GND and VDD points

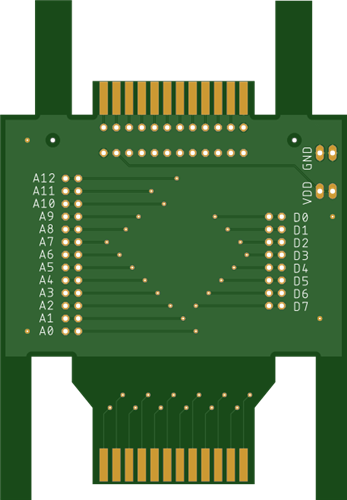

Fully labelled on both sides
Ground plane
Unlicenced / Public Domain
Atari 2600 breakout
