Description
Plexi Drive pre-boost module for embedding into a combo Guitar pedal.
A Marshall Plexi Drive module for embedding in a combo guitar pedal as a pre-boost. This can use either J201 (through hole) or 2SK208R (SMD) JFETs.
Link to interactive BOM.
https://paulamps.com/boms/Plexi%20Drive.html
Link to discussion about the combo pedal project.

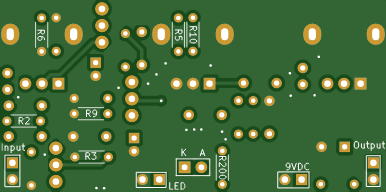

Schematic and Layout

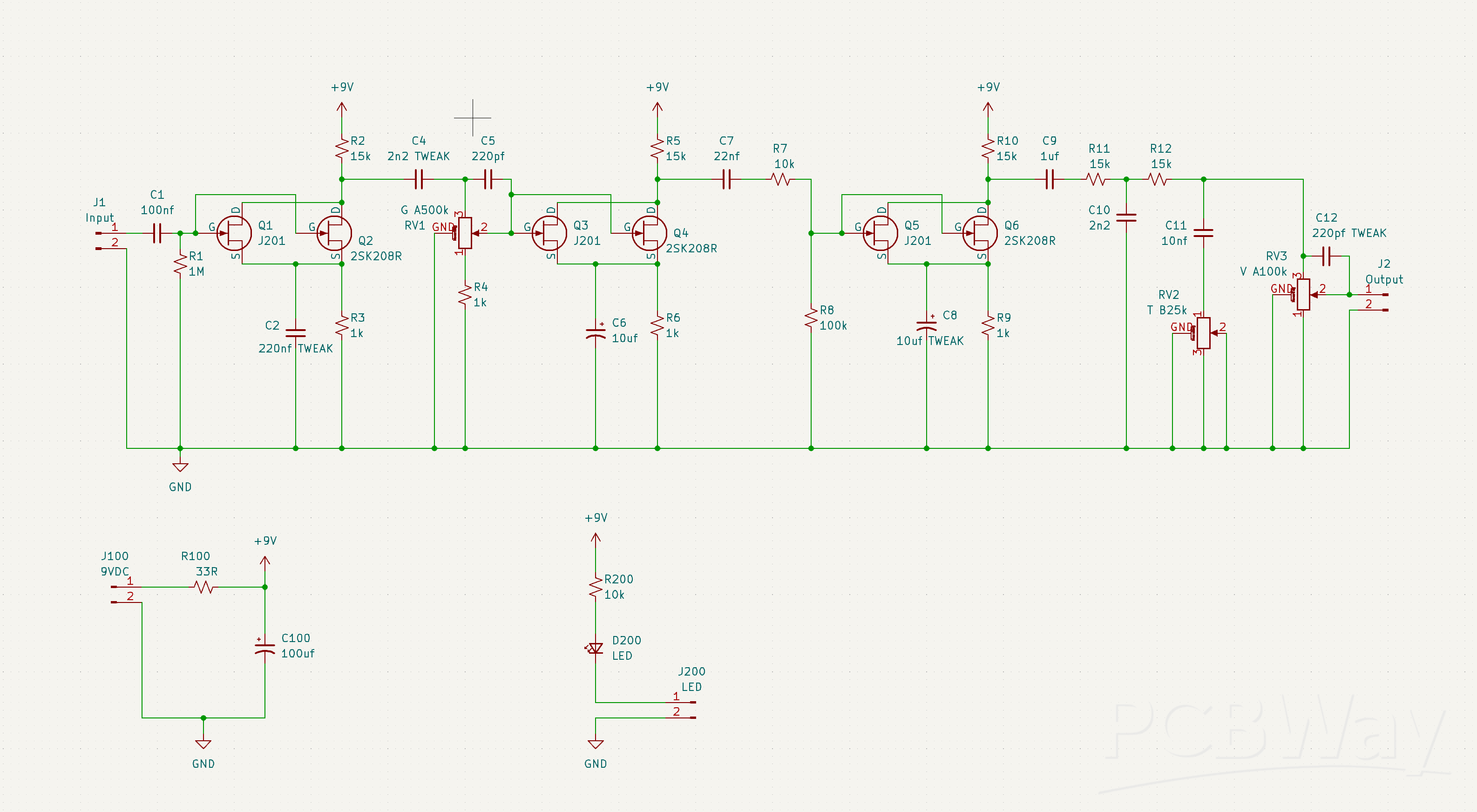

Schematic
Jul 04,2024
684 views
Plexi Drive pre-boost module for embedding into a combo Guitar pedal.
Pre-boost module for a combo guitar pedal project using a JFET boost emulating a Marshall Plexi.
684
2
0
Published: Jul 04,2024
