Pititico CW Transceiver

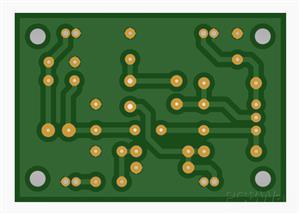

Schematic and Layout

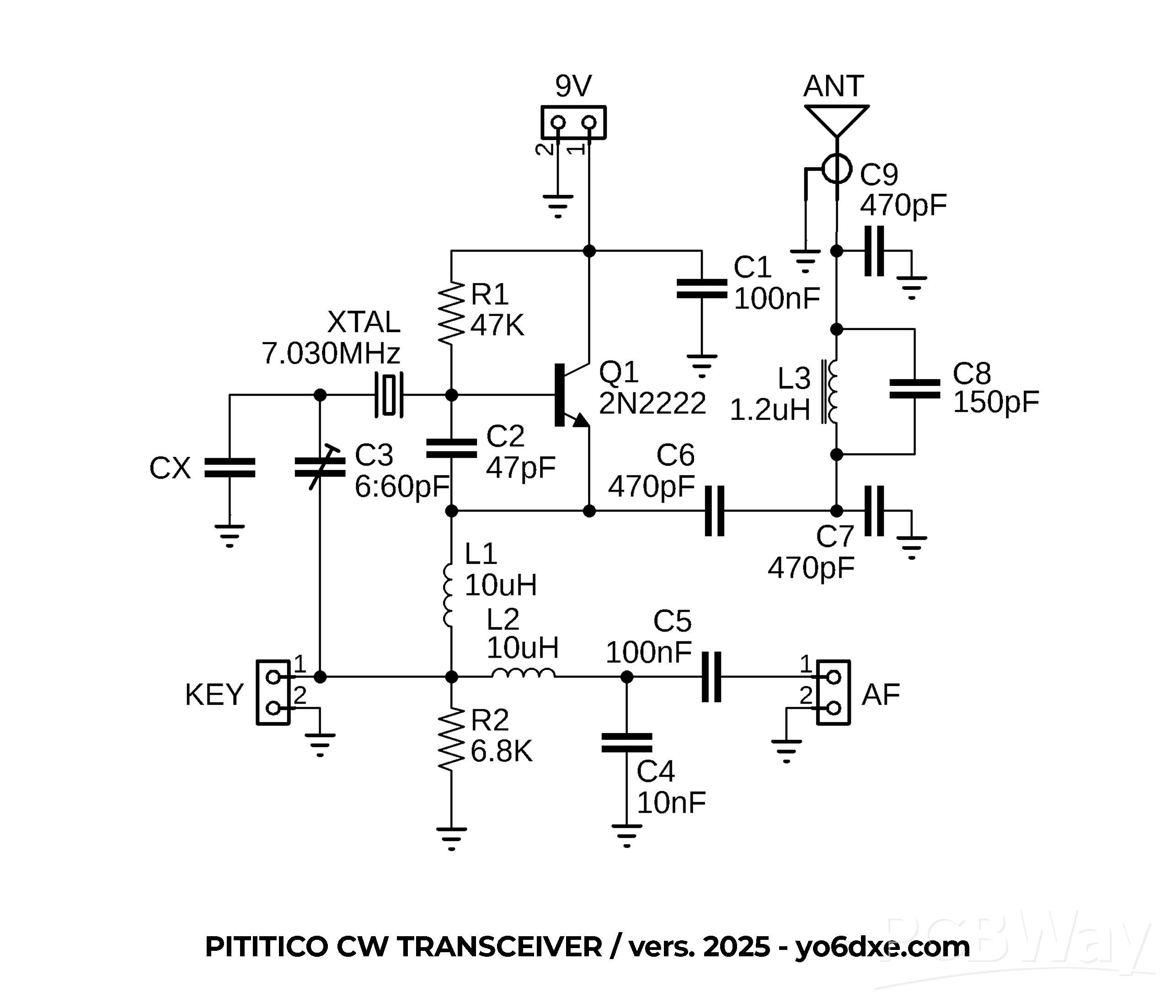

Pititico CW Transceiver Schematic
Pititico CW Transceiver Schematic.jpg
Nov 11,2023
4,499 views
Pititico CW Transceiver
One of the smallest and simplest transceivers using a single 2N2222 transistor, based on an original design by PY2OHH.
4499
4
0
10.00 (1)
Published: Nov 11,2023
Standard PCB
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/11/19 (GMT+8)
File update record
2025-11-1906:49:48
Parts List (BOM) is updated.
