K8TND VLF Sferics Receiver
Get the Gerber Files ( coming soon ) | Read the Blog Article ( coming soon ).
Do you enjoy the content ? DONATE with PayPal to help me create more !

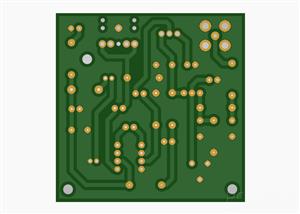

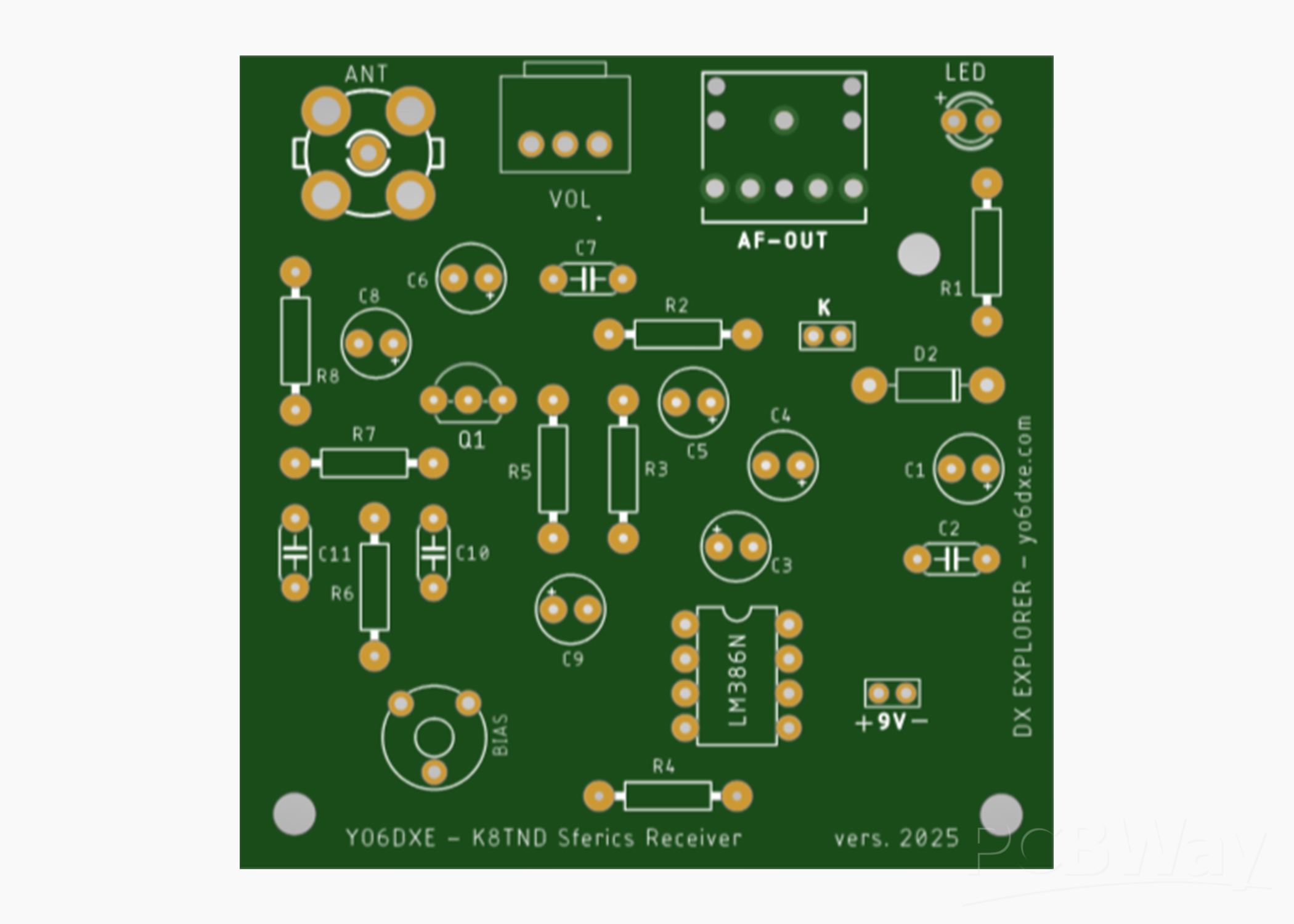

Schematic and Layout

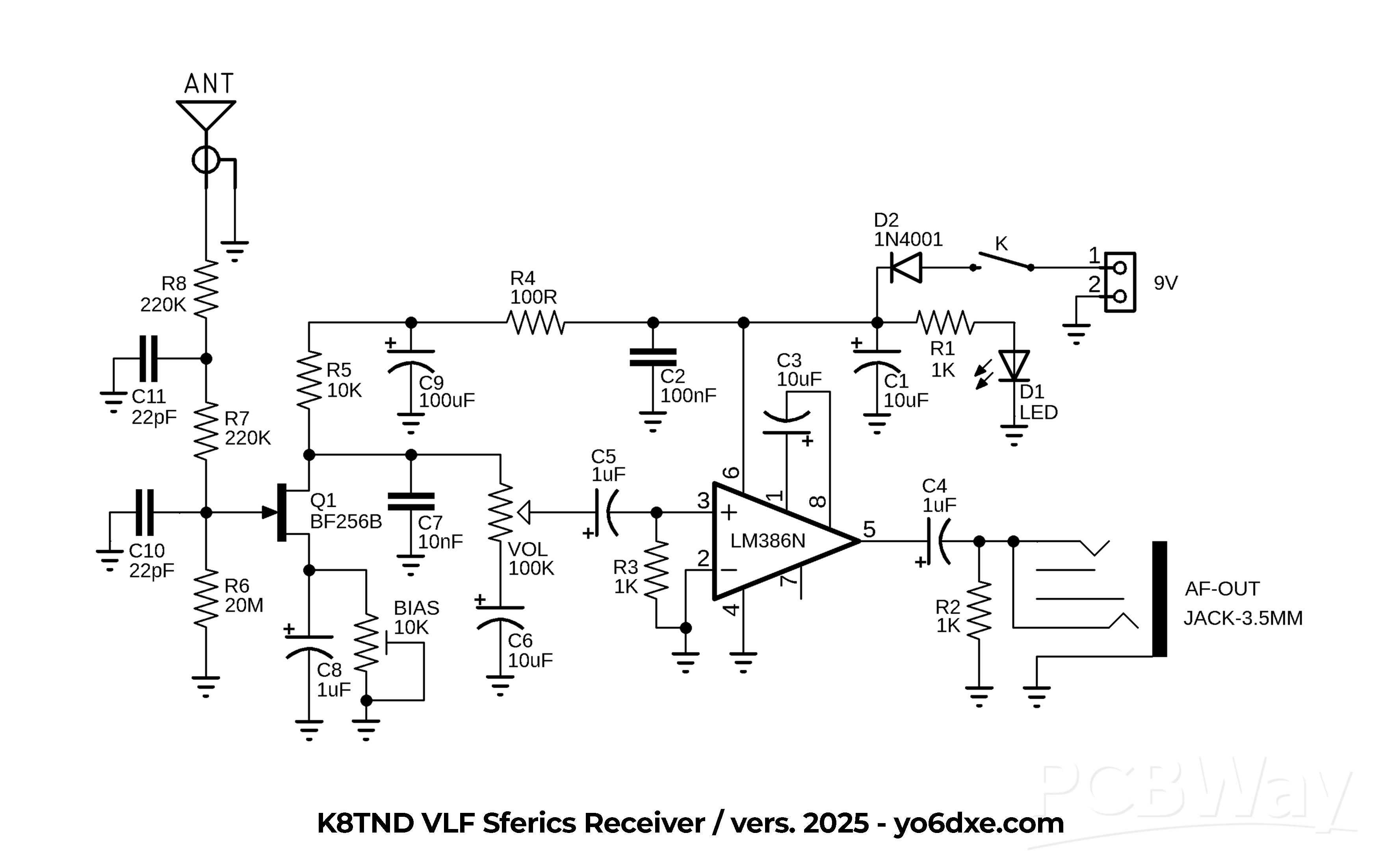

K8TND VLF Sferics Receiver Schematic
K8TND VLF Sferics Receiver Schematic.jpg
Oct 30,2024
3,120 views
K8TND VLF Sferics Receiver
Receiving radio noise with natural origins, mainly lightning, but also clouds of ions interacting with the earth's magnetic field.
3120
3
4
Published: Oct 30,2024
Standard PCB
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/11/02 (GMT+8)
File update record
2025-11-0220:42:10
Parts List (BOM) is updated.
