FM Bug ( SPY Bug )

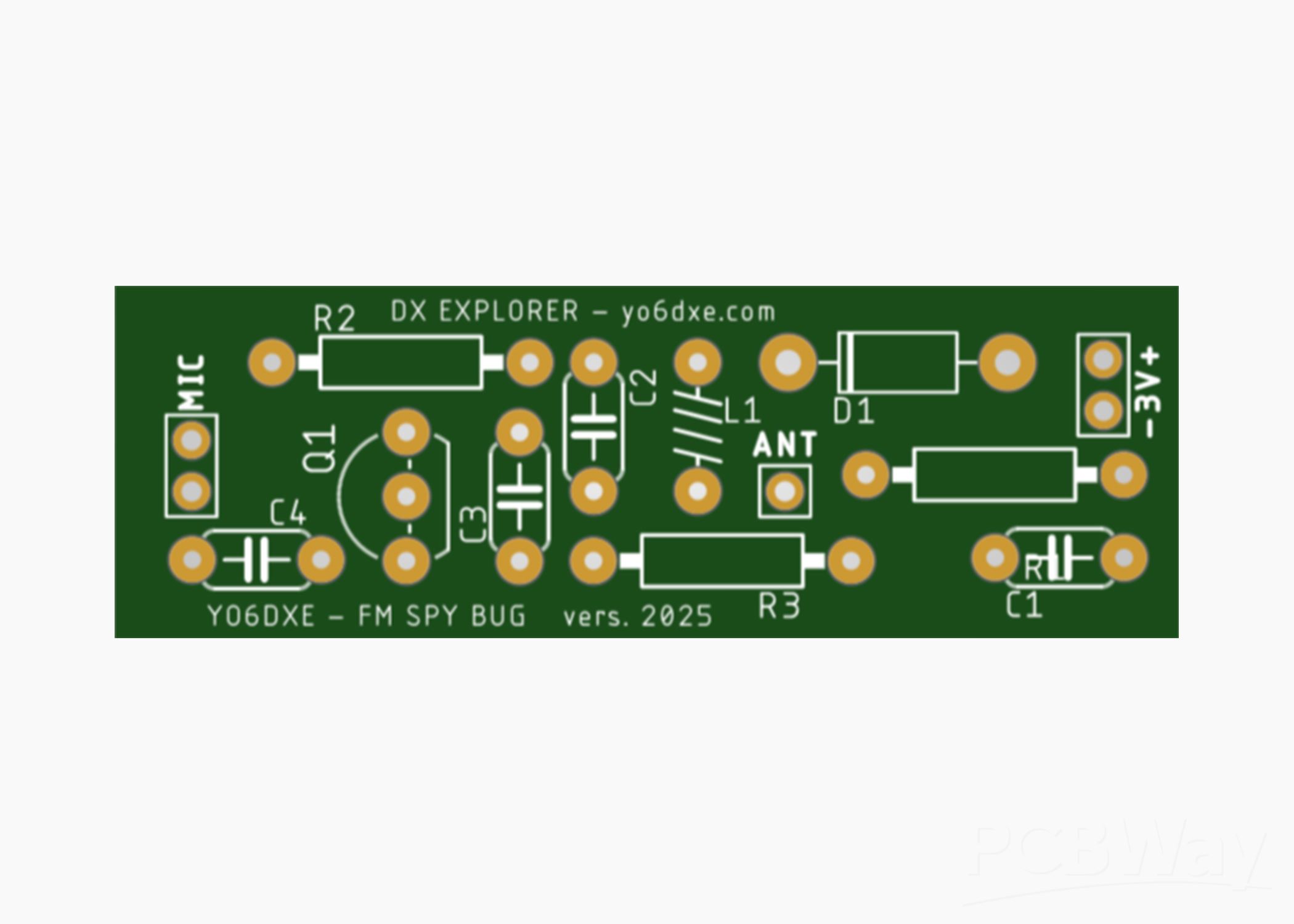

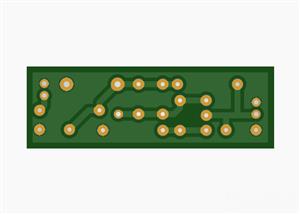

Schematic and Layout

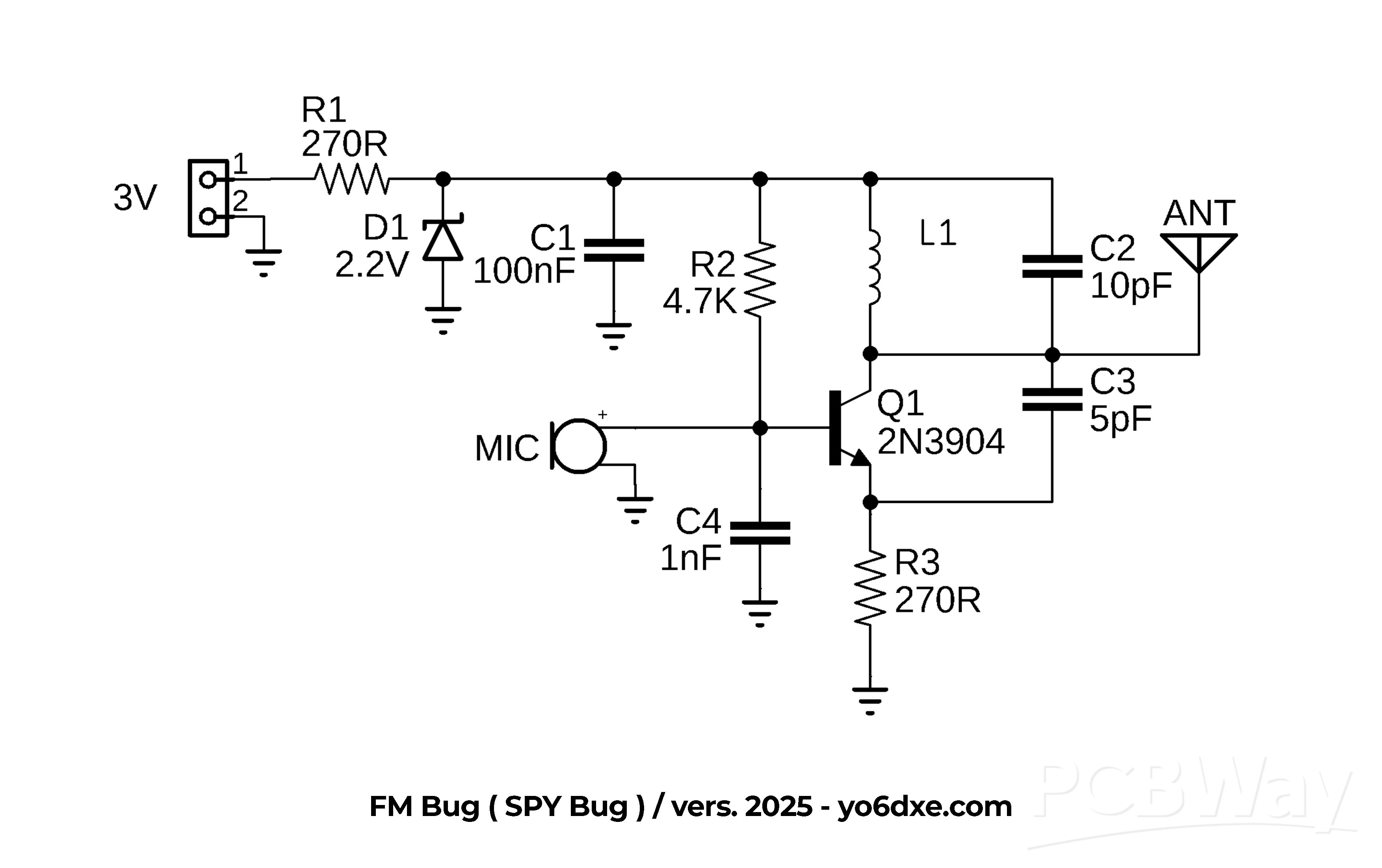

FM Spy BUG Schematic
FM Spy BUG Schematic.jpg
Apr 10,2025
1,458 views
FM Bug ( SPY Bug )
One 2N3904 transistor FM SPY BUG built for fun and educational purposes. It can double as a baby monitor.
1458
4
1
10.00 (1)
Published: Apr 10,2025
Standard PCB
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/12/30 (GMT+8)
File update record
2025-12-3023:19:20
Parts List (BOM) is updated.
