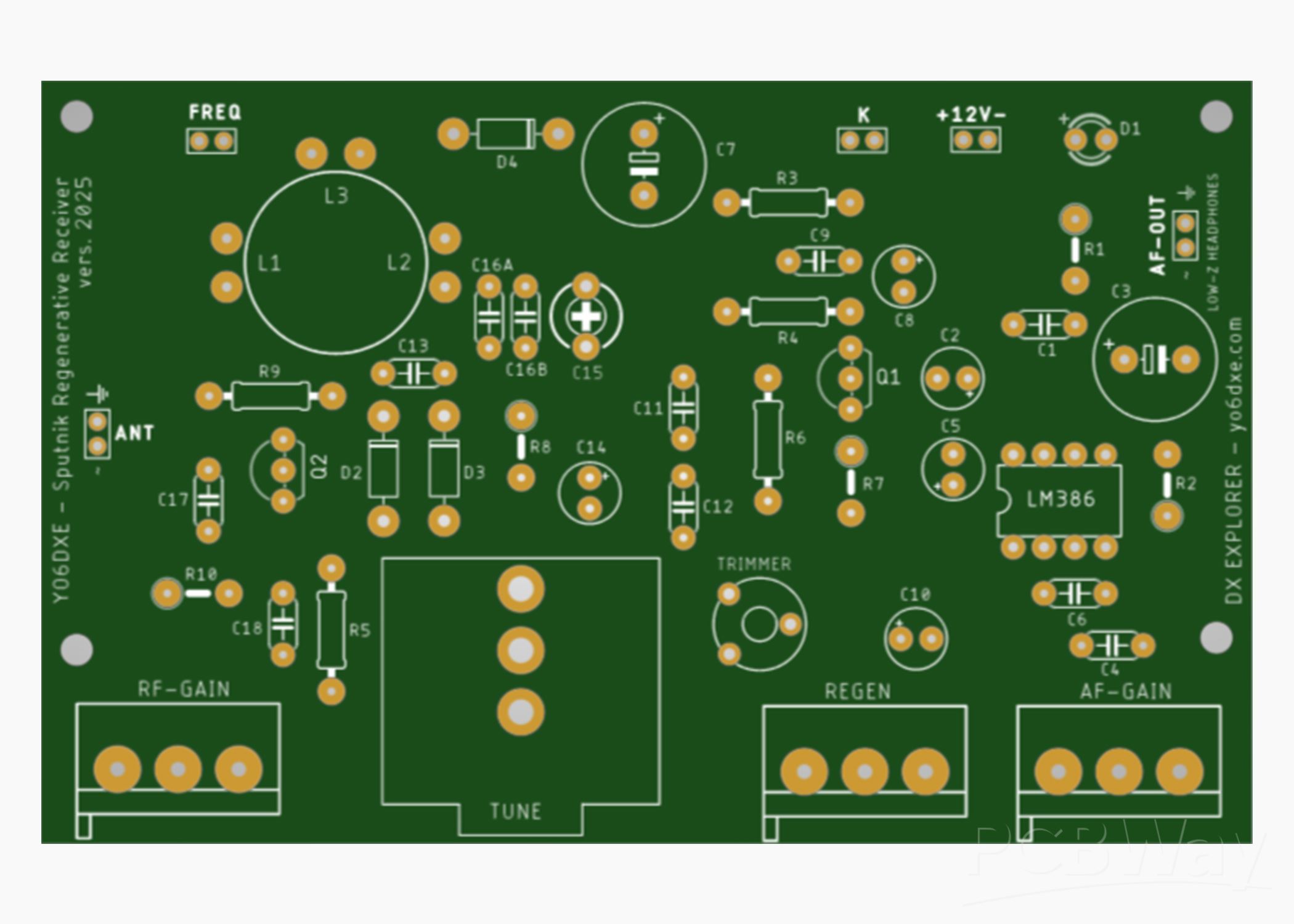

Sputnik Regenerative Receiver - SSB, CW, AM, FM

Read the Blog Article

Do you enjoy the content ? DONATE with PayPal to support me !

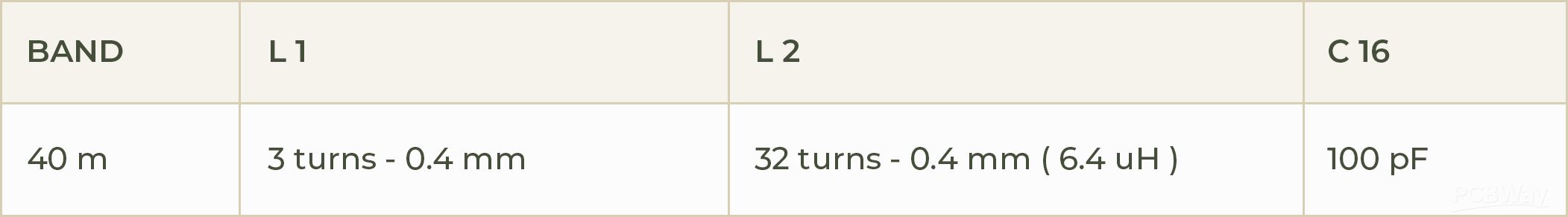

RF COIL DETAILS

PVC RF COIL VERSION

TOROID RF COIL VERSION ( T50-2 )

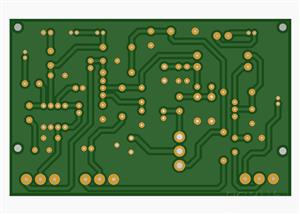

Schematic and Layout

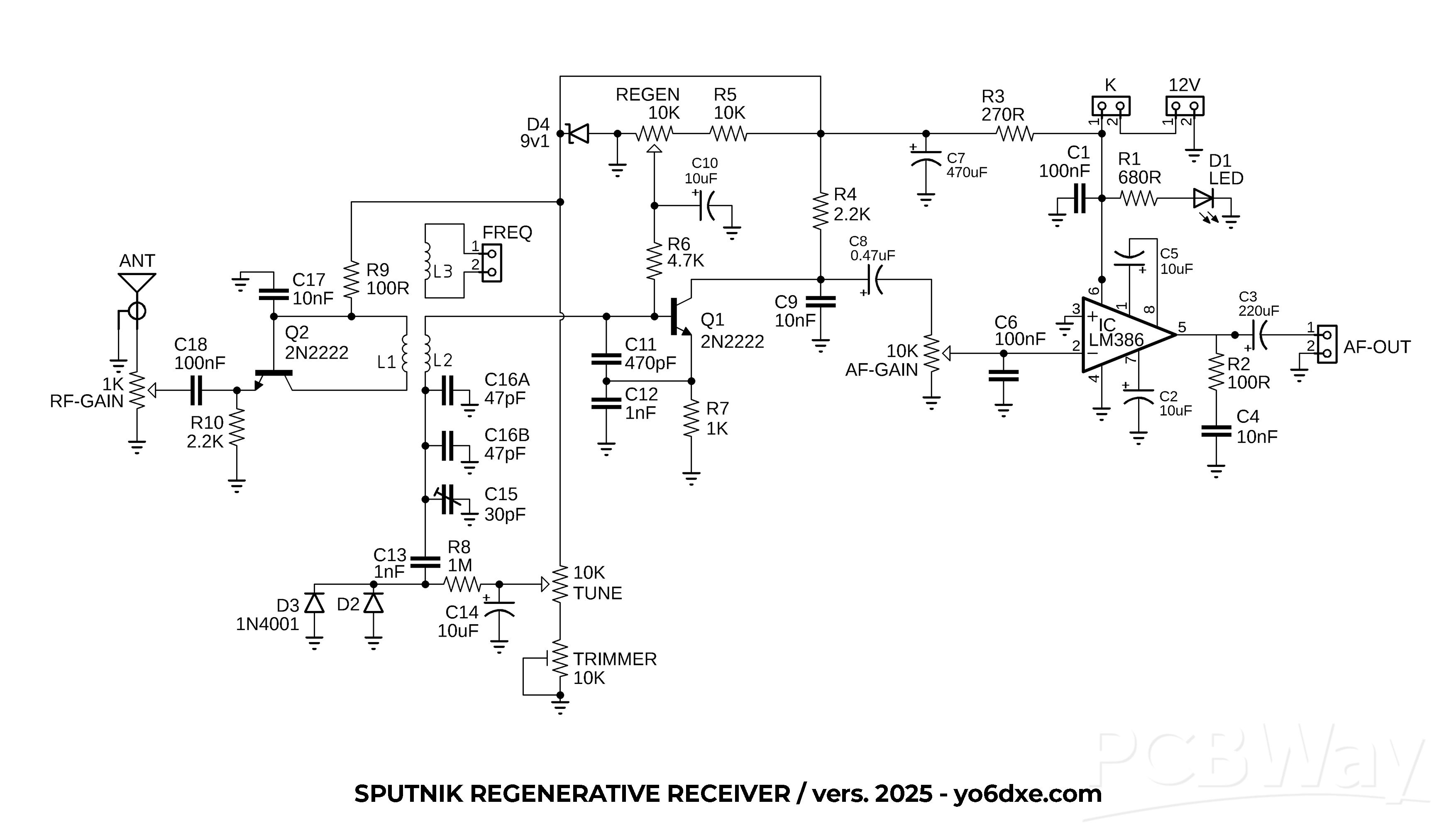

Sputnik Regenerative Receiver Schematic

Sputnik Regenerative Receiver Schematic.jpg

Sputnik Regenerative Receiver Schematic.jpg

Download BOM(Bill of materials)

Aug 29,2023

26,880 views

Sputnik Regenerative Receiver - SSB, CW, AM, FM

Sputnik regenerative receiver has decent receiving capabilities. It’s a simple regenerative receiver for the 40m band ( 2025 Update ).
