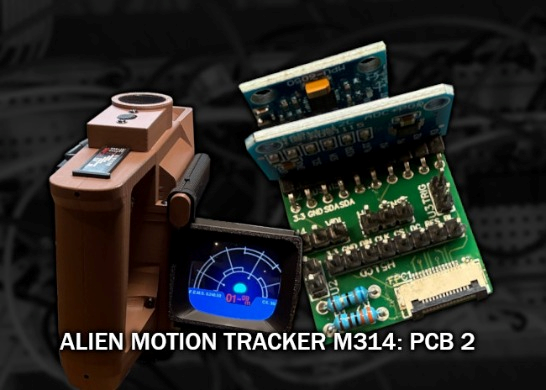

Over three videos I created a full qorking M314 Motion Tracker from the Aliens film. This tracker actually tracks movement and motion using the DreamRF Radio Hat for the Raspberry Pi.

This PCB is the SECOND of TWO required to build this project. This board is designed to allow easy connection of all of the other parts used by this project with easy connection to the raspberry pi PCB 1 via a simple FPC/FFC cable.

On this board you will find:

• FPC: A bottom-contact connector for a 0.5mm pitch ~100mm Reverse/B Type FPC/FFC Cable
• R1: 3.3k Resistor, 125mw should be fine.
• R2: 68Ω Resistor, 125mw should be fine.
• H1: Holes for mounting the MPU-6050 Breakout Board (must be mounted VERTICALLY)
• H2: Holes for mounting the ADS1115 Breakout Board (must be mounted VERTICALLY)
• H3: OPTIONAL Pin header for access to GPIO19. Not needed by this project, do not populate
• H4: Header for Volume Control Variable Resistor
• H5: Header for Waveshare ILI9341 240x320 Pixel LCD Display
• H6: Header for Sensativity Variable Resistor
• H7: Header for connecting Ultraviolet LEDs
• H8: Header for Trigger Switch
• A2/A3: DO NOT INSTALL HEADERS HERE! These are for you to solder your own wires to if you want to use these

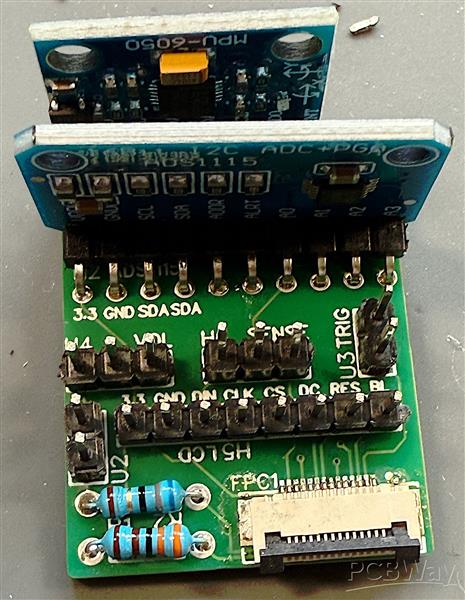

Fully populated and assembled it looks like this:

A full build guide can be found here: https://alien.robsmithdev.co.uk
