Raspberry Pi Pico 2 W with headersRaspberry Pi
|
x 1 | |
|
|
DB23 Male |
x 1 |
|
Raspberry Pi Pico SDKRaspberry Pi
|

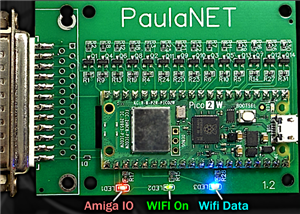

PaulaNET - Amiga Wifi Network Adapter
PaulaNET is a simple Wifi Adapter for the Amiga that connects via the Floppy Drive Port.
This is more suited to low-end Amigas although will work on all of them. Because the floppy drive communication all happens using DMA, this device can (currently) acheke around 43kbytes/second with very low CPU load.

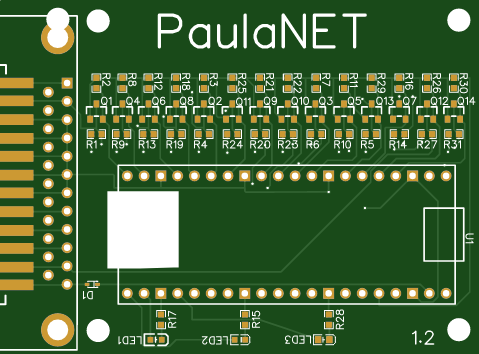

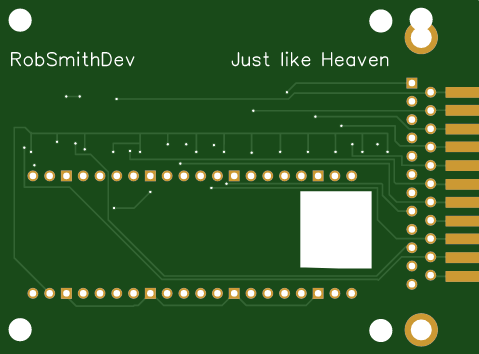

Notes: X2 OR DSUB1 should be fitted, not both. I recommend using a DB23 connector, pushed into the side of the board and soldered in place.
The Pi Pico must be a "Pico W" or "Pico 2 W" (Pico 2 W Recommended)
Firmware for the Pico can be obtained from https://github.com/RobSmithDev/PaulaNET
Video will be available from 31st May 2026 16:15 BST
