Alien Motion Tracker Pi PCB
Over three videos I created a full working M314 Motion Tracker from the Aliens film. This tracker actually tracks movement and motion using the DreamRF Radio Hat for the Raspberry Pi.
This PCB is one of TWO required to build this project. This board is designed to he soldered to the back of the raspberry pi, providing power and allowing connection of the second board.
On this board you will find:
- P1: Pin Header for connecting 5V and GND to
- FPC: A bottom-contact connector for a 0.5mm pitch ~100mm Reverse/B Type FPC/FFC Cable
- J1: Holes to solder directly to the back of the Pi with. There is no part assembled here by PCBWAY.
A full build guide can be found here: https://alien.robsmithdev.co.uk

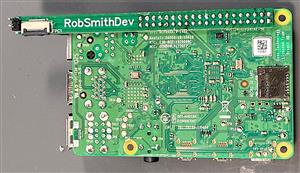

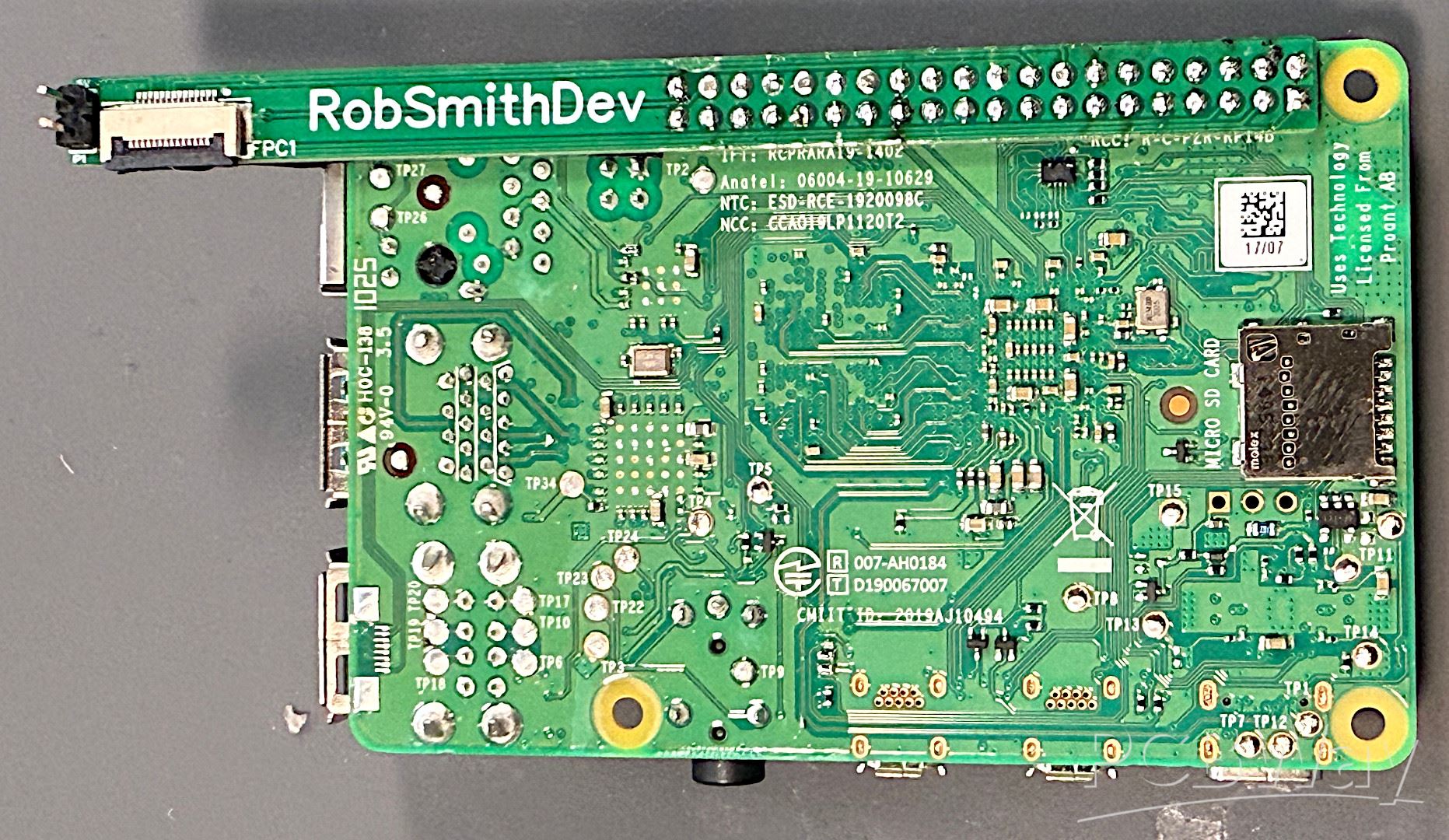

When fully assembled AND soldered to the back of the Raspberry Pi, it should look like this:
Alien Motion Tracker Pi PCB
