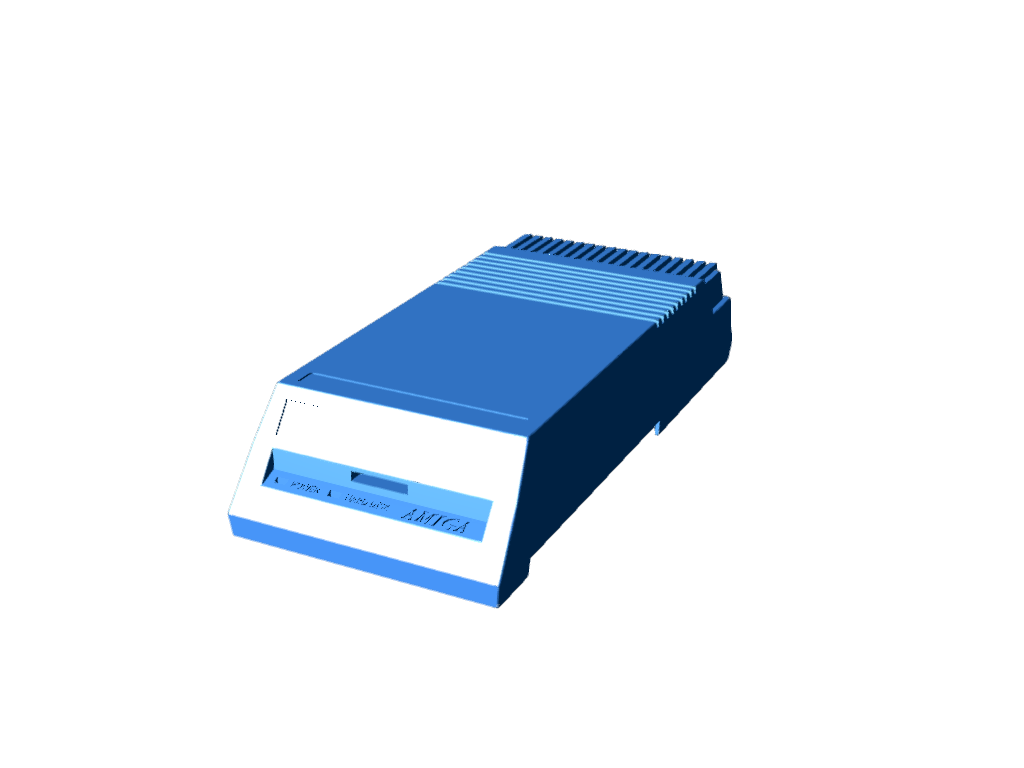

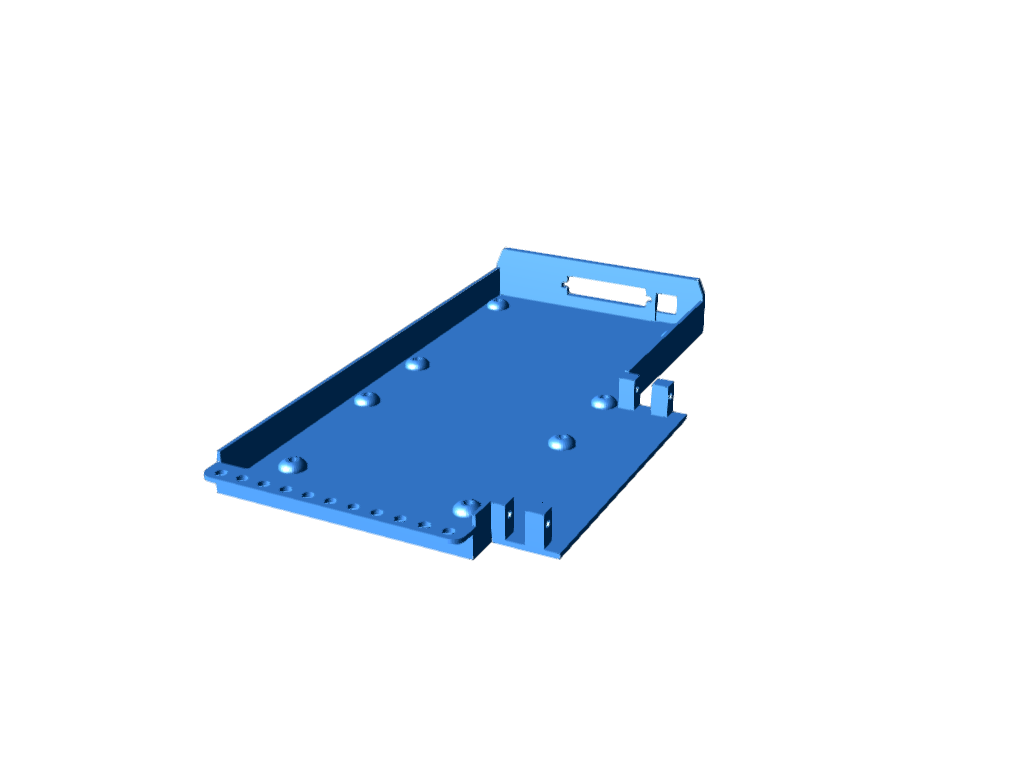

Amiga A590 Case

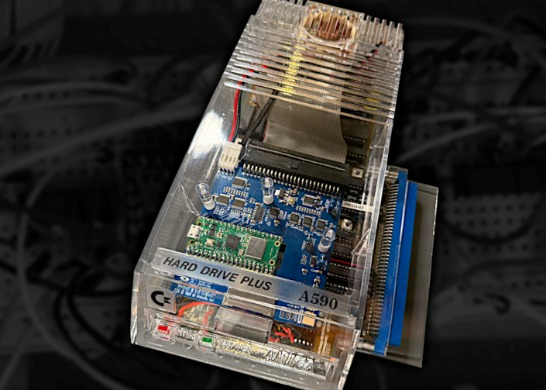

New Amiga A590 Case that also holds a BlueScsi V2 in the lid.
This was featured in This was featured in https://youtu.be/CD9_3nucjTI
I had this printed in Resin UTR-8100 (Transparent) with the Transparent (Spray Varnish) option
Other options are cheaper but that one is the most impressive.
The lid was Remixed from a design by Marcin Rönndahl
from https://grabcad.com/library/a590-top-casing-1
Note: This is designed for BlueScsiV2 2023.10a
TIP: I also used a fine drill to make the screw threads a little larger so they weren't stressed.
