68000 CPU Relocator / Pin Breakout

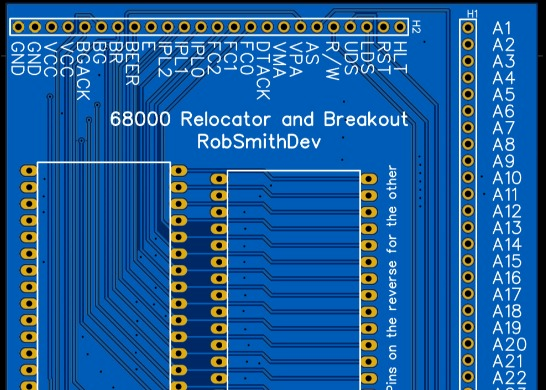

A simple breakout board you can use to monitor all of the signals from a 68000 CPU without paying lots of money for a suitable clamp.
You install a 64-pin IC socket into one of the 68000 outlines, and on the other side, install pin headers so it will "plug into" a 68000 CPU socket.
Make sure you connect the GND signals to your logic analyser. This, or many of them, joined together, is a suitable logic analyser.
You may optionally need to raise the board with some pin headers to increase it's distance from the main motherboard.
