MiSTer Floppy SMD Case

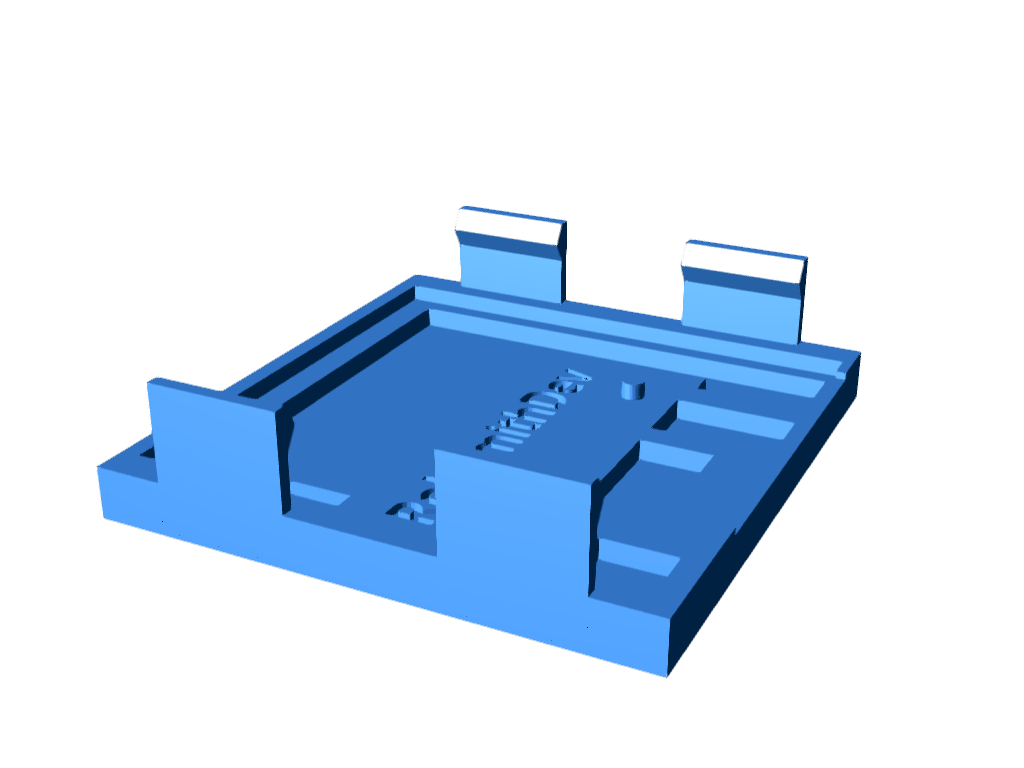

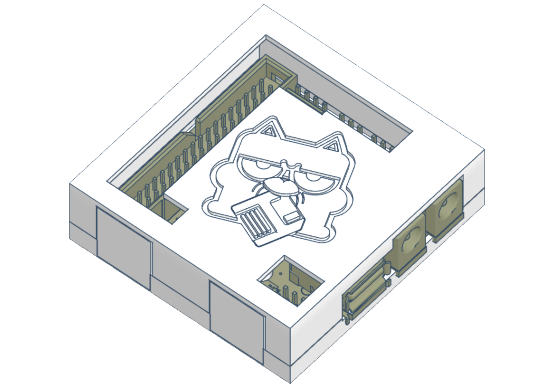

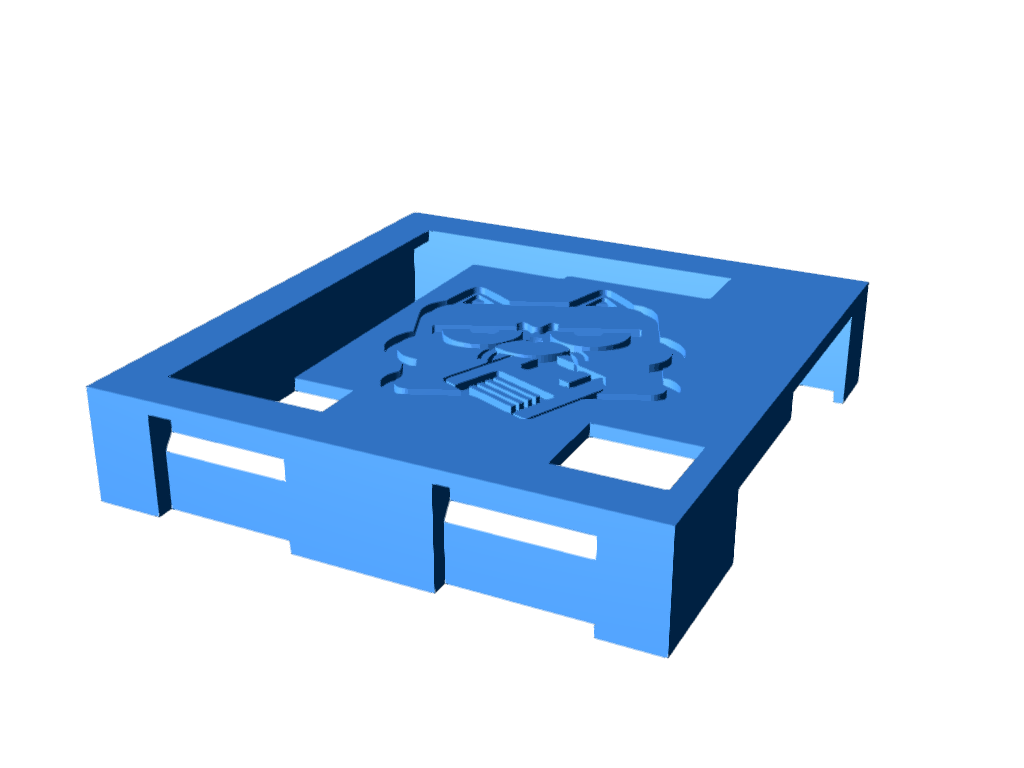

A simple case for the MiSTer Floppy SMD board. The board should tightly snap into the base, and the lid clip on.
I recommend setting all the jumpers first BEFORE assembling the case.
