Project Overview

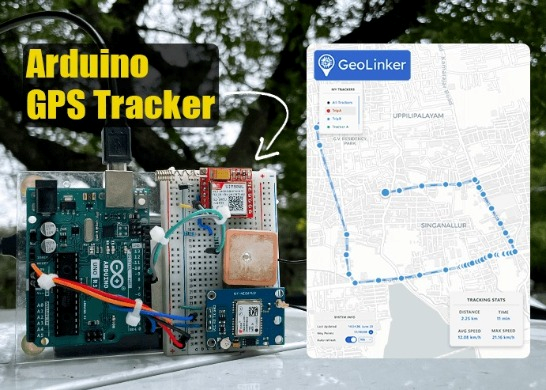

This in-depth tutorial illustrates how to develop an affordable real-time GPS tracking system with Arduino UNO R3, integrating the NEO-6M GPS module for satellite location and SIM800L GSM module for cellular data transfer. The project provides a full DIY substitute to commercial GPS trackers without monthly fees, yet with professional-level tracking features.

Key Technical Implementation

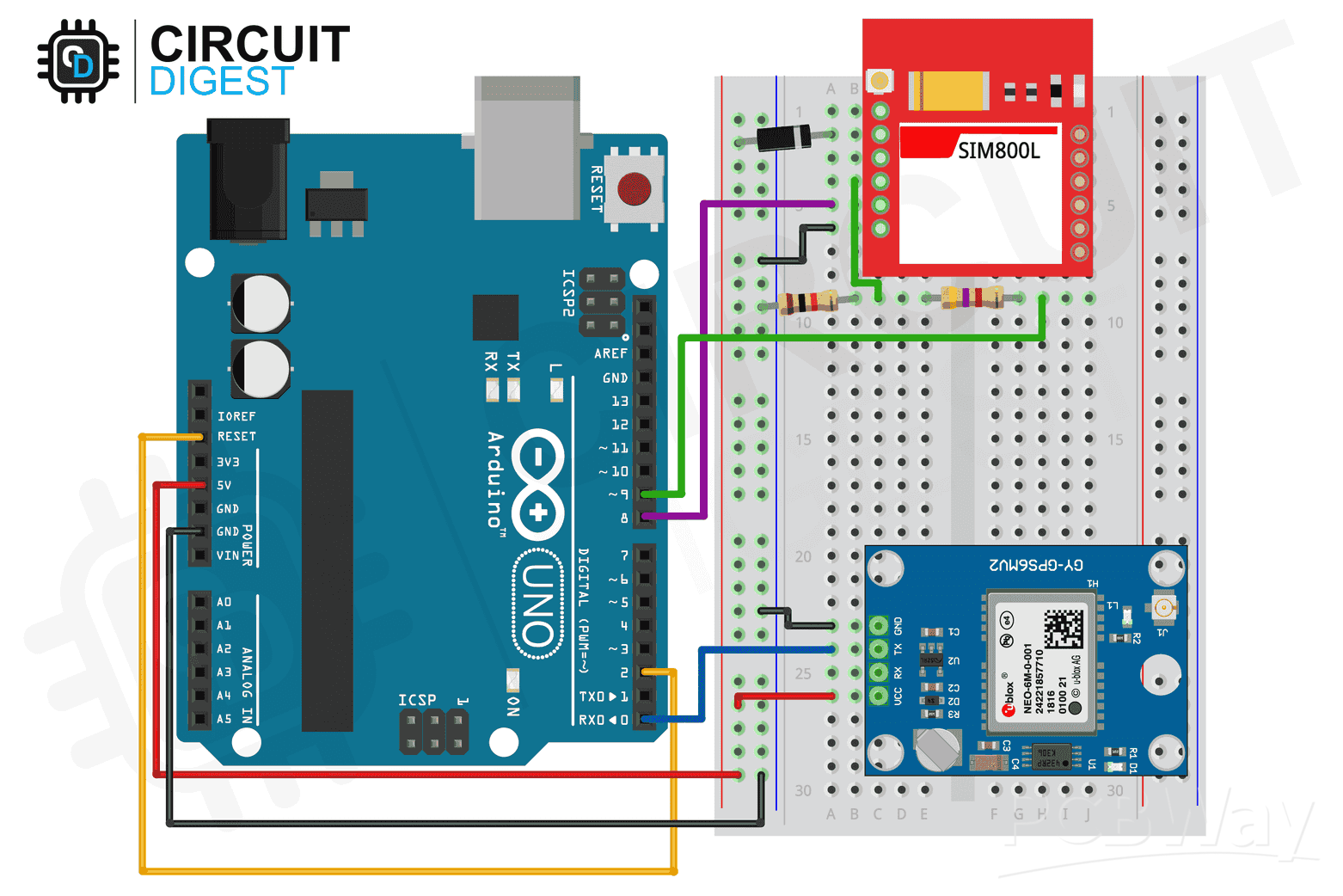

The system uses a memory-optimised architecture tailored to the 2KB RAM of Arduino UNO. A proprietary dual-mode switching mechanism via Pin 2 tied to the reset pin avoids memory corruption by toggling between GPS data reading and GSM transmit modes. The system uses voltage level shifting circuits for safeguarding the 3.3V SIM800L module against Arduino's 5V level logic, maintaining system dependability.

Core Components

Arduino UNO R3 -Central microcontroller

NEO-6M GPS Module - Satellite navigation

SIM800L GSM Module - Cellular network

Accessory components - Jumpers, breadboard, resistors

Total hardware (compared to $20-50/month for commercial trackers)

Software Architecture

The project is built on the GeoLinker Lite library, a dedicated Arduino library tuned for memory-limited boards. It performs GPS NMEA parsing, GSM AT commands, and cloud API interactions by reducing function calls. The system is integrated with the GeoLinker Cloud platform with a business-grade web dashboard to perform real-time tracking, historical analysis, and multi-device management.

Practical Features

Real-time tracking with 20-second update periods (configurable)

Sub-10-meter GPS accuracy via satellite triangulation

Worldwide 2G network compatibility (excluding 4G-only networks such as Jio)

Web-based dashboard from any device

Data export features in CSV format for analysis

Multi-device support with device identification

100,000 data points storage per free account

Applications & Use Cases

The tracker is used in vehicle monitoring, asset guarding, personal safety devices, fleet management, and IoT location services. The open-source methodology supports customisation to particular requirements while keeping costs low.

Technical Challenges Addressed

The tutorial provides comprehensive troubleshooting guidance covering power supply requirements (minimum 2A for SIM800L), programming procedures (disconnecting GPS during code upload), genuine Arduino board recommendations for reliable software serial communication, and network compatibility issues. For more technical information, visit the source code of the GPS Tracker using the Arduino Project.

Conclusion

This project successfully demonstrates that sophisticated GPS tracking systems can be built affordably using readily available components, providing complete data ownership and customisation flexibility while matching commercial tracker performance at a fraction of the ongoing cost.
