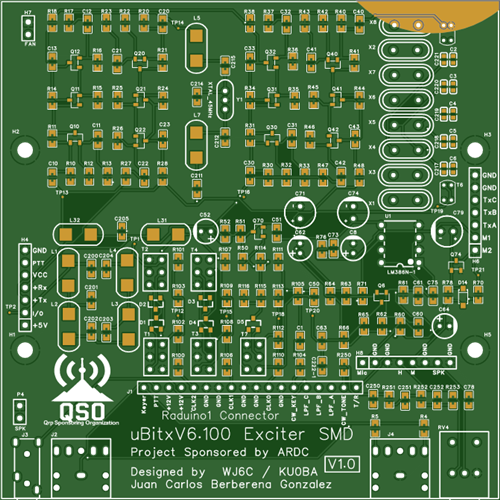

Microbit V6.100 Exciter SMD — Open Hardware QRP Project

The Microbit V6.100 Exciter SMD is an open-hardware QRP transceiver exciter designed for amateur radio experimentation, electronics education, and community-driven innovation.

Developed by Qrp Sponsoring Organization (QSO), with support from ARDC, this project aims to make radio construction more accessible through modern SMD technology and an open, modular design approach.

Download the Gerber files and build your own PCB! Radio amateurs and electronics enthusiasts are welcome to manufacture the board, explore the design, experiment with the hardware, and share their experiences with the community.

The exciter is designed to work with a Raduino-style controller and a separate power amplifier (PA), providing a foundation for a modular QRP transceiver project.

The project is released under the CERN Open Hardware Licence Version 2 — Permissive (CERN-OHL-P-2.0). You may use, study, modify, manufacture, and redistribute the design, including for commercial purposes, subject to the licence terms and applicable notices.

Our mission is to encourage open collaboration, hands-on learning, affordable experimentation, and continuous improvement in amateur radio.

Open hardware. Build it. Learn from it. Improve it. Share it.

73 de WJ6C / KU0BA

Qrp Sponsoring Organization (QSO)
