uBitxV6_clone

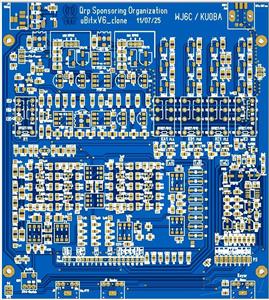

uBitx V6 Clone – Power Amplifier & Exciter...
I’m recreating the original uBitx V6 by Ashhar Farhan
For anyone who loves homebrewing radios, I strongly recommend giving it a try.
This schematic corresponds to the Power Amplifier & Exciter section
It’s part of a larger effort to better understand each stage and make small educational improvements for the QRP community.
Keep building, keep experimenting, and remember — the best way to learn RF is by soldering and testing!
For more information and update
https://www.facebook.com/groups/QrpCuba
https://www.facebook.com/groups/ubitxv6
I will share some kits of this project and other under my new "Non Profit" organization.
"QSO"_Qrp Sponsoring Organization_
note:
I am still waiting for the IRS granted Tax Exemption as 501(c)(3) Non Profit Organization.
uBitxV6_clone
