Z80Bus Front panel

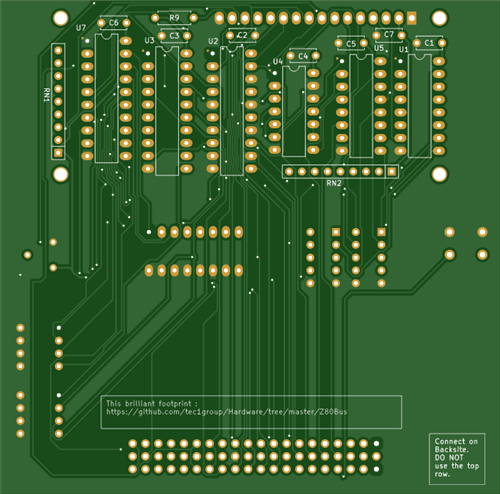

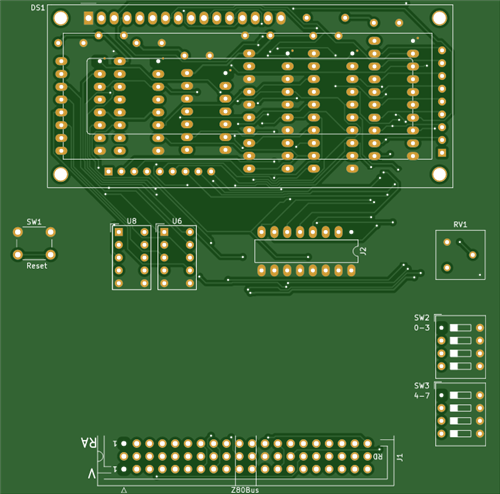

Z80Bus frontpanel. Behind it you can connect everything using this clever connector footprint (https://github.com/tec1group/Hardware/tree/master/Z80Bus)
Want it as back, use the top and middle row, want it in front use the middle and bottom row.
J2 is a CC ledbar connected to $00 for boot up diags from romWBW.

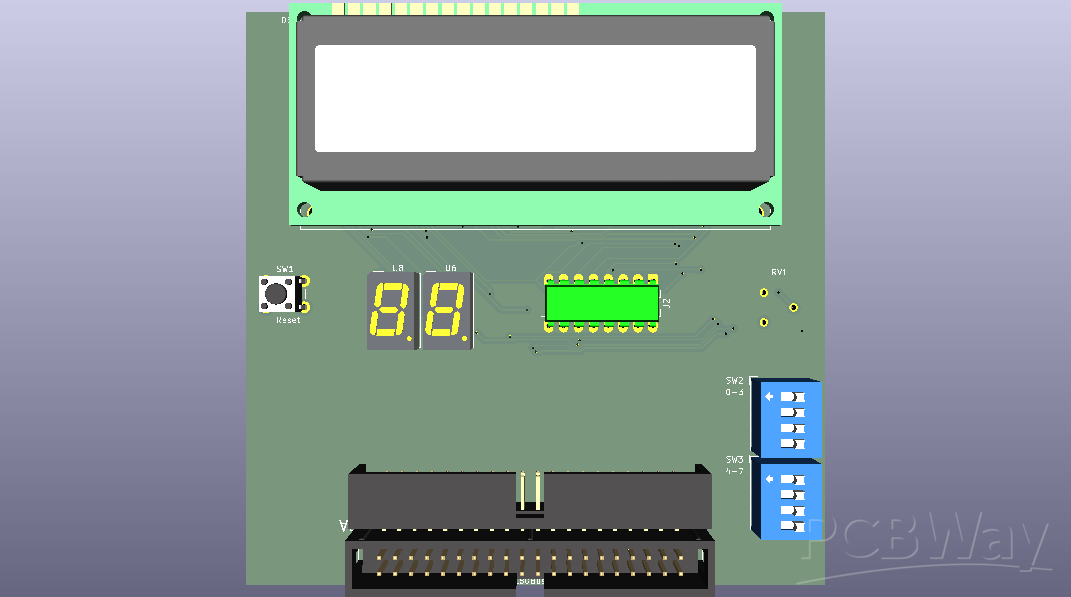

The 2 7-segment displays IO address, if the systems hangs it shows the last address the Z80 used.
LCD display IO can be set with the dip switches.
