Z80Bus CF / CH376 / DS1302

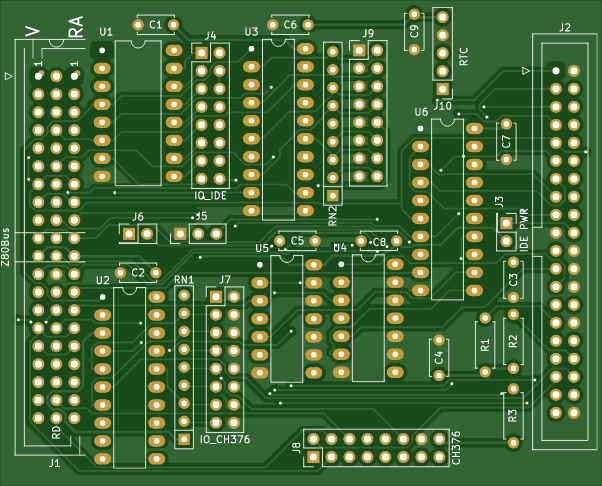

Z80Bus module for CF-IDE/ CH376 / DS1302
This storage module gives you 8-bit CF-Card access.
J4 selects your IO Address (connect only 1)
The CH376 gives access to USB stick. The CH376 should also give you USB keyboard etc but that part I could not get working yet, maybe I need an other brand of CH376.
J7 sets your base IO Address using multiple jumpers. With jumper it is logic 0
The DS1302 gives you a real time clock
J9 sets your IO Address using multiple jumpers. With jumper it is logic 0
I picked the wrong footprint for U1, If you bend one row of the legs 90 degrees it will fit.
