Tools, APP Software Used etc.
|
KiCADKicad
|
Description
Z80Bus printer with fifo Prototype

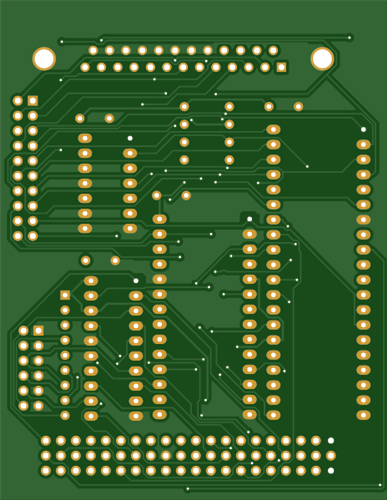

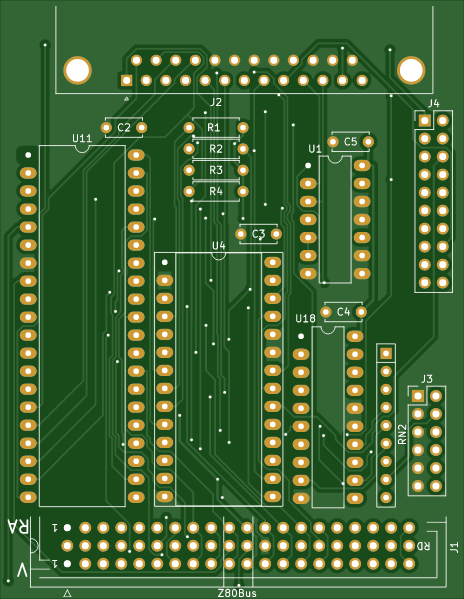

Z80Bus module for centronics printer.
Module uses Z80 FIFO, Z08060 to buffer printer data.
J3 to select IO Address of the 82C55
J4 if you don't have a Z80 fifo chip you can bridge the pads
Jun 01,2026
12 views
Z80Bus printer with fifo Prototype
Z80Bus printer module
12
0
0
Published: Jun 01,2026
Standard PCB
Download Gerber file 1
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2026/06/01 (GMT+8)
File update record
2026-06-0121:56:58
Gerber file is updated.
2026-06-0121:33:04
Parts List (BOM) is updated.
2026-06-0121:33:04
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
